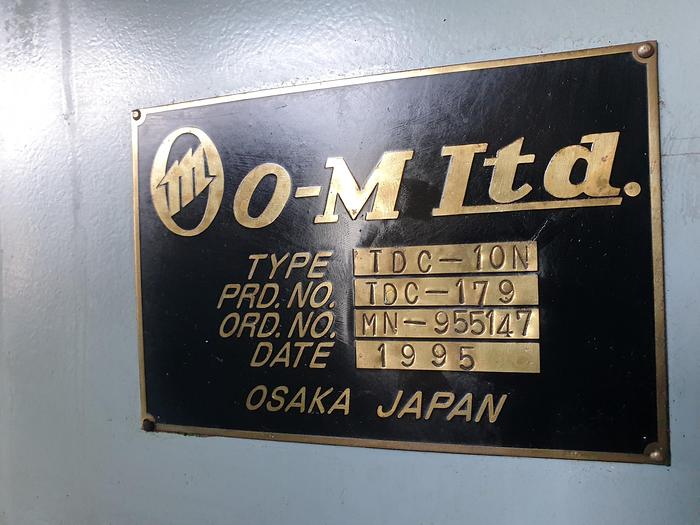

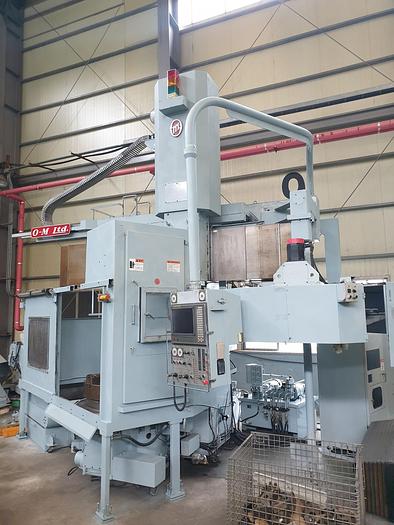

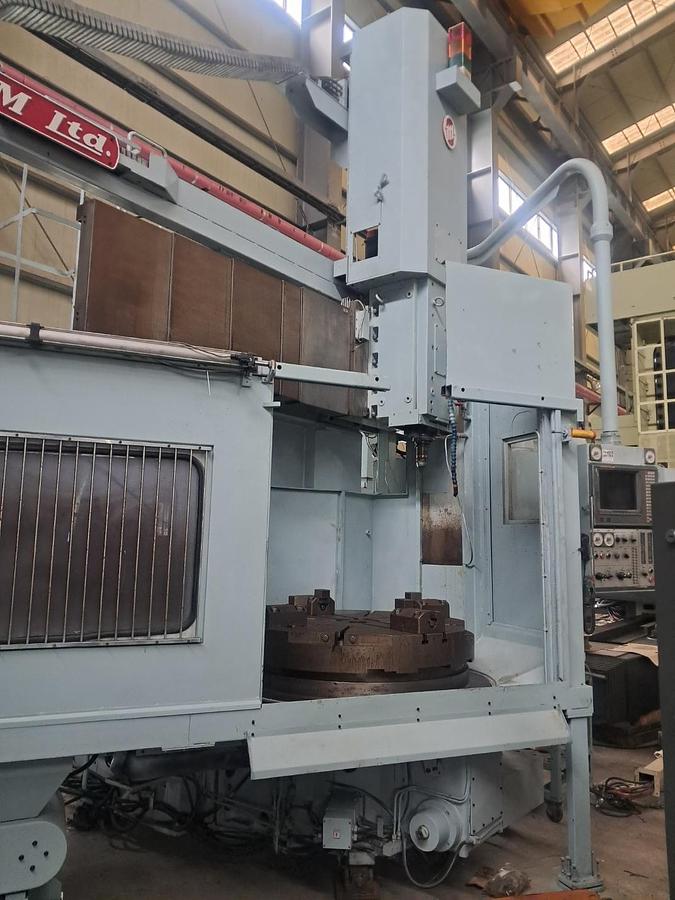

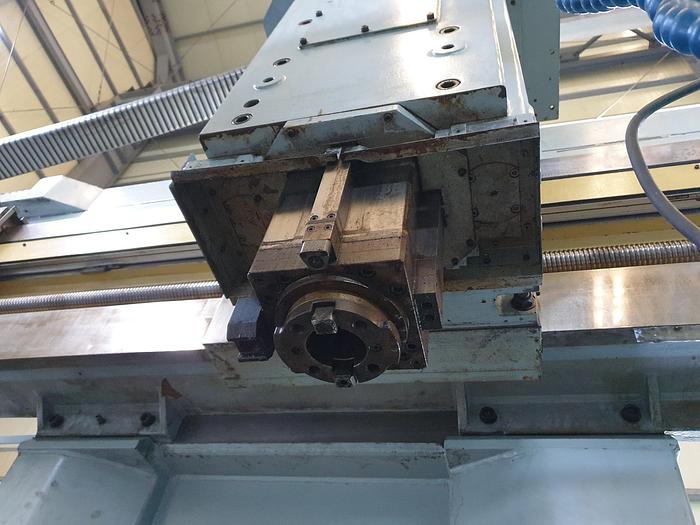

Lathe Vertical Turning CNC O-M Ltd TDC-10N

CNC VTL with C-axis (Milling)

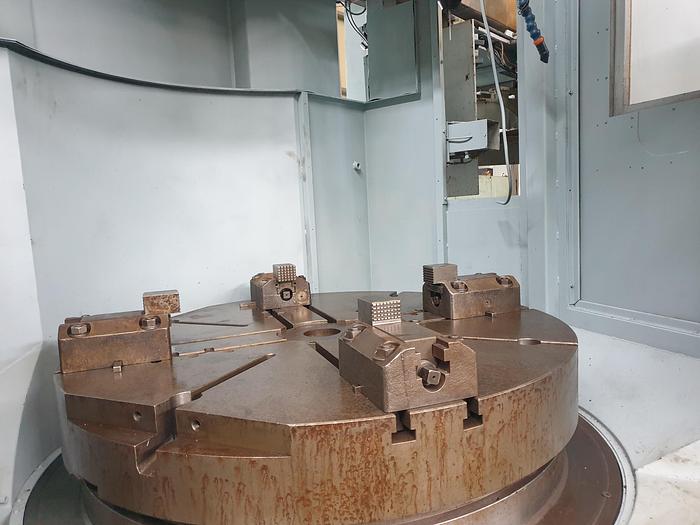

Table dia. : 1100 mm,

Max. table load : 1000 kg,

Table speed : 3-425 rpm,

Max. Swing dia. : 1100 mm,

Max. Cutting D. : 1100 mm,

Max. Cutting H. : 910 mm,

Z (ram up-down) : 600 mm,

X (ram L-R) : -600 to +735 mm,

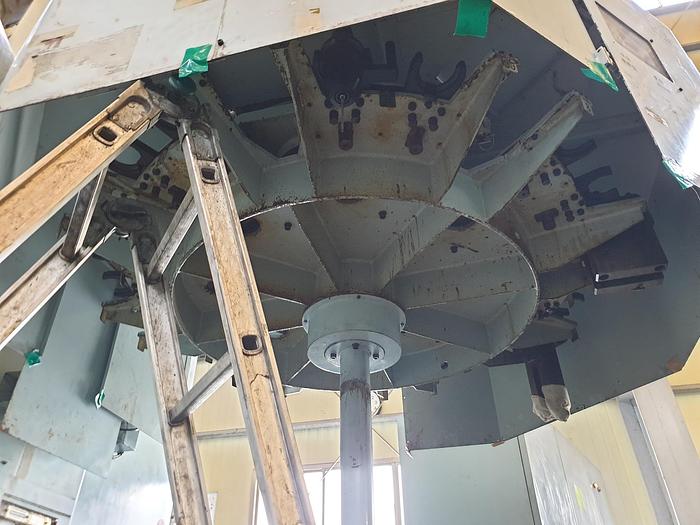

ATC :

Cutting : 8 tools,

Milling : 16 tools,

Milling Spindle : 2-1500 rpm

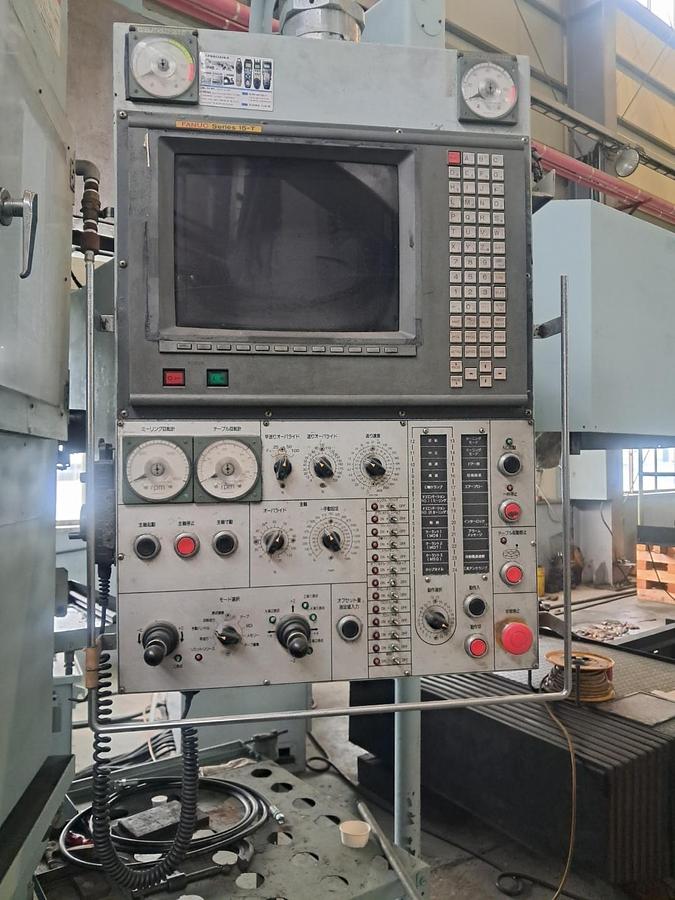

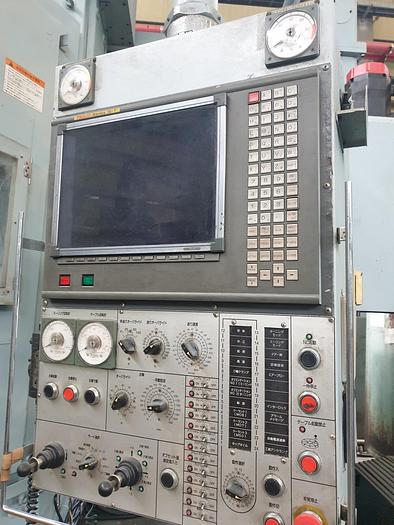

Control : Fanuc 15T.
