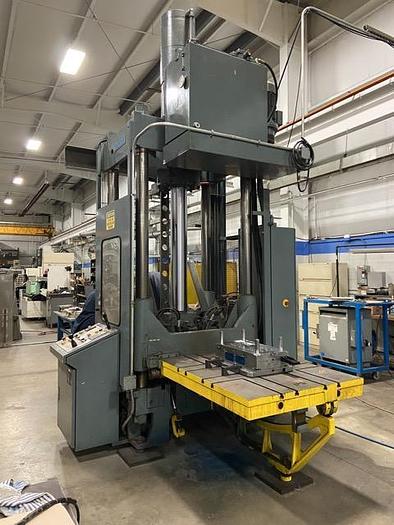

Press Die Spotting Hydraulic TUS 100-100

Hydraulic 4 Post Spotting Tryout Press

Catalog Specifications :

Pressing Force : 112 US tons (1000 kN)

Stroke : 1180 mm,

Daylight Opening : 1180 mm,

Table Surface Area : 1278 x 984 mm,

Ram Surface Area : 1278 x 984 mm,

Distance Between Columns (F-B) : 1025 mm,

Max Capacity of Swivel Ram Plate : 8992#,

Die Weight on Table Max : 17,985#,

Oil Volume : 52 gallon.

Equipped With :

Swing Down Ram: 180º

Slide Out Bolster

Wax Injection - stroke of injection nozzle : 68.75 mm,

Contents of container : 5 liters

Lower Ejector - stroke of ejector : 118 mm.
