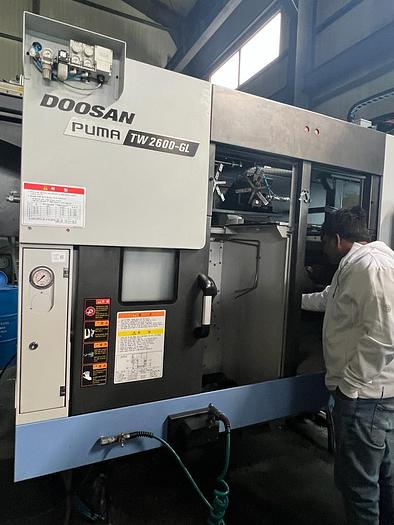

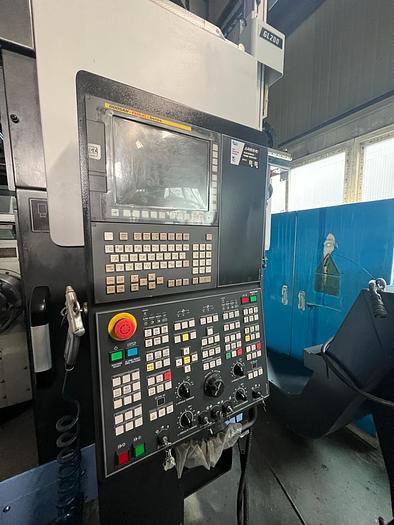

Twin Spindle CNC Turning Centre Doosan PUMATW2600-GL

Max. turning diameter (Max. / Min.) : Ø200 / Ø50 mm,

Max. turning length : 90 / 165 mm,

Chuck size : Ø255 mm,

Travel distance (X axis x Z axis) : 180 x 190 mm,

Rapid traverse rate (X axis x Z axis) : 24000 mm,

Max. spindle speed : 3500 r/min,

Max. spindle power (15 min/cont.) : 18.5/15 (24.8/20.1) kW,

Max. spindle torque : 404 (298.2) N·m,

Distance between left-right spindle centers : 460 mm,

Spindle bearing size (front face I/D) : 110 mm,

Max. boring bar size : 40 mm,

Length : 4840 mm (A3 type),

Width : 2083 mm (A3 type),

Height (Max. / Min.) : 3393 / 3160 mm,

Weight :7.8 tons,

Control : CNC system.
