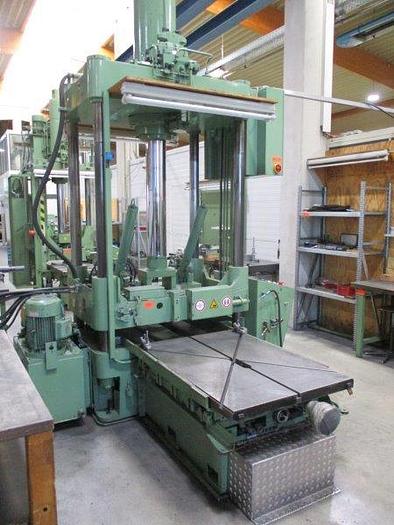

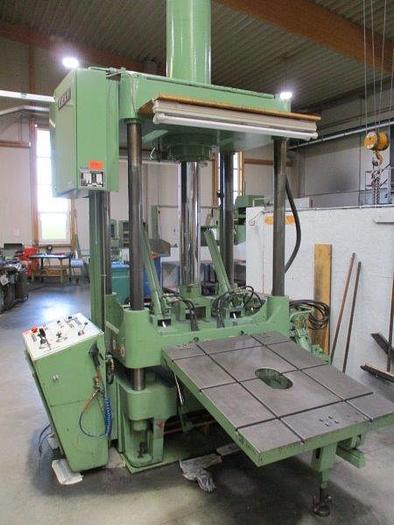

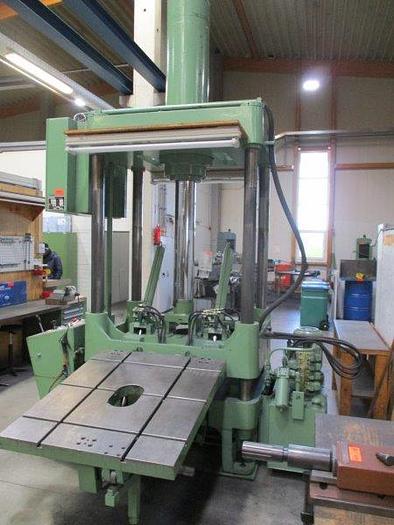

Press Die Spotting Hydraulic REIS TUS 115 OK 100

Capacity : 100 tons,

Column passage : 1150 mm,

Drive power: 7,5 kW,

(tilting-) Table : 900 x 1280 mm,

Ram 1000 x 1200 mm,

Installation height : 1030 mm,

Ram stroke approx. :1000 mm,

Space requirement approx. 4 x 3 x 4.1 m

Transport dimensions approx. 7 loading metres, width 2.20 / height 1.70

Weight approx. : 11 tons.
