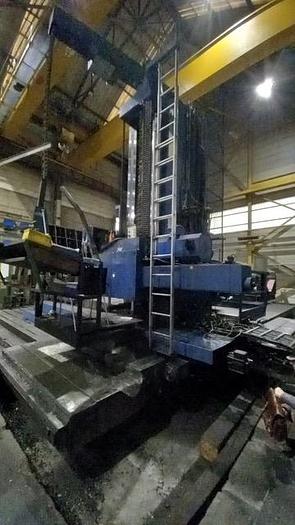

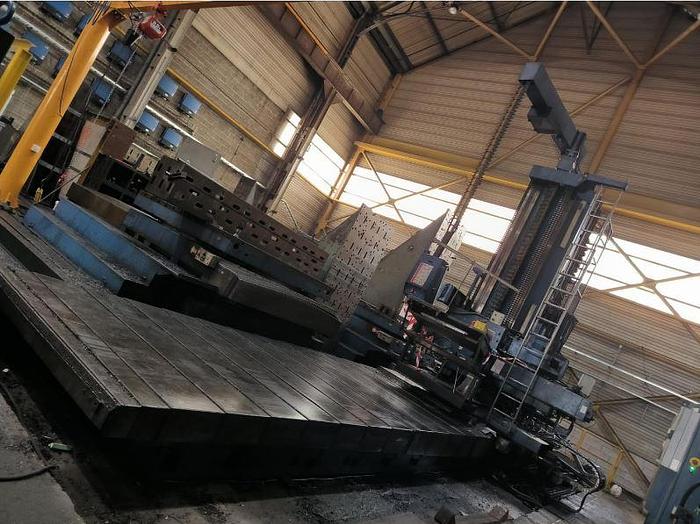

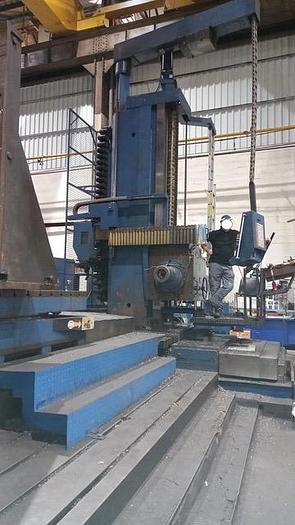

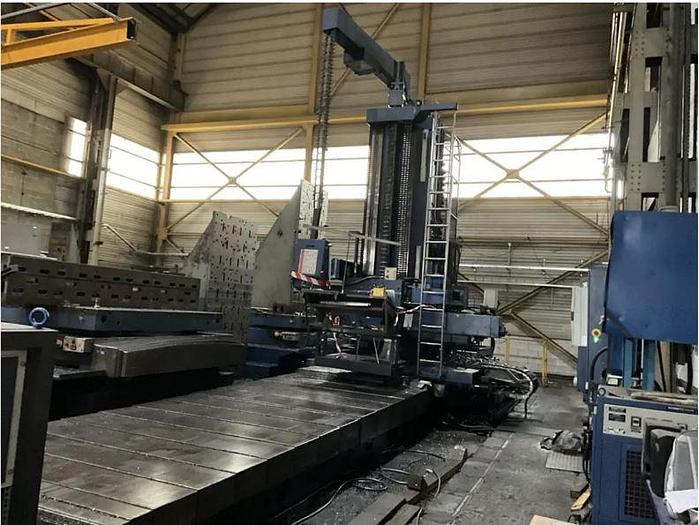

Borer Horizontal Floor Type CNC Pegard

Spindle dia : 160 mm,

X travel : 8900 mm,

Y travel : 2520 mm,

Spindle travel : 1200 mm,

Cross column travel (Saddle) : 600 mm,

Spindle speed : 5-1000 rpm,

Main motor power : 37 kW,

Nr 2 CNC rotary table : 2380 x 2380 mm,

Cross travel, each table : 1500 mm,

Table load, each table : 30 tons,

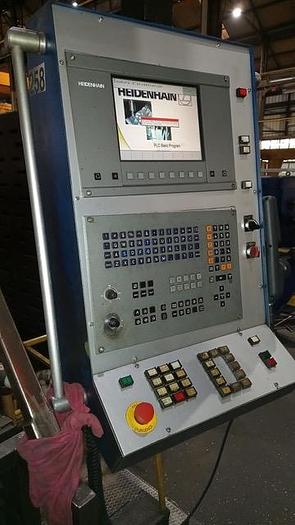

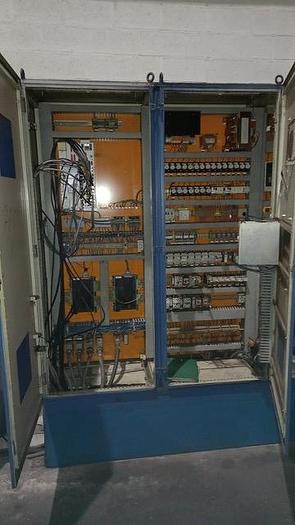

CNC Controller- Heidenhain iTNC530

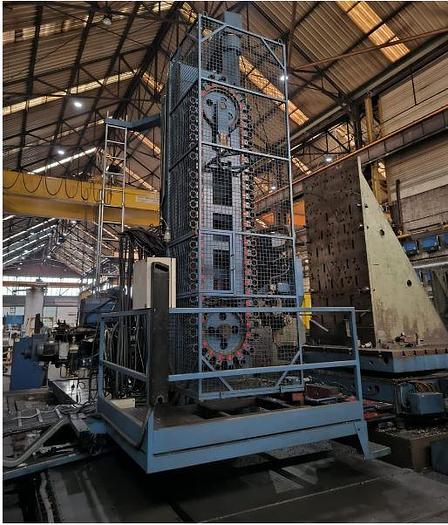

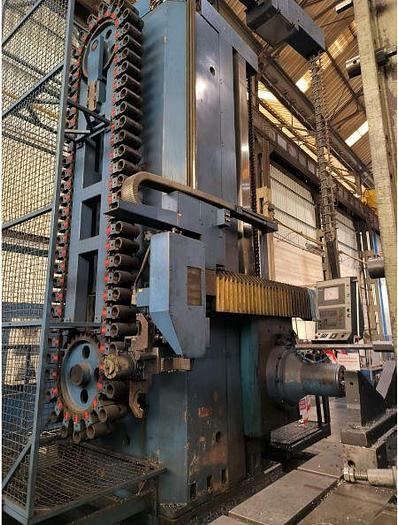

Tool magazine 60 positions,

Nr. 2 CNC rotary table, could be used separate or synchronized,

D'Andrea CNC facing head (max. boring dia 1600 mm),

Retrofit 1993 / 2002 (iTNC.530 Heidenhain control).

ACCESSORIES (RIGHT ANGLE HEAD)

Make : Pegard

- Min passing height : 500 mm & Width : 530 mm

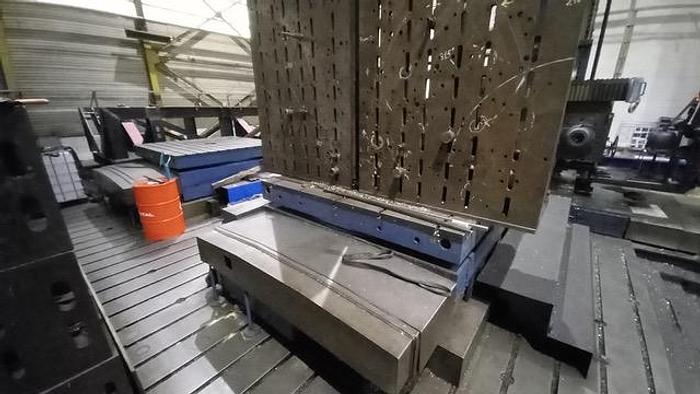

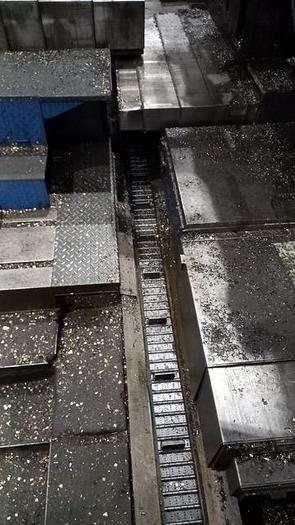

Floor plates :

Length x width : 6 x 2.6 meter,

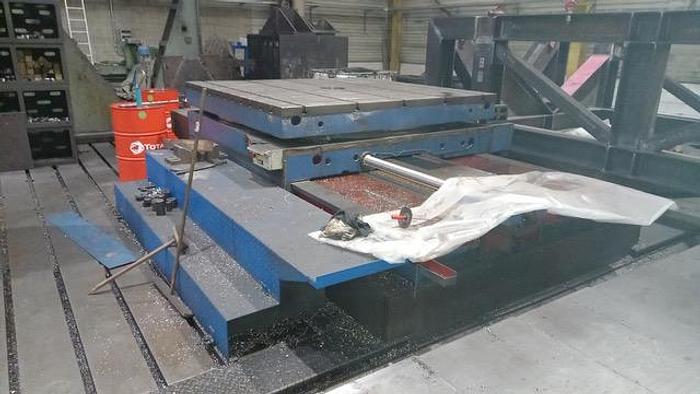

ROTARY TABLE

30 Ton L : 2400 mm x W : 2400 mm x H : 1000 mm (cross trav. 1500 mm)
