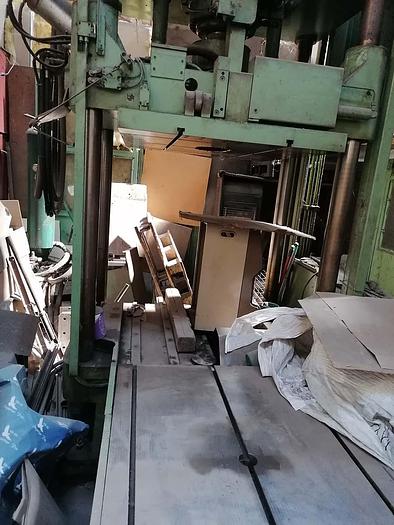

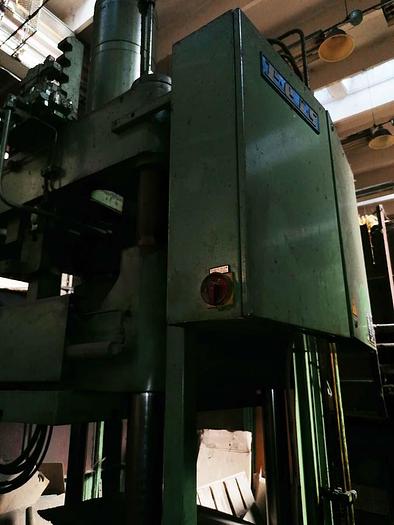

Press Die Spotting Hydraulic Reis TUS 115 OK 100

Capacity : 100 tons,

Stroke : 1035 mm,

Table surface area : 890 x 1280 mm,

Ram surface : 1000 x 1200 mm,

Distance between columns : 1250 mm,

Distance table/ram, max. stroke up, adjustment up : 1035 mm,

Side window : 700 mm,

Table height over floor : 630 mm,

Max. tool weight : 7 tons,

Max. capacity of swivelling ram plate : 3.5 tons,

Oil volume : 180 l,

Power capacity : 9,0 kW,

Dimensions (W x D x H) : 2100 x 3800 x 3900 mm,

Weight : 11 tons.

Swivelling ram

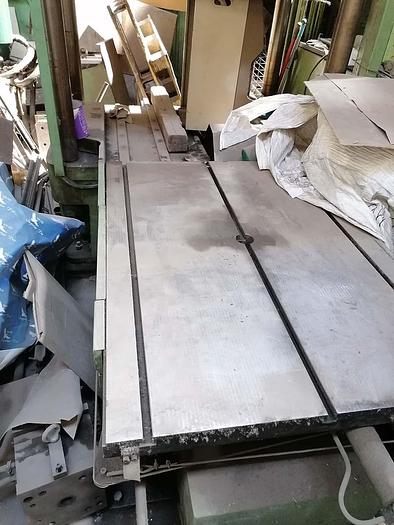

Movable table

Table - tiltable

Ram interlocking hydraulic

Ejector in table.
