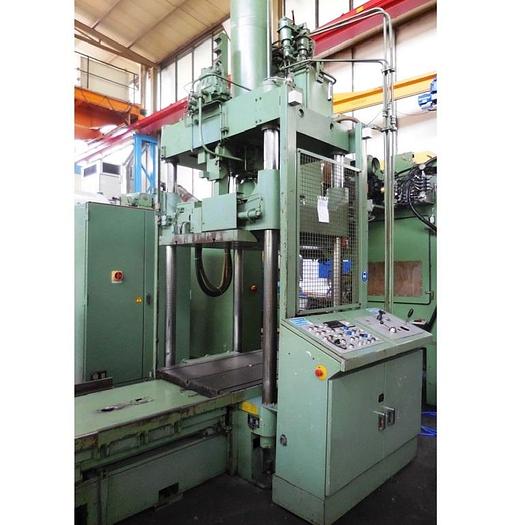

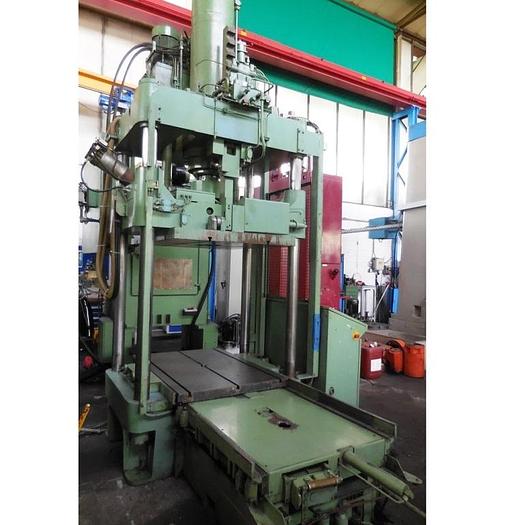

100 tons Press Die Spotting Hydraulic Reis TUS 115 OK 100

Capacity : 100 tons,

Stroke : 1035 mm,

Distance between Columns : 1250 mm,

Side Window : 700 mm,

Daylight Table - Ram (Stroke up) : 1035 mm,

Surface of Table : 1280 x 890 mm,

Table Height above Floor : 630 mm,

Surface of Ram : 1200 x 1000 mm,

Weight of Tool max. : 7 tons,

Weight of Upper Tool max. : 350 tons,

Oil Volume : 180 l,

Dimensions (W x D x H) : 2100 x 3800 x 3900 mm

Power Requirement : 9,0 kW

Weight : 11 tons.
