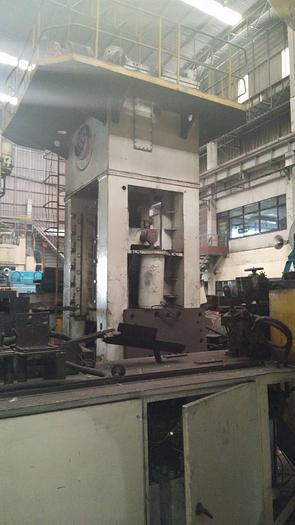

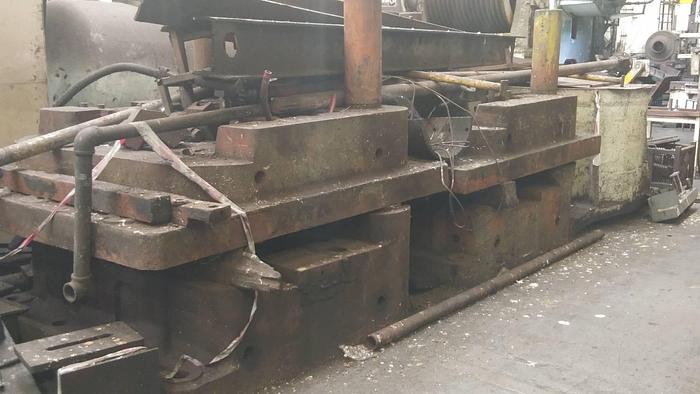

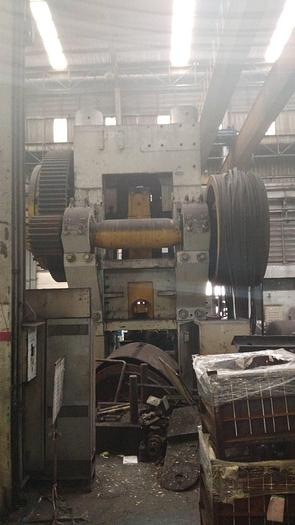

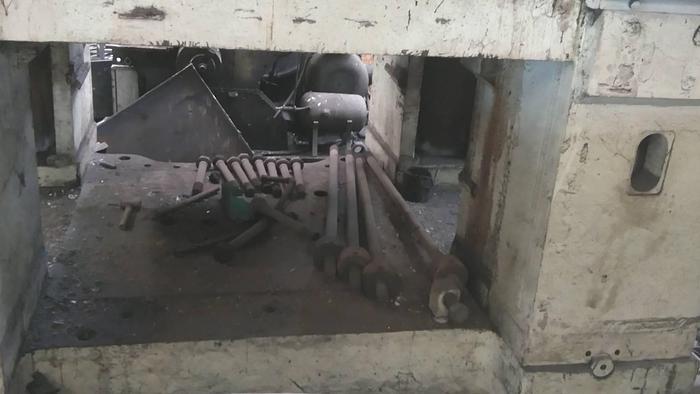

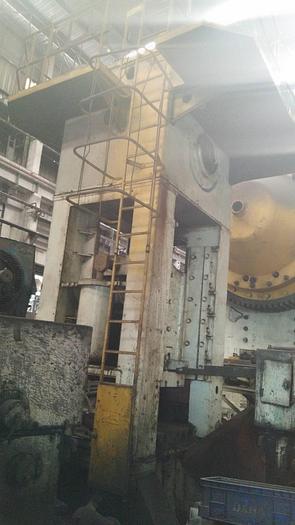

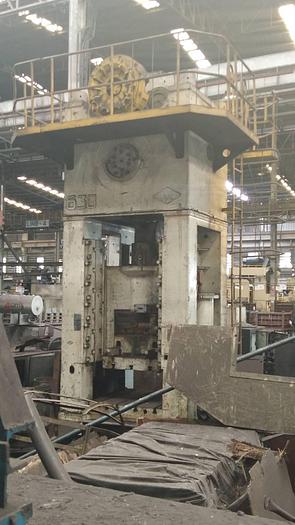

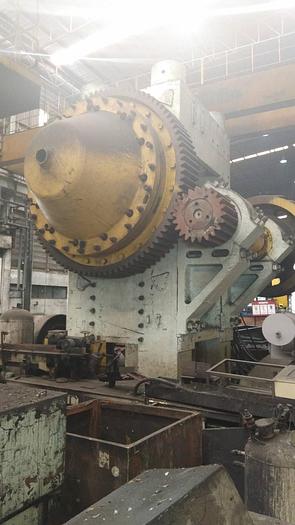

Hot Forging Line KB8048 NKMZ Kramatorsk

Sold

Specifications

ManufacturerNKMZ Kramatorsk
ModelKB8048
ConditionUsed
Stock NumberMA2145
Item conditionGood Condition
Capacity tons6300

Description

Capacity : 6300 tons,

Ram Stroke: 10 mm

Shut Height, Ram @ BDC : 1,350 mm,

Number of Strokes, Min Continuous Model (SPM): 11,40,

Maximum Permissible Working Stroke : 460 mm,

Wedge Adjustment : 10 mm,

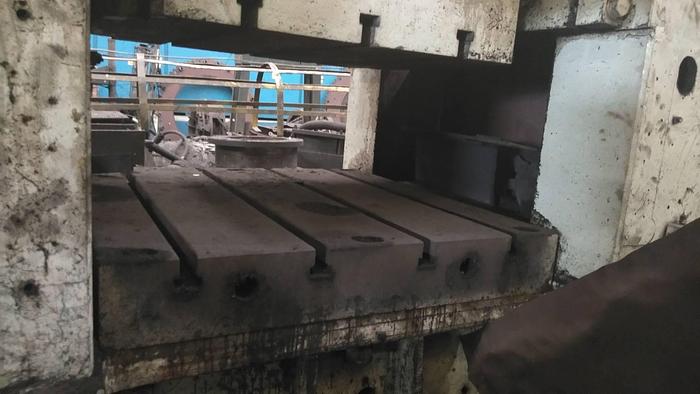

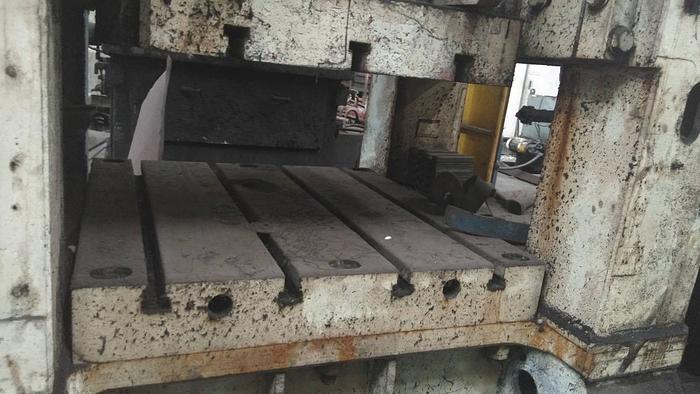

Bed Dimensions (L to R x F to B) : 2100 x 1950 mm,

Ram Dimensions (L to R x F to B) : 1900 x 1680 mm,

Upper Ejector Type: Mechanical

Upper Ejector Capacity : 120 Kn,

Upper Ejector Stroke : 30 mm,

Bottom Ejector Type: Mechanical

Bottom Ejector Capacity : 500 Kn,

Bottom Ejector Stroke : 20 mm,

Dimensions : (W x D x H) : 7970 x 5760 mm,

Electrics : Main Drive Motor : 320 Kw,

Motor RPM : 750,

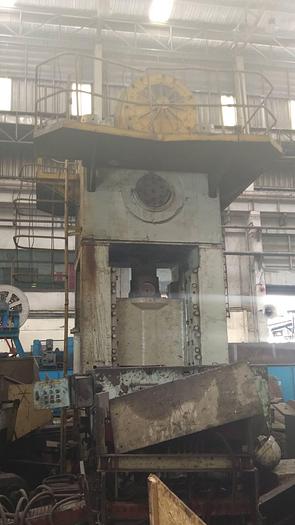

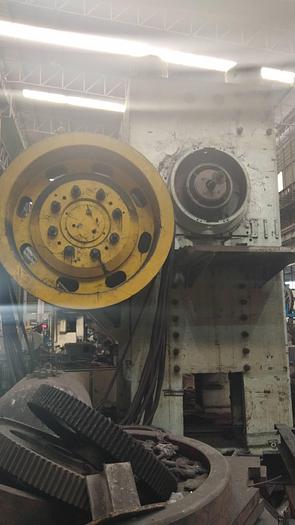

Trimming Press :

Make : Voronezh,

Model : K9538,

Year: 1977,

Capacity : 630 tons,

Shut Height, Ram @ BDC: 750 mm,

Number of Strokes, Min Continuous Model (SPM): 25,

Maximum Permissible Working Stroke: 400 mm,

Bolster Plate to Ram Adjustable : 180 mm,

Bed Dimensions (L to R x F to B) : 1250 x 1250 mm,

Dimensions of Press (W x D x H): 3650 x 3680 x 6370 mm,

Main Motor Drive : 56 Kw,

Total Weight of Press 630T : 57.5 tons,

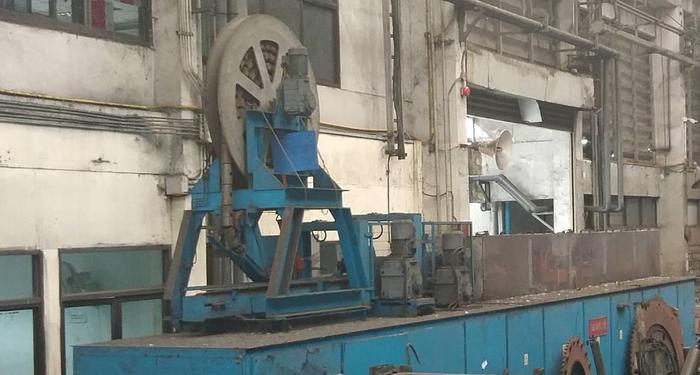

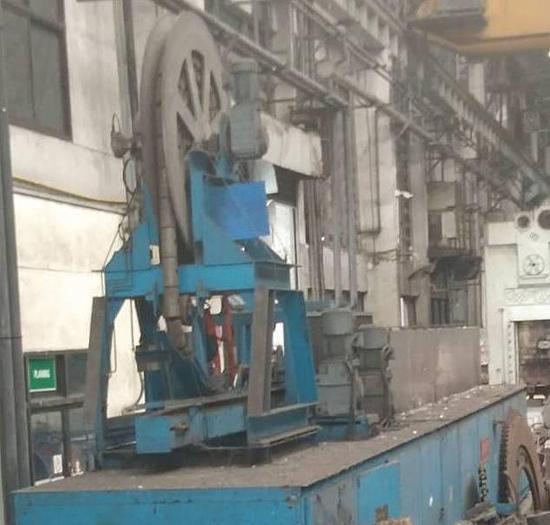

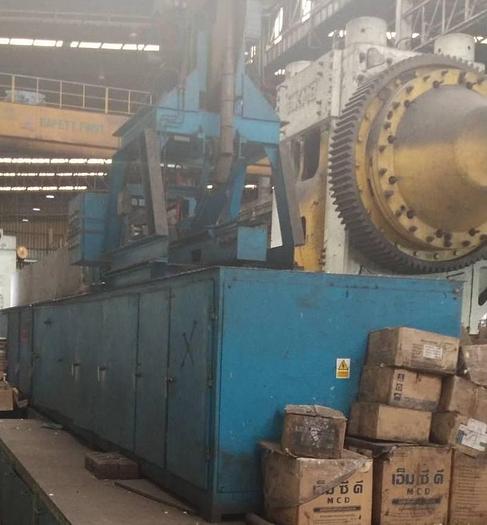

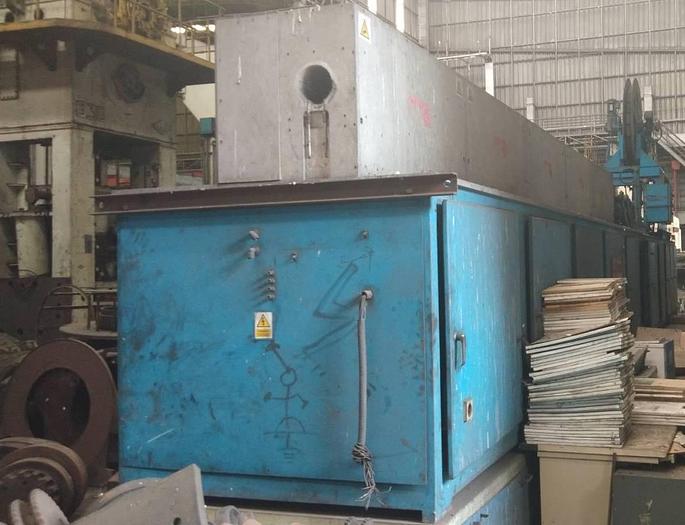

Induction Billet Heater

Make : Radyne Newelco,

Model A057,

Year: 2005,

Capacity : 2250 Kw

Frequency : 1 KHz,

Pulse : 12,

Power Output : 2x660V, 3Phase, 50Hz,

Supply System : Conveyor Pusher,

Coil Set Rank : 80-120 mm,

Working Billet Temperature (*C): 1250,

Coil Empty System : Automatic Coil Emptying,

Billet Temperature Control: 3 Ways Accept/Reject,

PLC Model: ALB-SCL-503,

Display: HDMI Panel Control,

Infared Pryrometer (Min to Max) (*C) : 600/1600.
