Nut Former Nedschroef MW53

Price

Contact us for price

orCall +919920651051

Specifications

ManufacturerNedschroef
ModelMW53
Year1996
ConditionUsed
Stock NumberMA2153
Item conditionGood condition
Capacity tons0

Description

Hot Nut Former

Nominal range : M20-M33 7/8” – 1-3/8”

Max. product height rotating transfer : 45 mm,

Min. product height rotating transfer : 13 mm,

Max. width across flats : 53 mm,

Max. across flats square nuts : 41 mm,

Max. bar diameter raw material : 44 mm,

Max. head dia : 55 mm,

Max. cut-off length : 65 mm,

Min. cut-off length : 14 mm,

Die dia : 100 mm,

Height of dies : 90 mm,

Feed roller dia : 180 mm,

Center distance between dies : 120 mm, 4-3/4”

Max. strokes/minute : 150,

Forging pressure : 1300 kN /130 tons,

Max. bar dia : 44 mm,

Floor space : 4800 x 2800 mm,

Main drive : 65kw,

Weight: 22 tons.


Includes:

1. MW53 capable to make hexagon nuts from M20 to M36 as well as flange nuts.

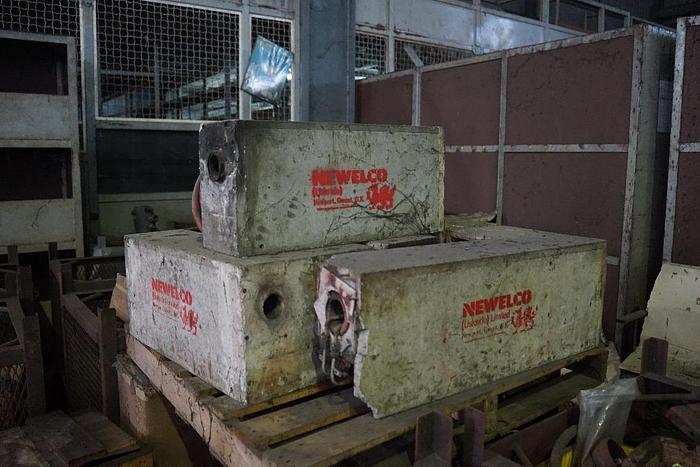

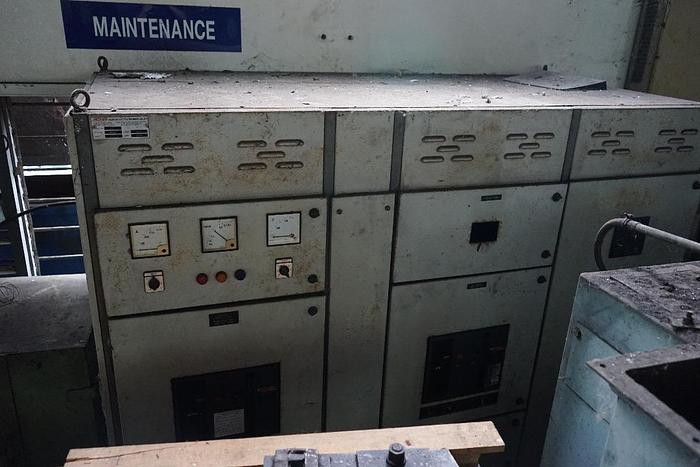

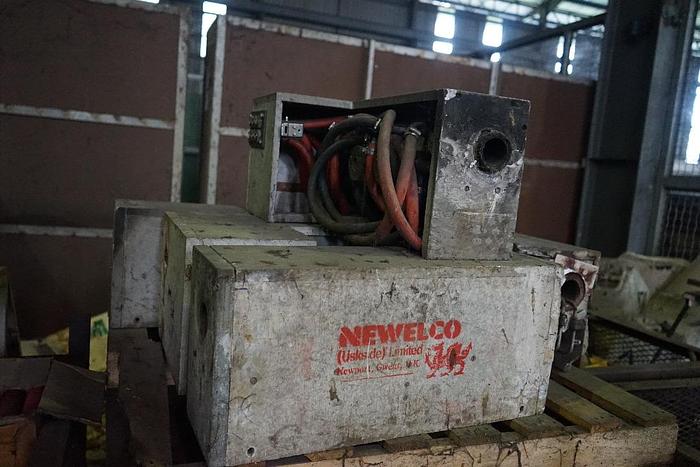

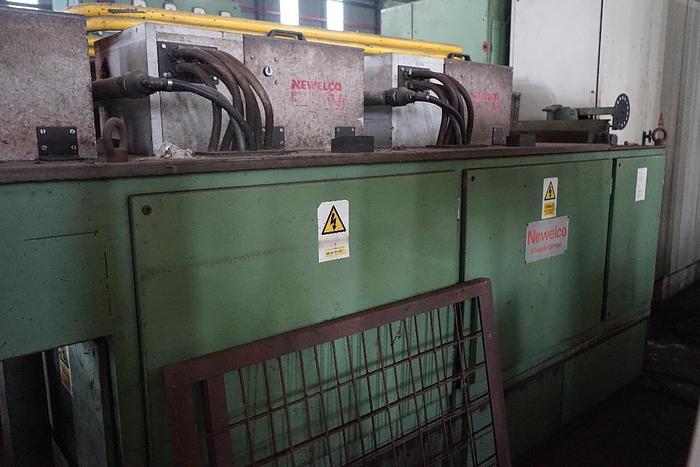

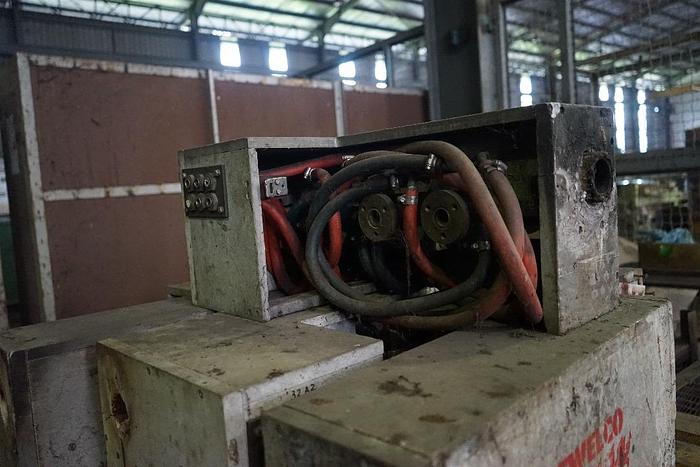

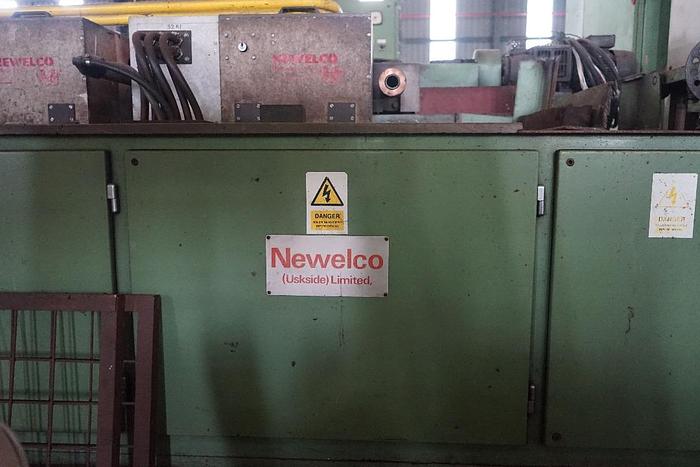

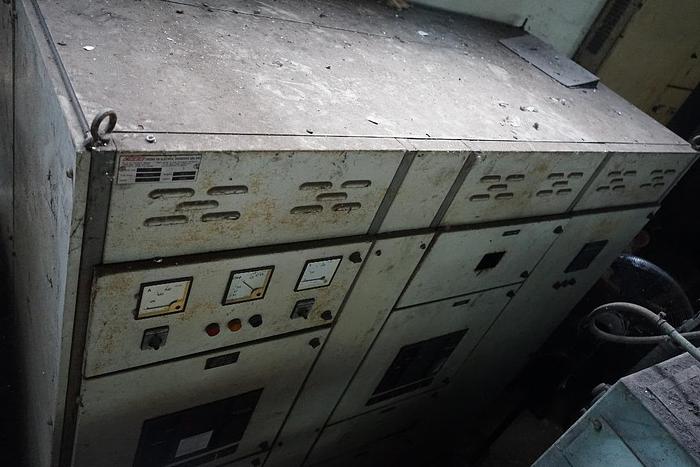

2. Newelco SFR 1275kw Induction heater with 3 Coil sections

(sufficient to heat bar for production of M36 nuts at 100 pcs/min)

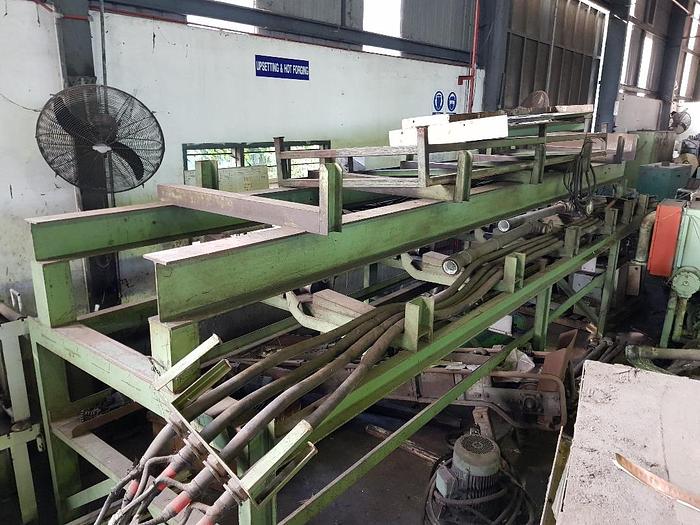

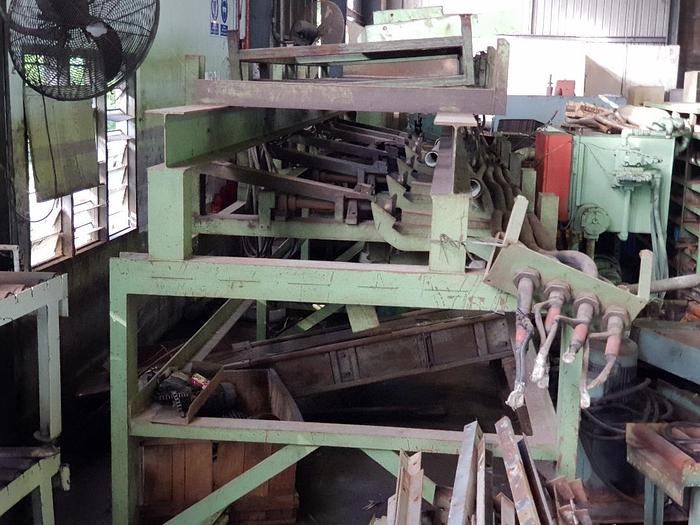

3. Bar Rack - 6 meters long bars with automatic bar feeding system

4. Conveyor System for products and for scrap

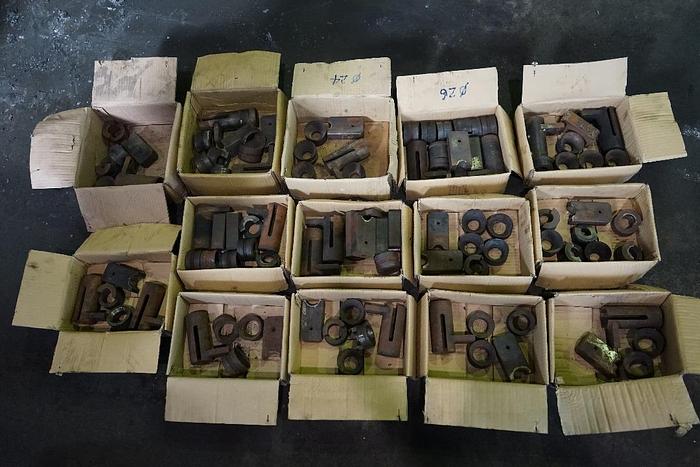

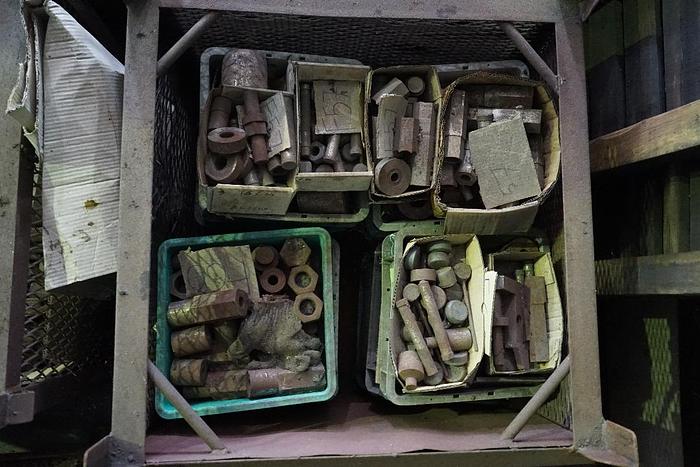

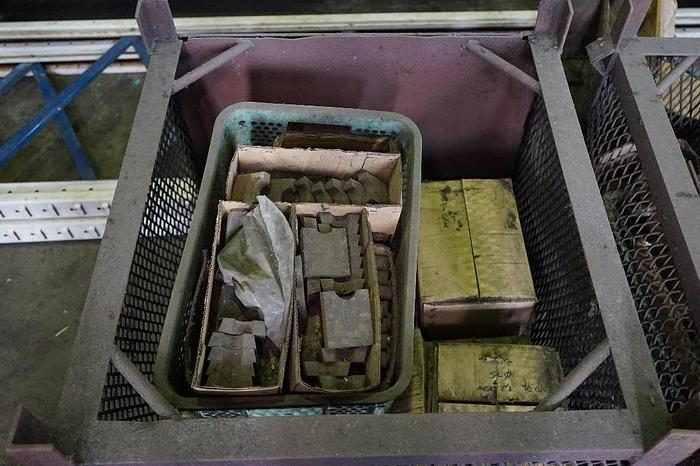

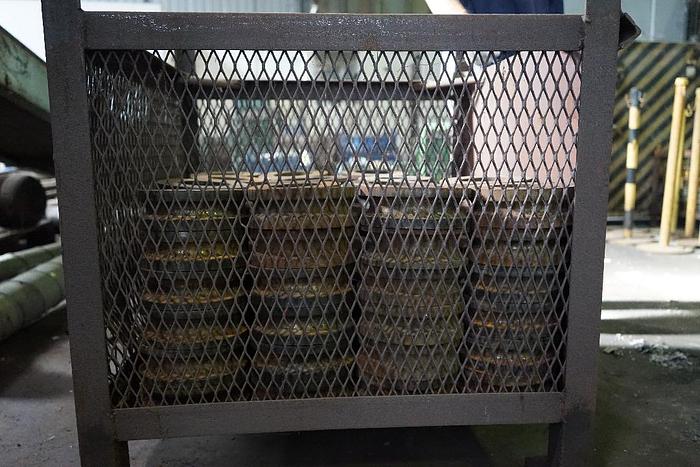

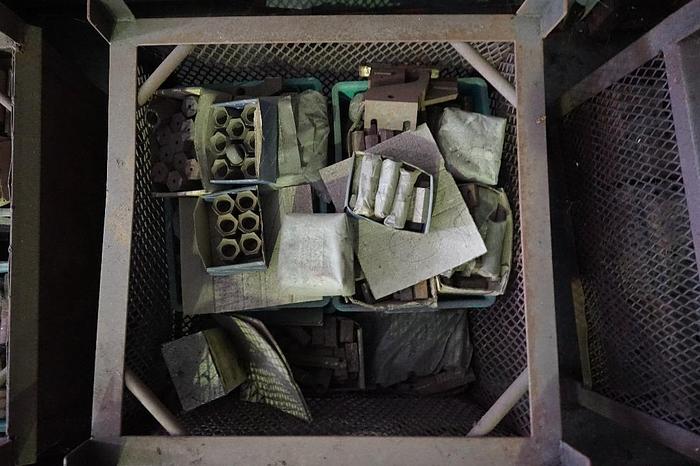

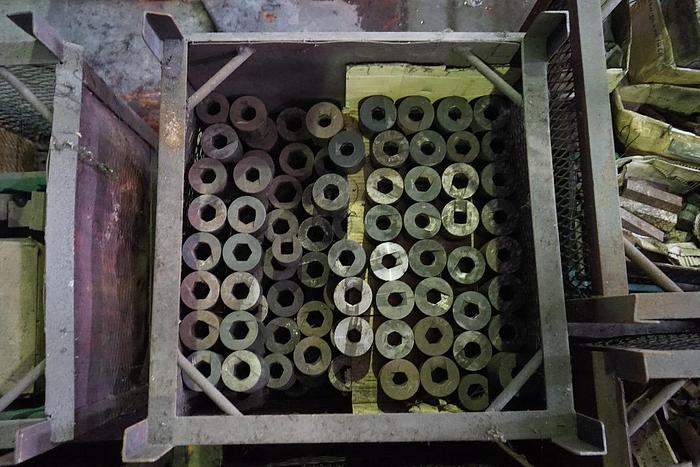

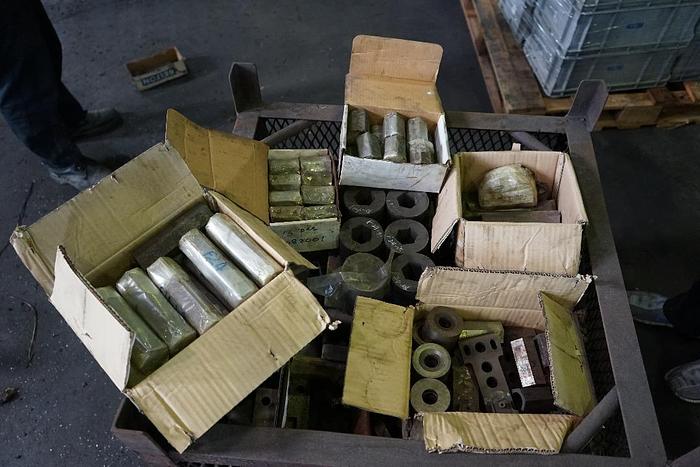

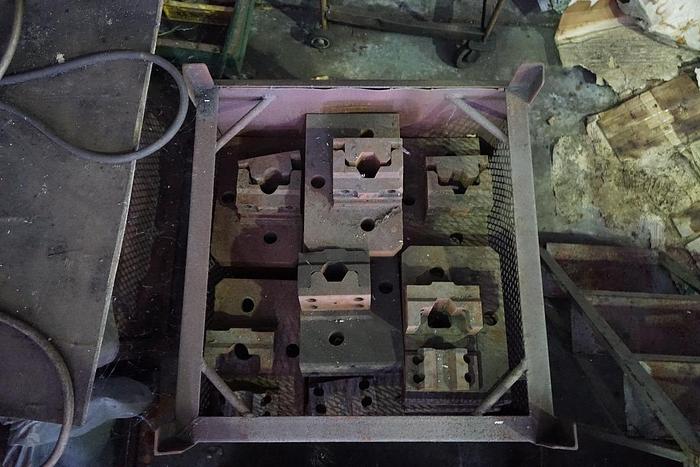

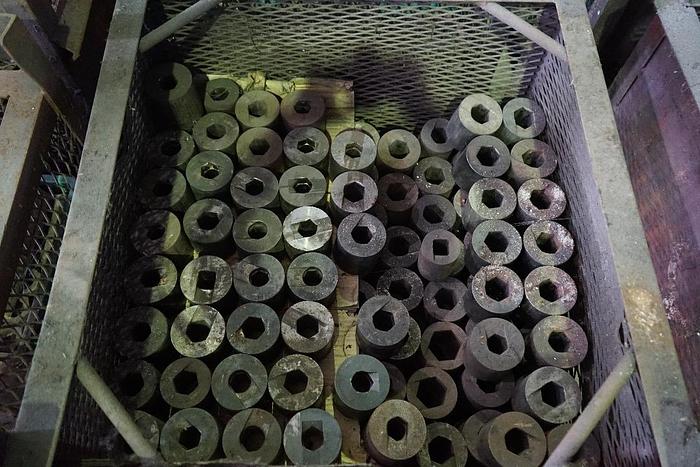

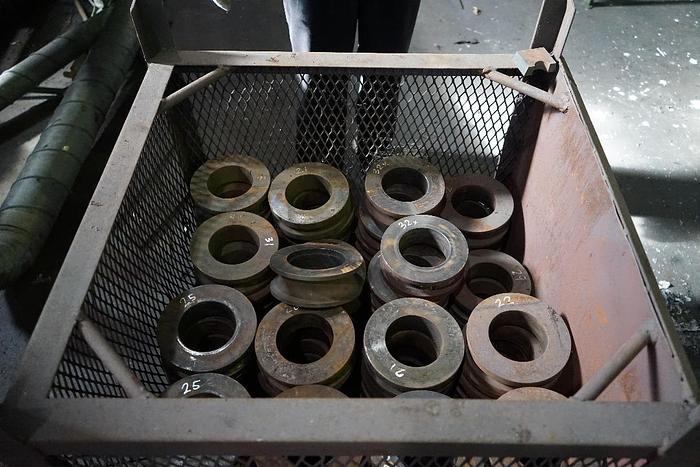

5. Various sets of tooling for hexagon nuts (to be specified)

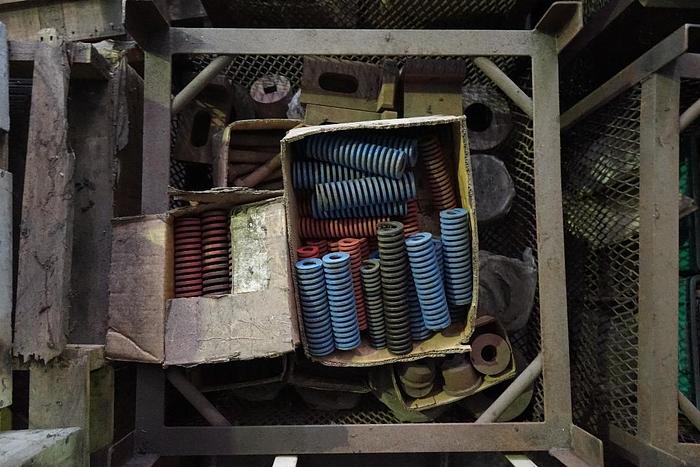

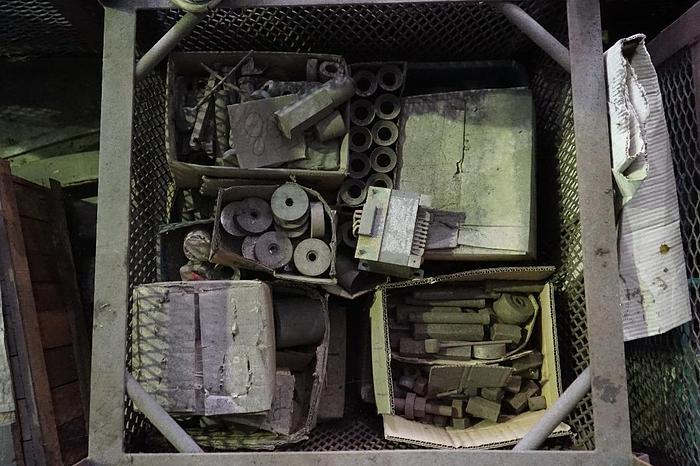

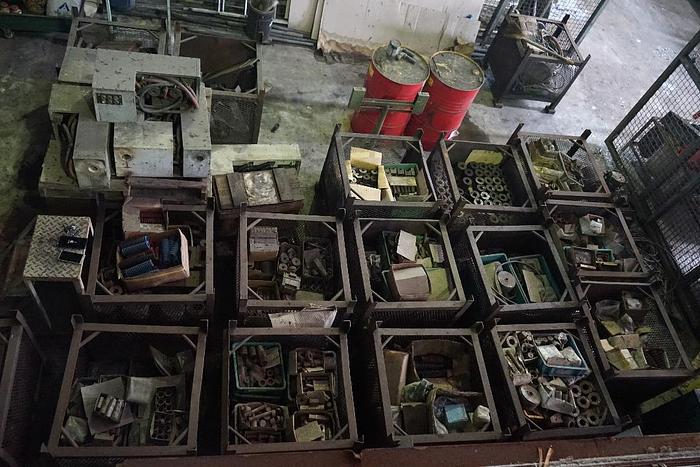

6. Various spare parts for MW53 and Induction heater
