Cold Rolling Mill Poscon

Aluminum Cold Rolling Mill without Electrical panel & Cable

Specification : 1350W x 0.2t x 1200 ton 4Hi-Non Reversing

A) Rolling Equipments :

:¢(360~400)*1500B WorkRol l~1set

:¢(890~950)*1500B BackupRol l~1set

:600KW*600V*(400~1200)rpm DC Motor ~ 4 set

:2580W*1150H*840T*1/2.5 Speed Reducer ~1set

:¢300*3470L Universal Joint ~2 set

B) Hydraulic Equipments :

:A4VSO125DR/10R-PPB13NOO*55KW*6P*440V ~2set

:¢625R*¢650B*150st(210kg/cm2) Cylinder ~2set

C) Fan Equipment :

:1833m3/min*75kW*440V*4P ~1set

:1500m3/min*75kW*440V*4P ~1set

D) Electrical Equipment's :

:MCC panel 58 face (MODICON 984-685E, Eurotherm Drive & others)

Miscellaneous Equipment's :

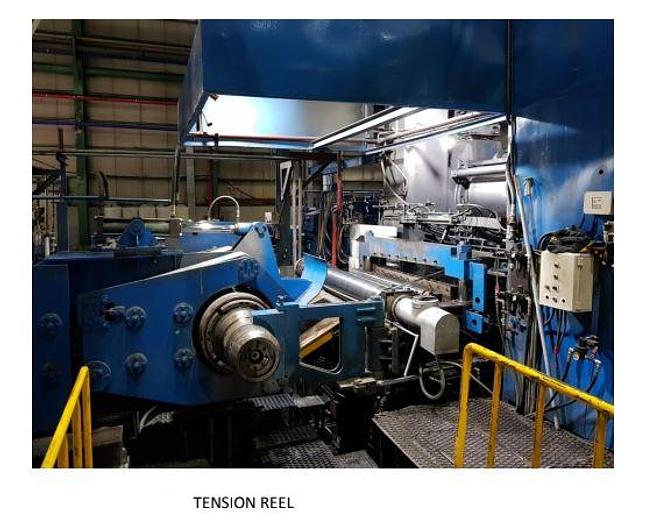

A)Tension Reel (¢610*1450L*1000KW*600V*(400~1200)rpm*

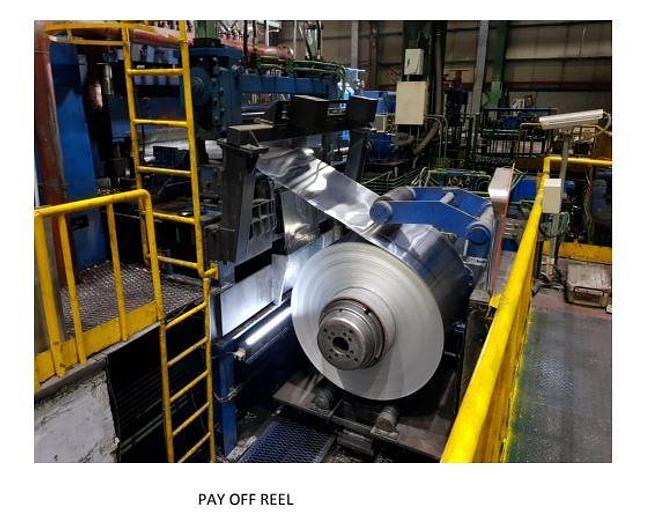

B) Payoff Reel (¢610*1450L*600KW*600V*(400~1200)rpm*

(2.99~5.98:1 Speed reducer) ~1set

C)Belt Lapper (1200W*1676H*4100L) ~1set

D) Rolling Oil Spary (2m3/min*80M*55kW*440V*4P) ~3set

E) Purification : Schnaider Filter (1574W*5585H*6706L*110000m3/h) ~1set

F) Sencer type SFC System ~1set(ACHENBACH)

G)CPC System ~1set

H) Thickness gauge (X-ray) ~1set(PAULY)

I) Puriufvation for Rolling Oil : VDU(200L/h) ~1set
