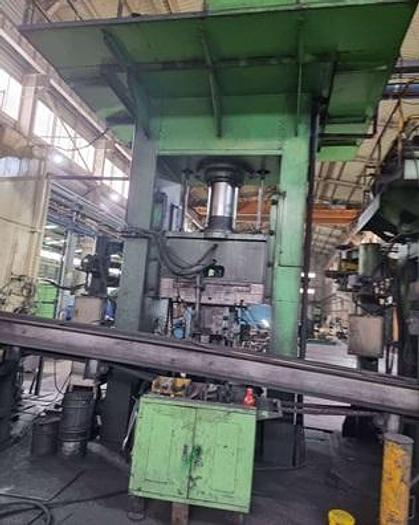

Press Forging Hydraulic Sung Shin
Specifications
| Manufacturer | Sung Shin |
| Year | 2003 |
| Condition | Used |
| Stock Number | MA2166 |
| Item condition | Good condition |
| Capacity tons | 200 |
Description
Capacity : 200 tons,
Slide stroke : 500 mm,
Slide open height : 1900 mm
Shut height : 1380 mm,
Slide ascending power : 20 tons,
Slide dimension (LR x FR) : 1450 x 500 mm,
Bolster dimension (LR x FR) : 1450 x 500 mm,
Bolster thickness : 145 mm,
Lower K/O(Y/N) : Y,
Die cushion stroke : 200 mm,
Slide descending speed : 330 mm/sec,
Slide pressing speed : 33 mm/sec,
Slide ascending speed : 330 mm/sec,
Hyd pump : IPH-6B-100-21x 2대(Work Pressure 182kg/cm2),
oil tank : 500 Liter,
Motor : 45Kw x 6P x 440V x 2ea,
Total weight : 26 tons.
