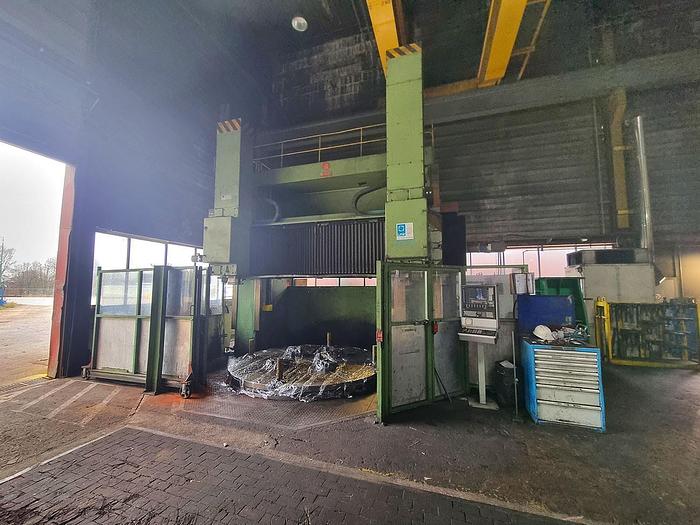

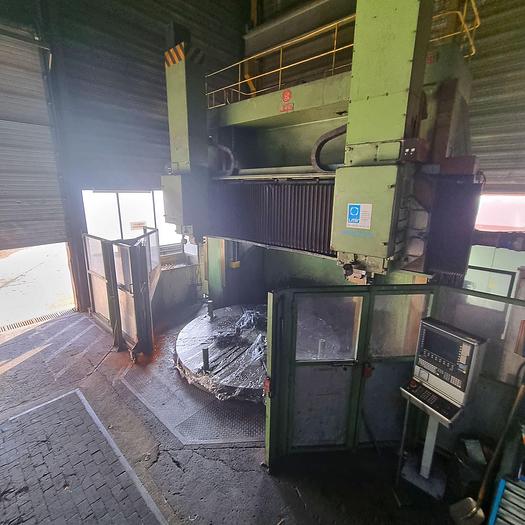

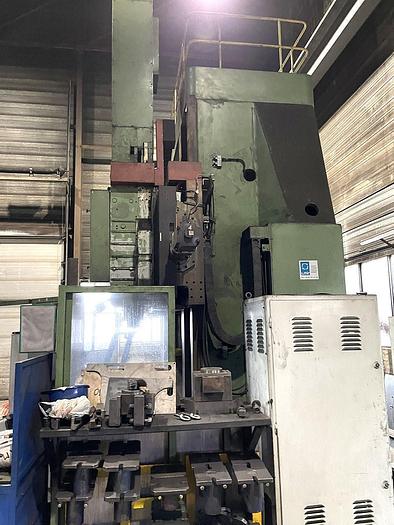

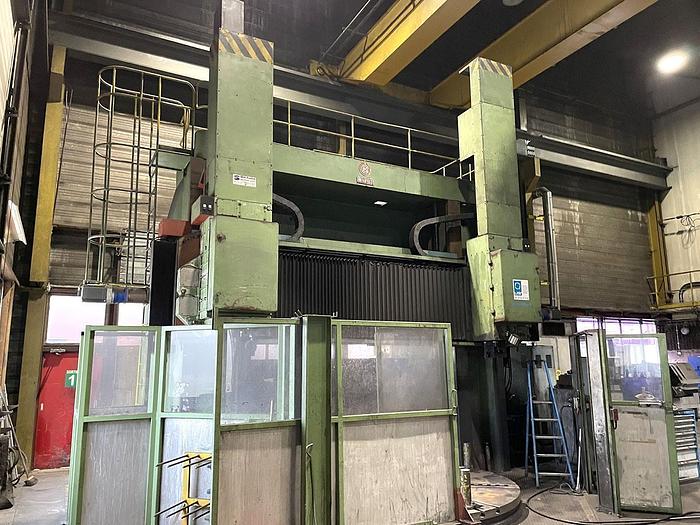

Lathe Vertical Turning CNC Blansko SKD32B

Price

Contact us for price

orCall +919920651051

Specifications

ManufacturerBlansko
ModelSKD32B
ConditionUsed
Stock NumberMA2180
Item conditionGood working condition, dismantled and is stored
Capacity tons3500

Description

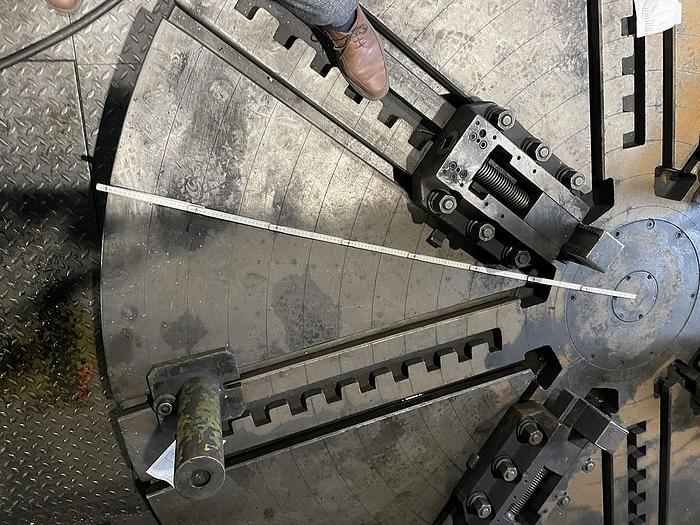

Chuck dia. : 3200 mm,

Max turning dia : 3500 mm,

Power on the spindle : 120 kW,

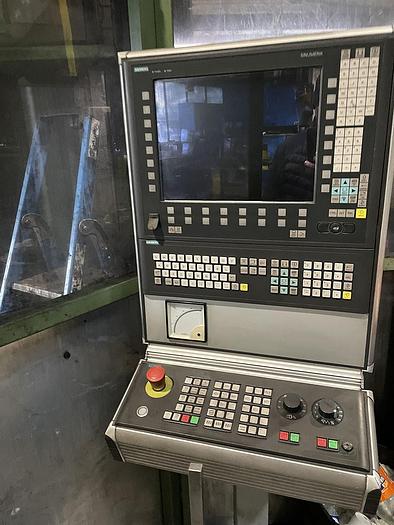

Command : Siemens 840D,

Number of speeds : 1 > 22 rpm / 22 > 80 rpm,

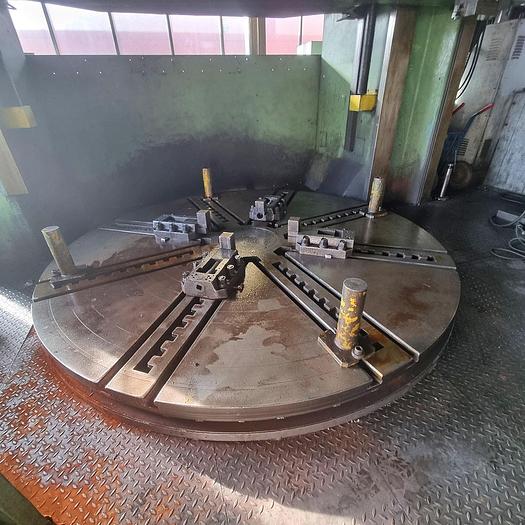

Table diameter : 3200 mm,

Max swning : 3500 mm,

Max load on table: 50 ton,

Hydrostatic table,

Power on table: 120 kW,

Torsion force: 132 Kn,

2 variable speeds gearbox: 0,8 > 22 / 2,8 > 80 rpm,

Power needed : 195 kVa,

Vertical travel of cross-beam: 2100 mm,

Max workpiece height : 2550 mm,

Long : 10045 mm,

Wide : 8120 mm,

Height : 7155 mm,

Weight : 65 ton,

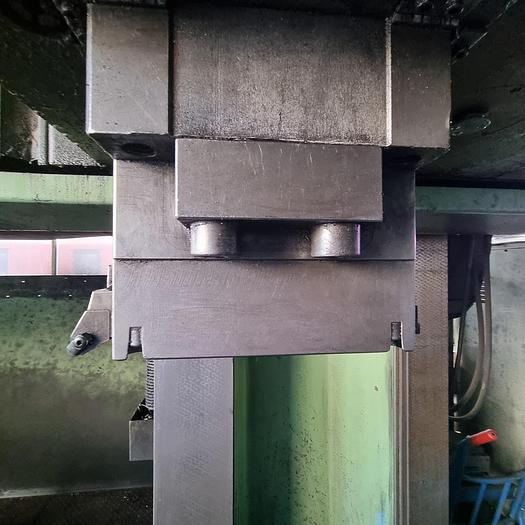

2 tool heads on cross-beam CNC controlled,

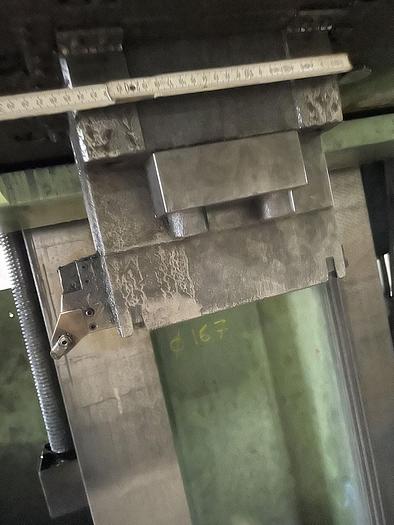

Horizontal movement of tool head nr1: 1400 mm,

Vertical movement of tool head nr1: 1500 mm,

Horizontal movement of tool head nr2: 1980 mm,

Vertical movement of tool head nr2: 1350 mm,

Swivel angle of tool head: -/+ 30°.

Manual Available

The machine was retrofitted with a Siemens control
