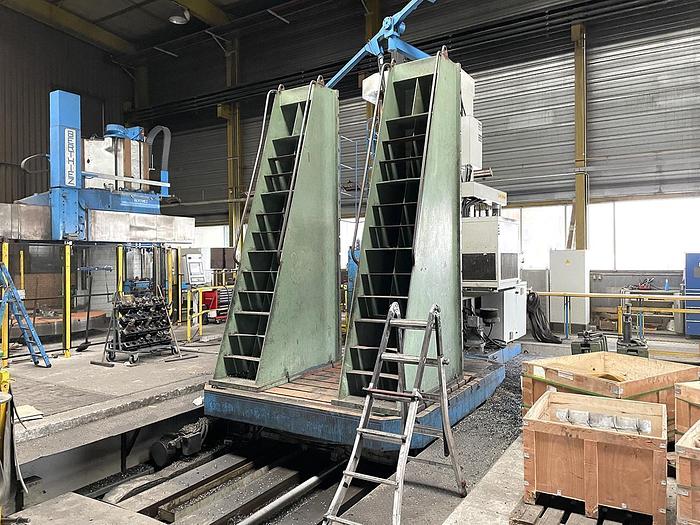

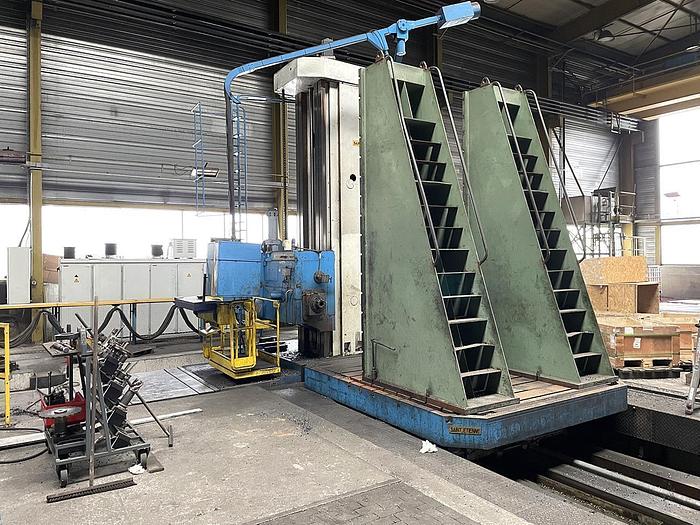

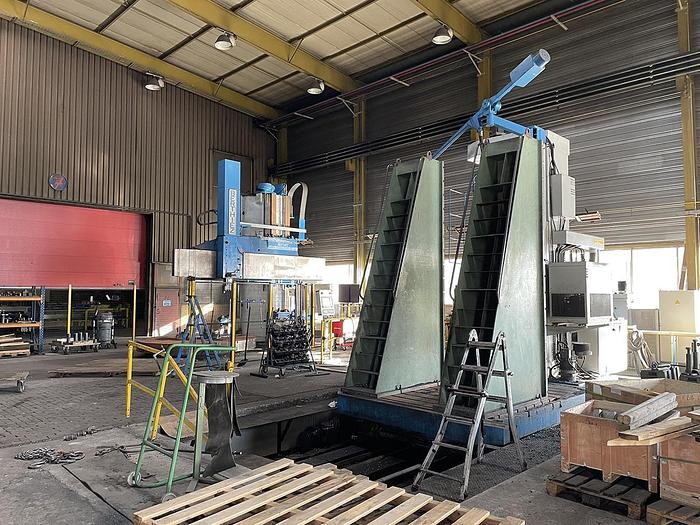

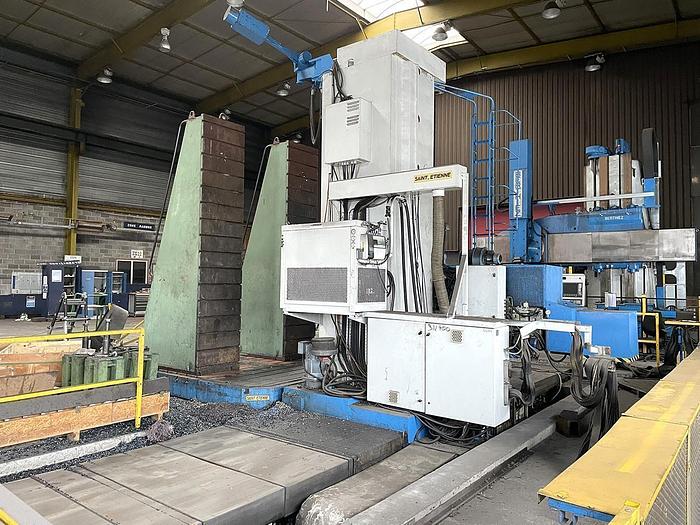

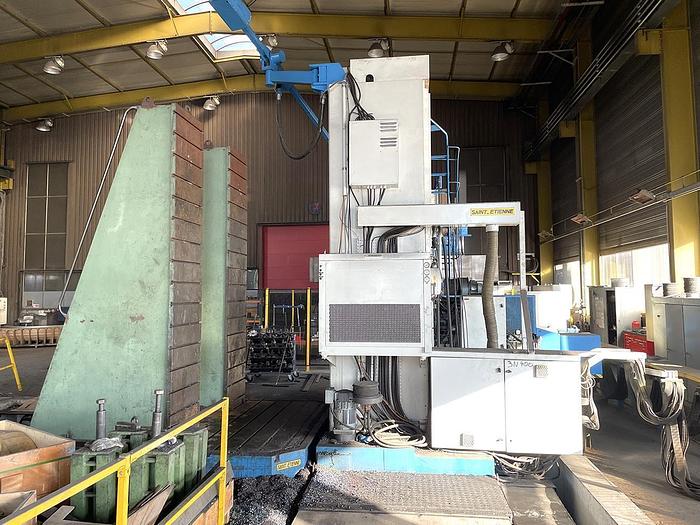

Borer Horizontal Floor Type CNC Ernault Somua Mobifor

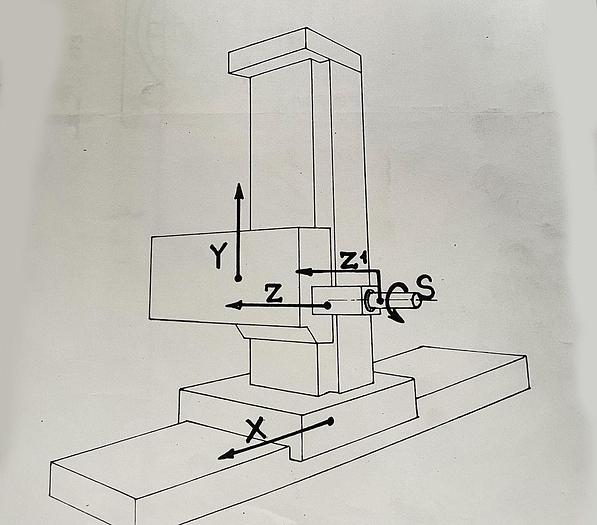

Borers with travelling column :

Spindle diameter: 130 mm,

Longitudinal travel X-axis : 9250 mm,

Cross traverse Y-axis (table/column) : 3000 mm,

Vertical traverse Z-axis : 800 mm,

Spindle traverse W-axis : 600 mm,

S: spindle speed

B: 360° turning of table

W: 2700 mm (travel of table)

Ram section: 300 x 325 mm,

45 kW on spindle,

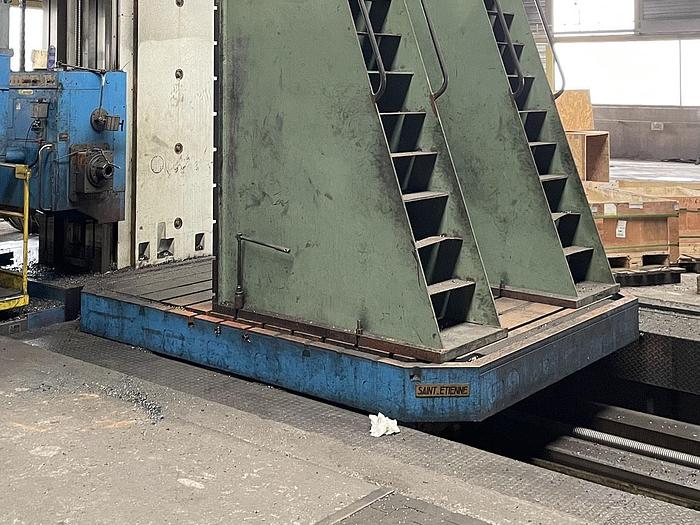

Table: 3500 x 3000 mm

Max load on turntable: 50 ton,

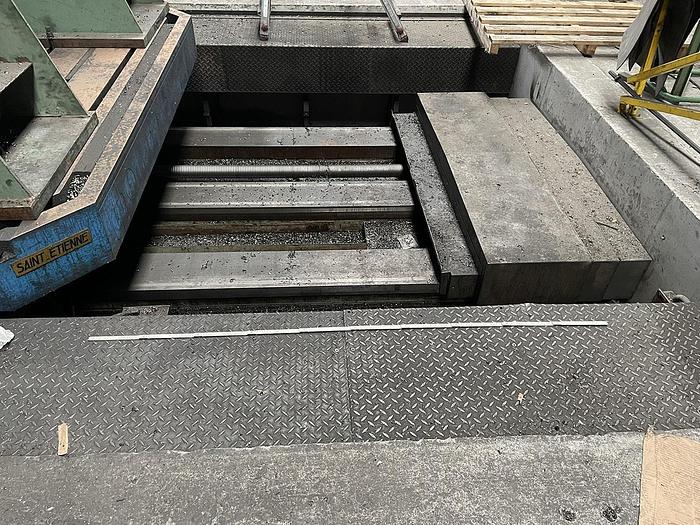

Turntable travel: 2700 mm,

Milling spindle taper (ISO) : ISO 50,

Spindle power : 45 kW,

Dia spindle : 130 mm,

Spindle speed range : 1 > 800 rpm,

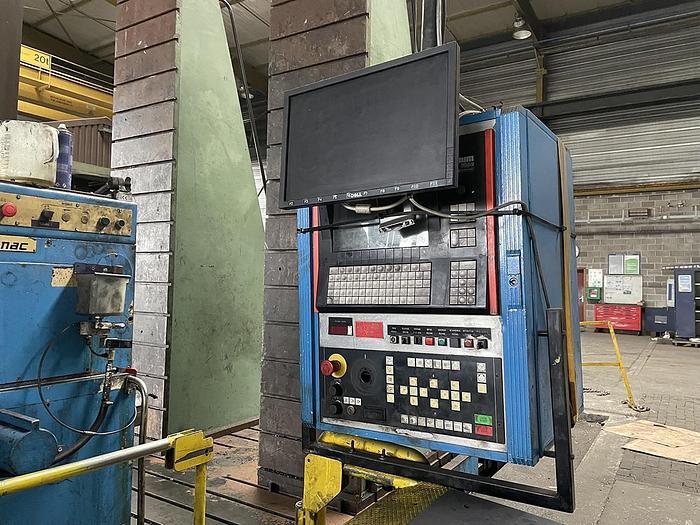

Digital read-out (1) CNC(2) : Num 1060F

Rotary table dimensions : 3500 x 3000 mm,

Max weight on table : 50 tons,

Length : 14175 mm,

Depth : 3660 mm,

Height : 4500 mm,

Weight : 70 tons.

Type: Mobifor

including Huron milling head,

Optional:

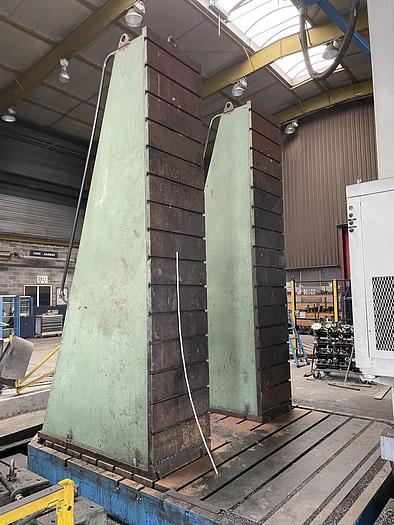

- 2 T-squares of 4 meter high - 1 meter high.
