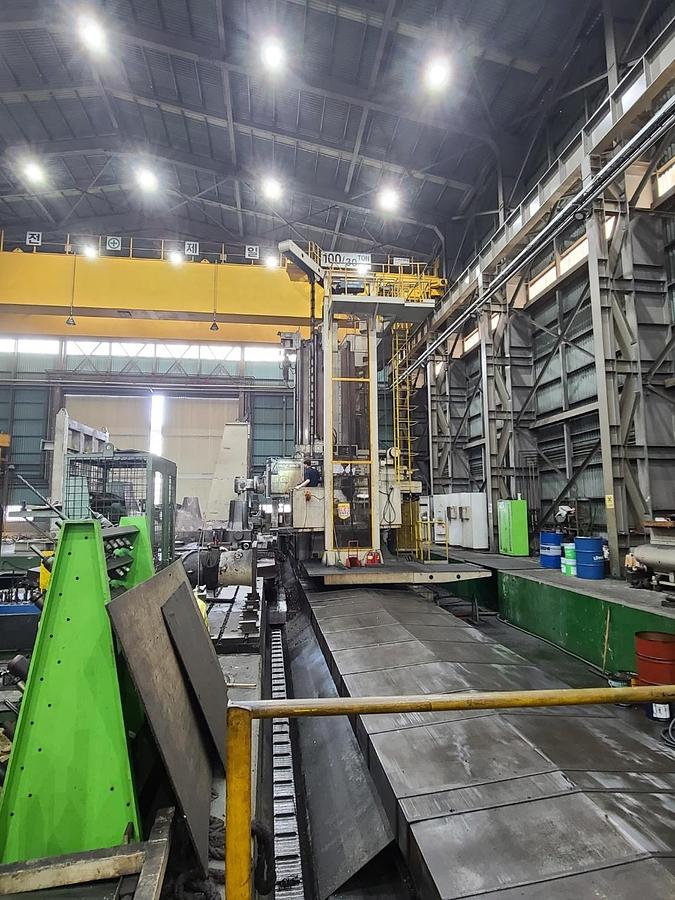

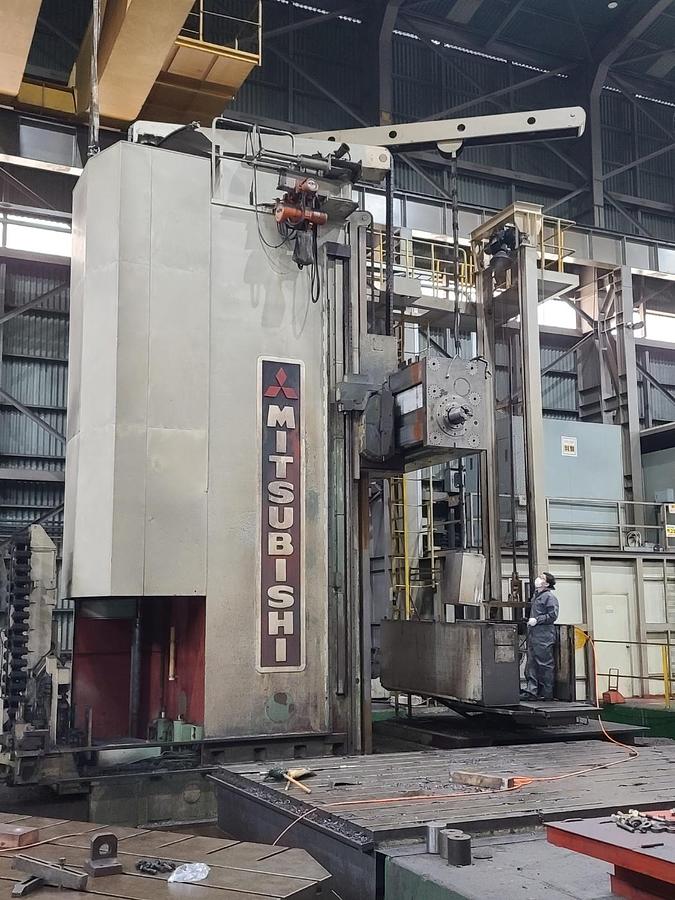

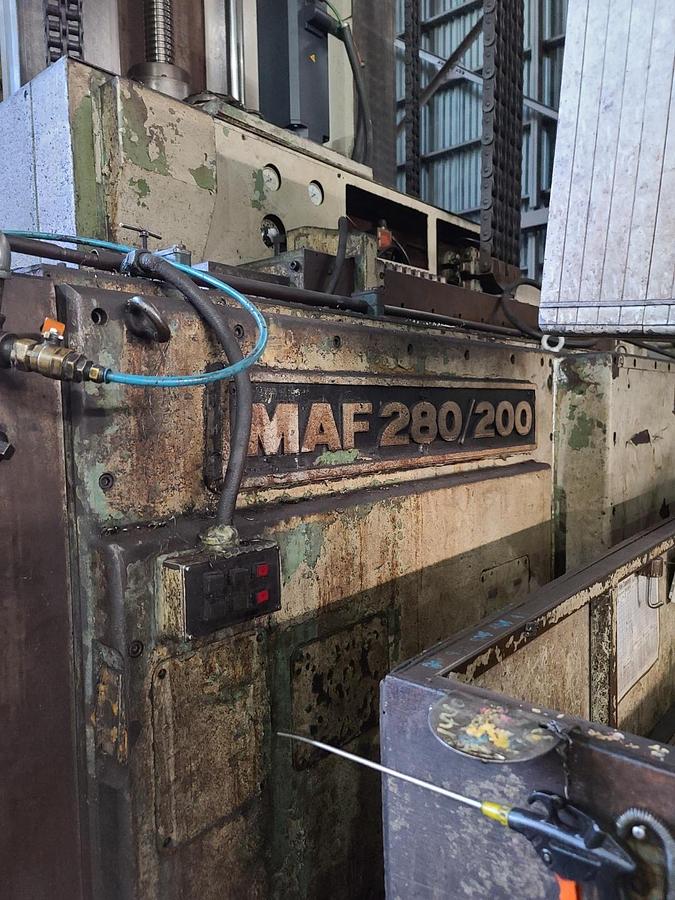

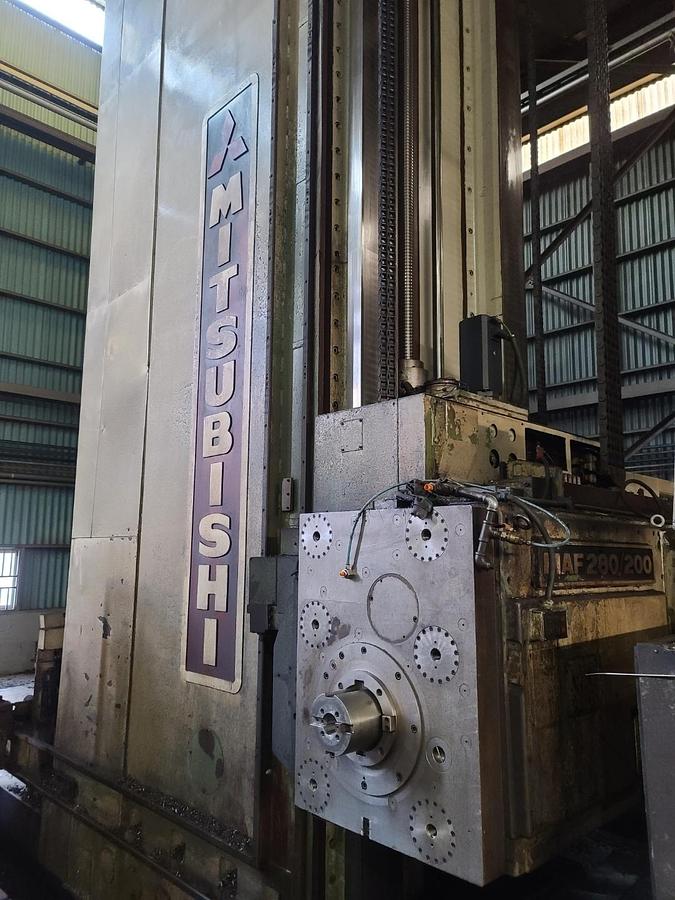

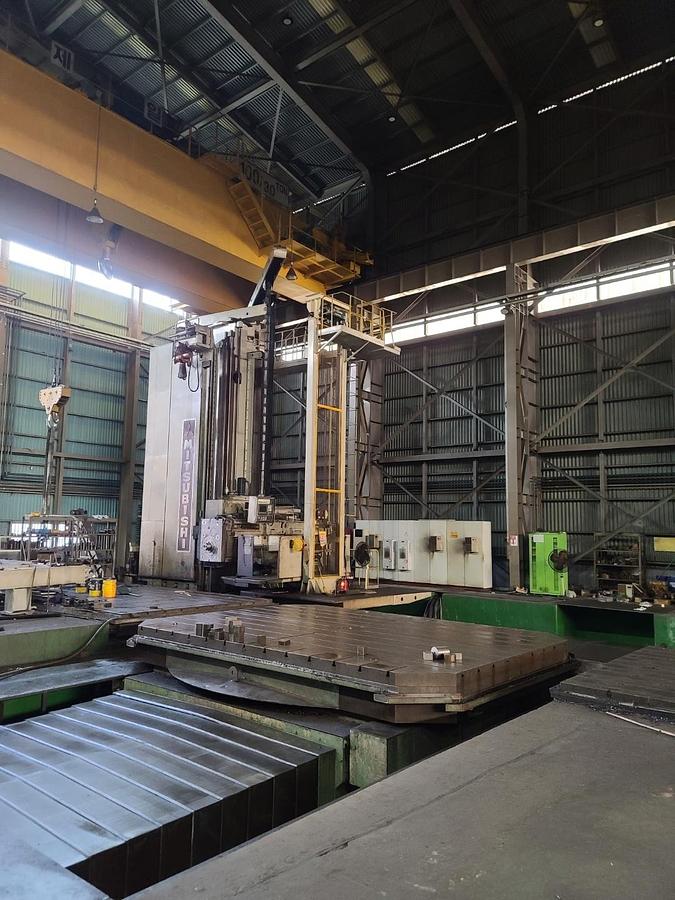

Borer Horizontal Floor Type CNC Mitsubishi MAF-280/200-NC

Main Spindle : Dia. 200 mm,

X - Axis : 16800 mm,

Y - Axis : 5000 mm,

Z - Axis : 1000 mm,

W - Axis : 1280 mm,

V - Axis : R. Table stroke : 3000 mm,

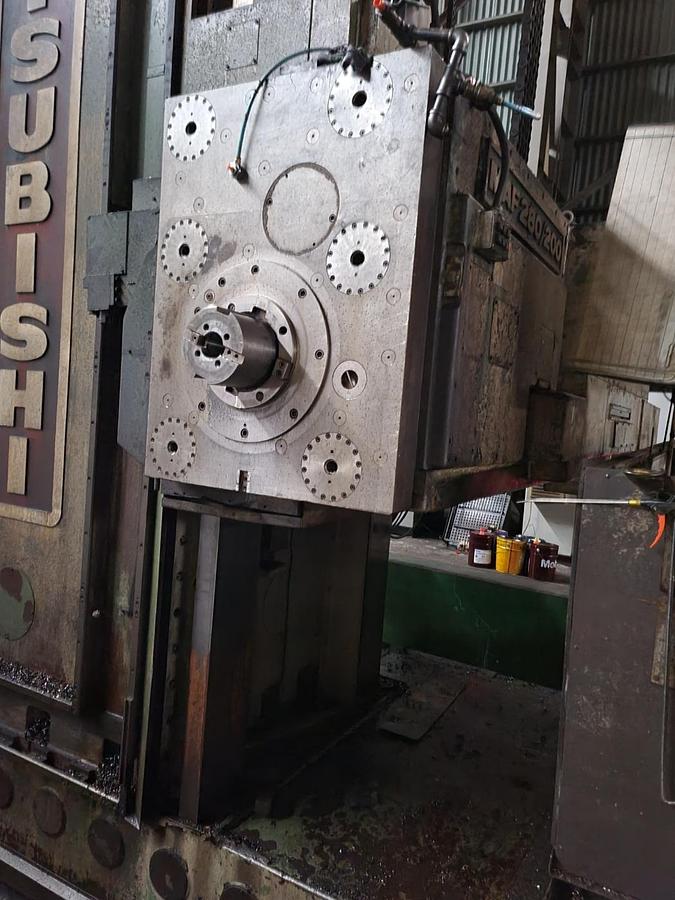

Ram size : 800 x 1000 mm,

Boring bar dia. : 200 mm,

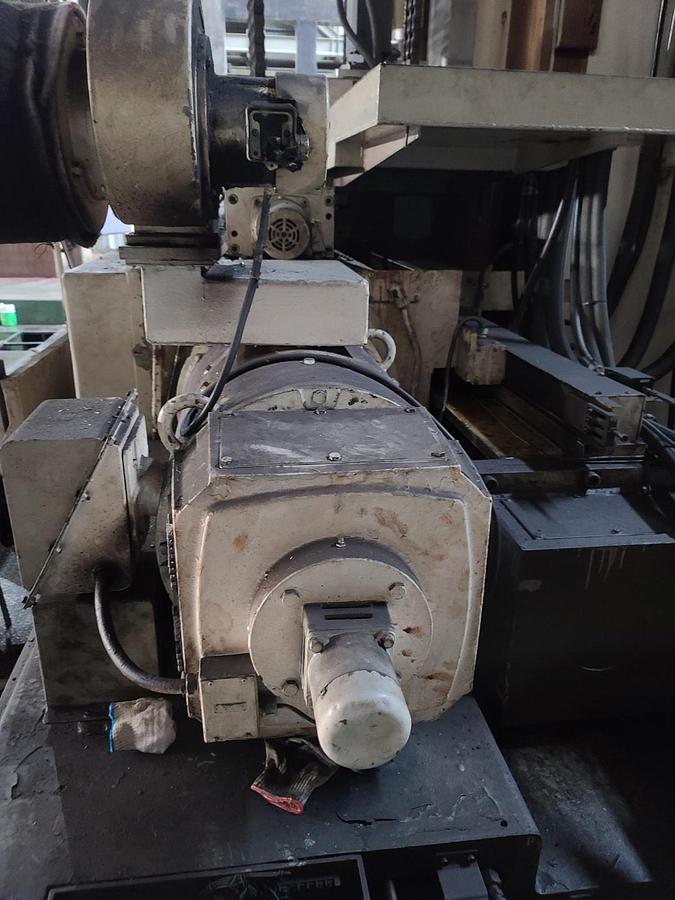

Spindle motor capacity : 100 Hp,

Spindle speed : 800 rpm,

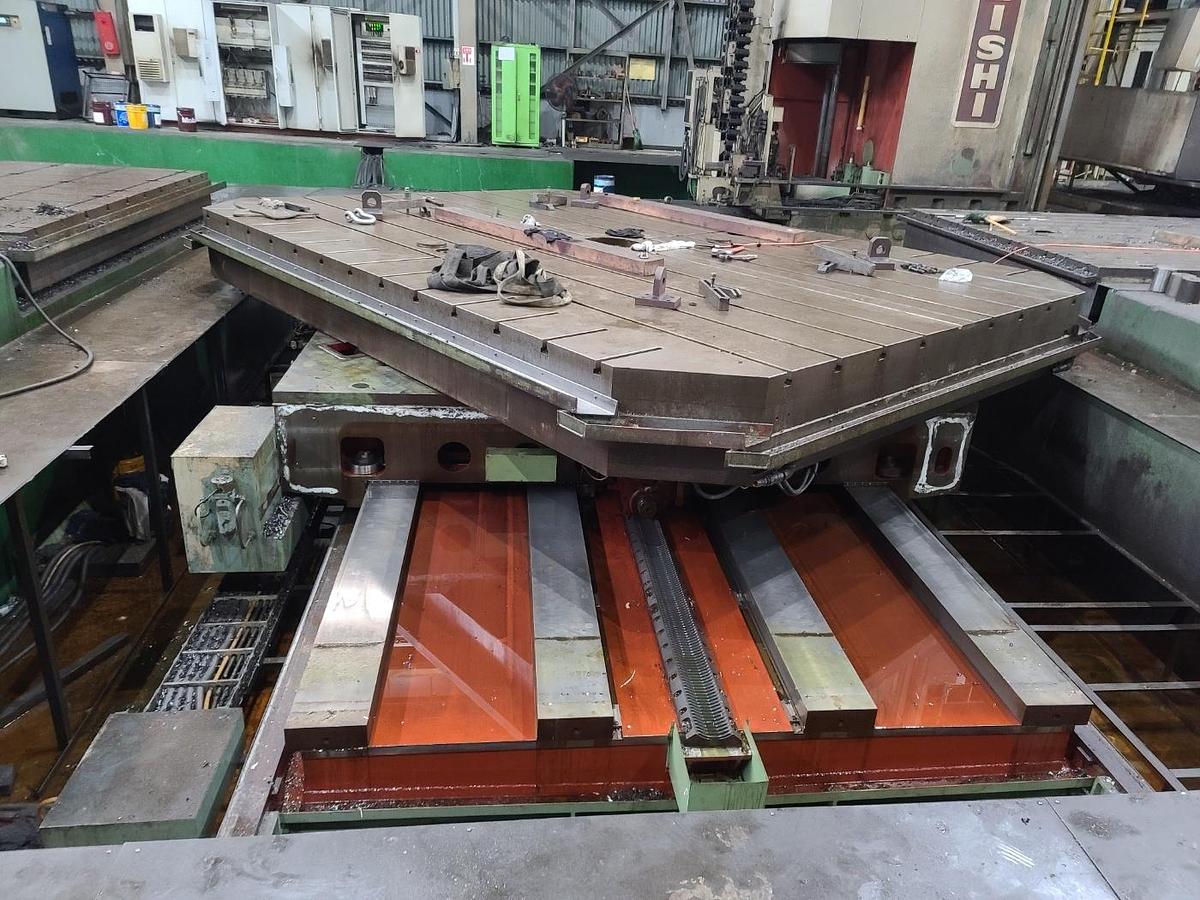

Rotary Table Size : 6000 x 4500,

(indexing accuracy :0.001 deg),

Table Load capacity : 150 tons,

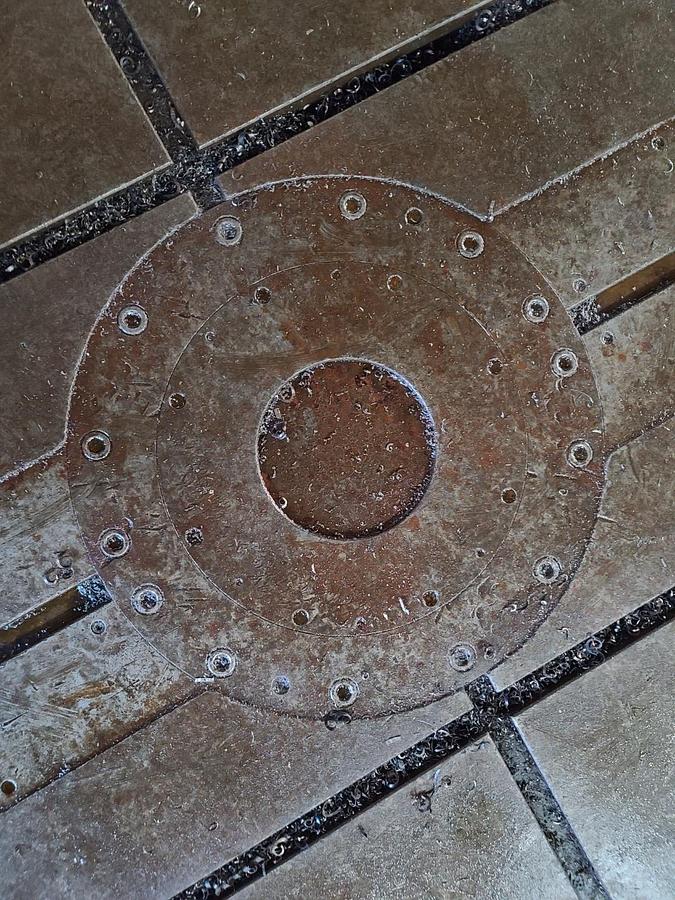

Fixed table : (W 4000 x L 8000) + (W 3600 x L 5000),

Measuring system (Linear scale : X , Y-axis),

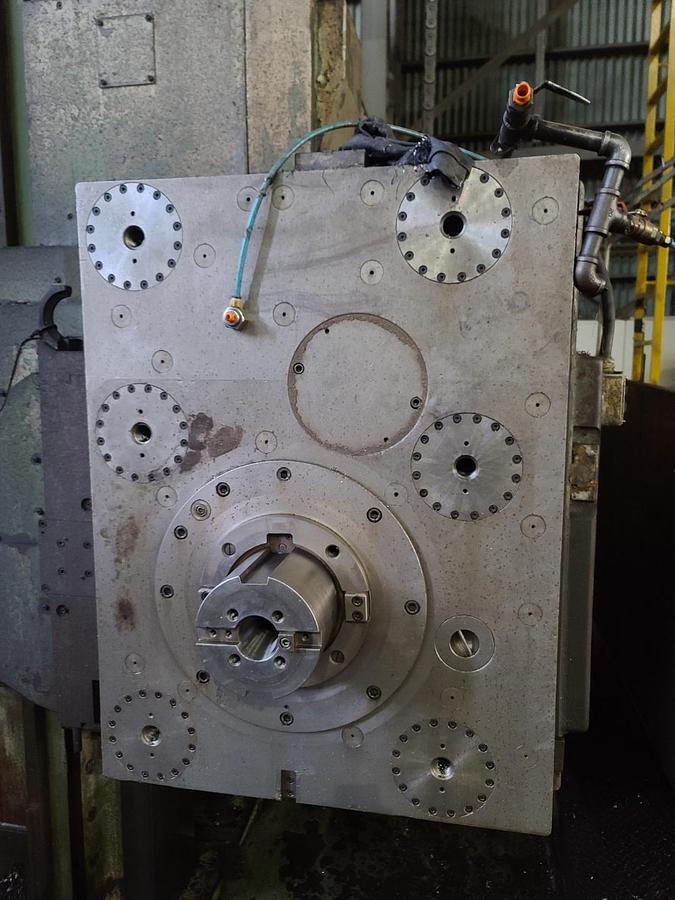

ATC : 40 pot (Tool arm device has failed),

Chip conveyor x 1,

Coolant system x 1,

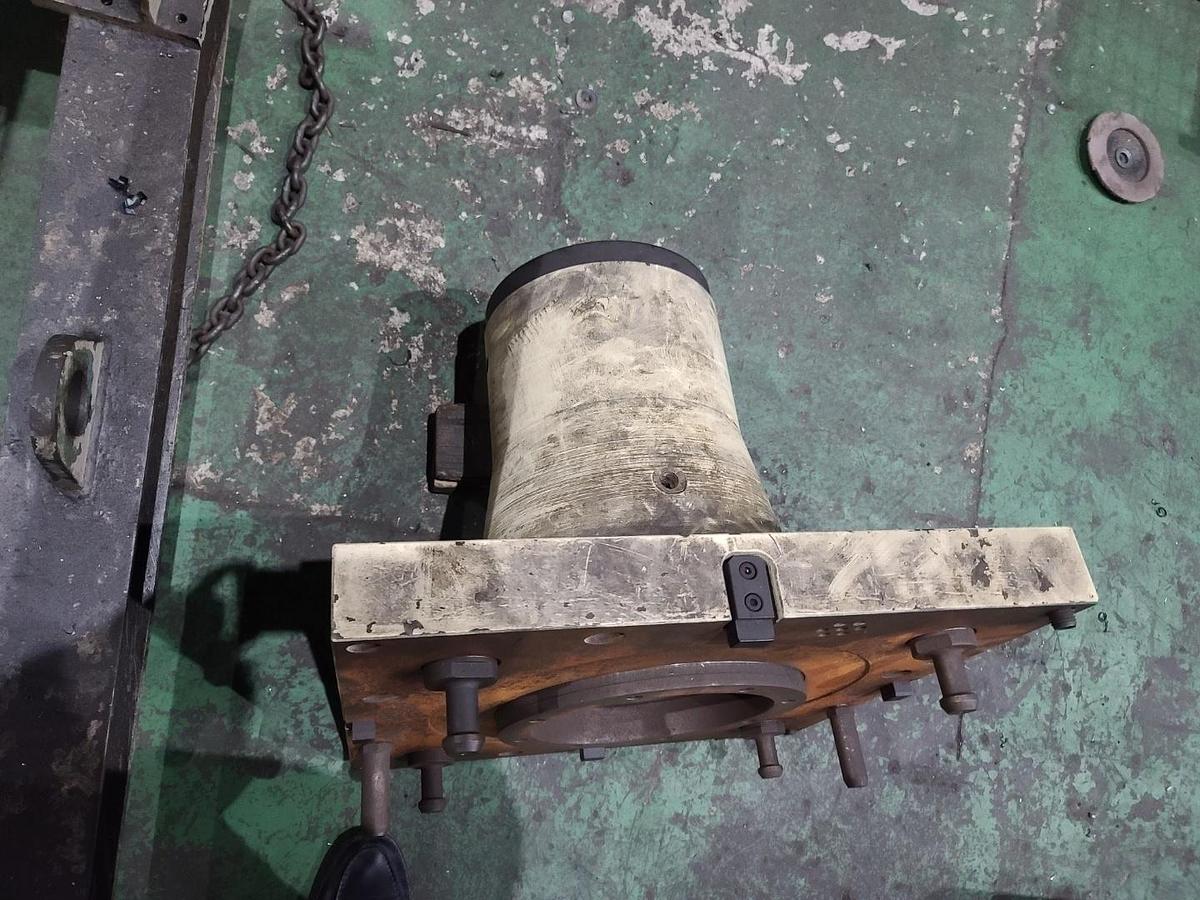

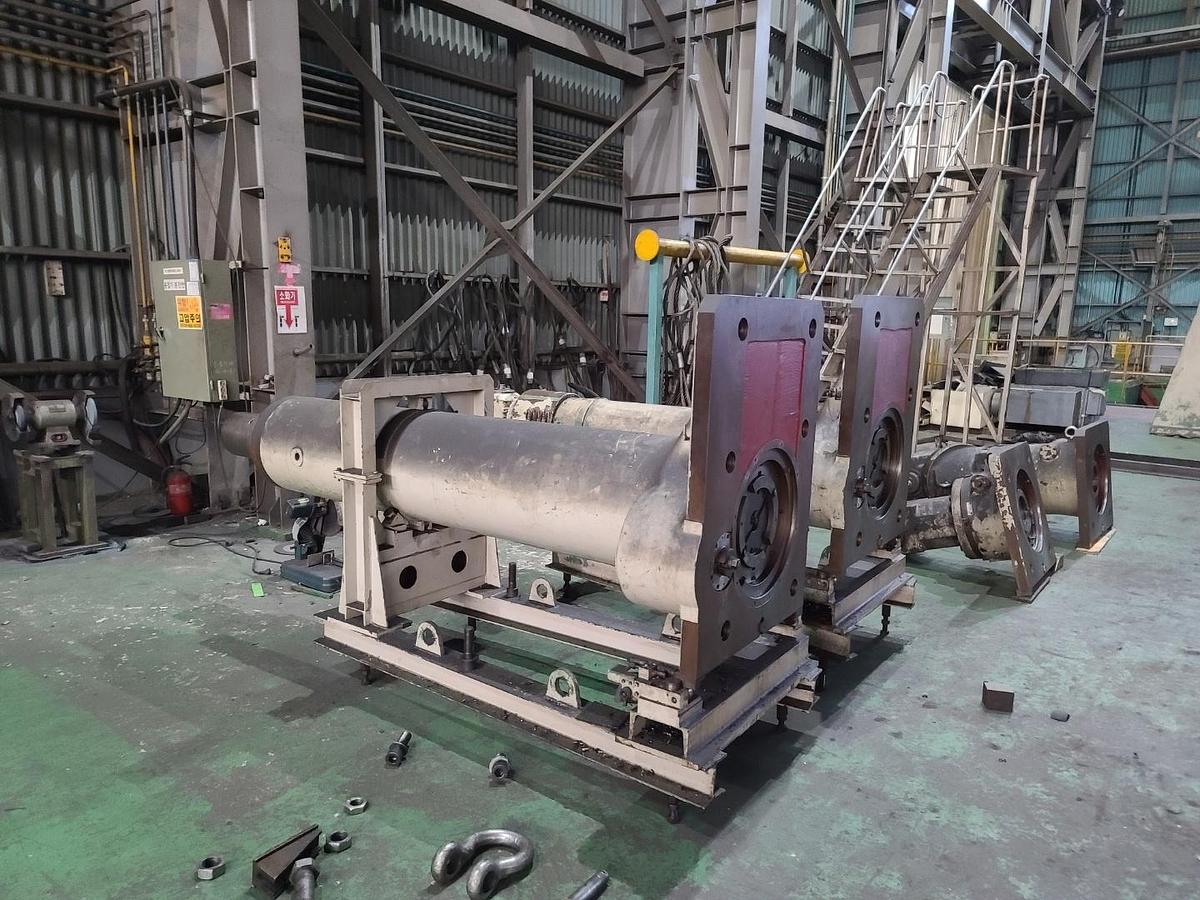

Attachment x 5,

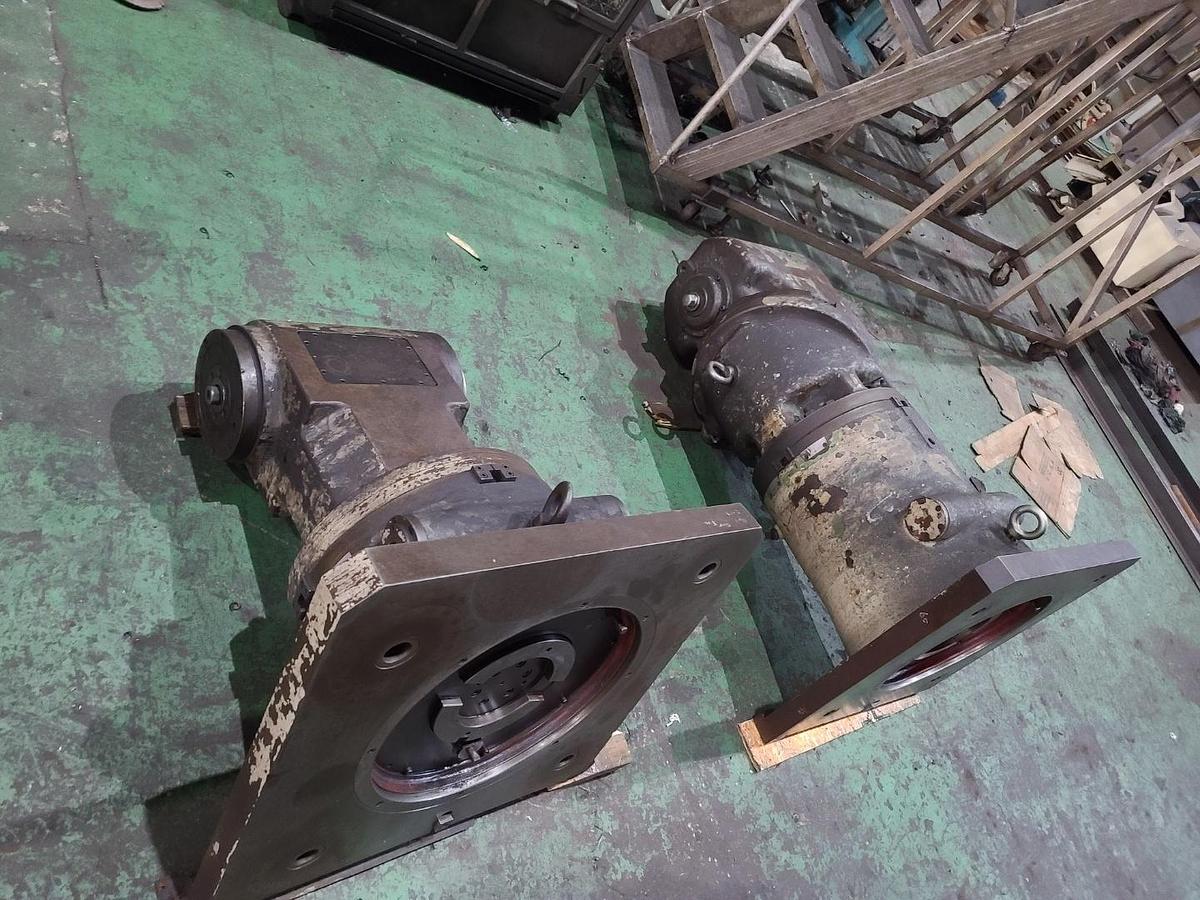

Angle attachment x 1 (L850),

Universal attachment x1 (L1300),

Facing head x 1,

Special attachment x 2,

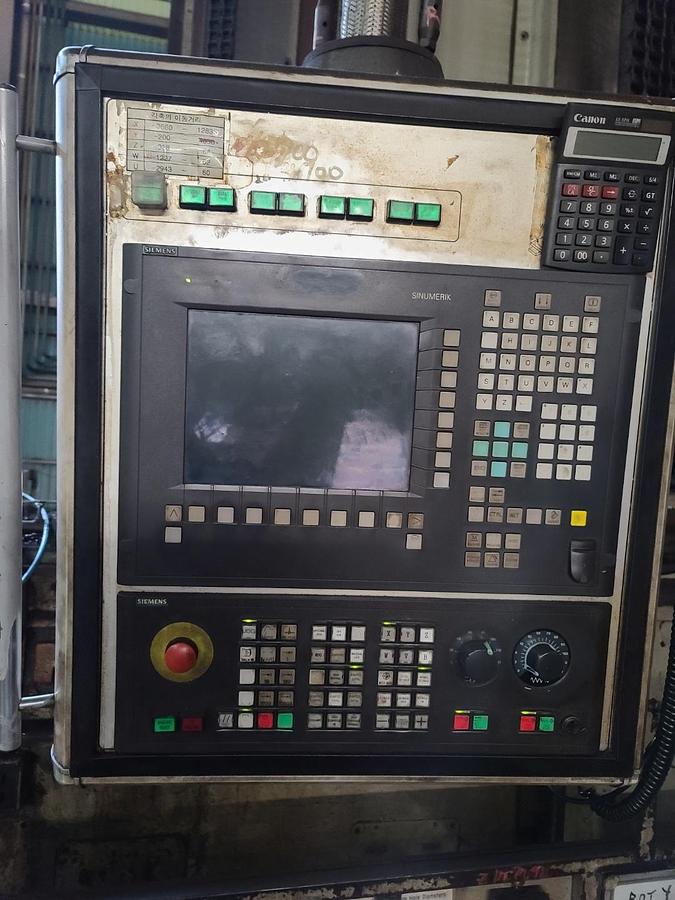

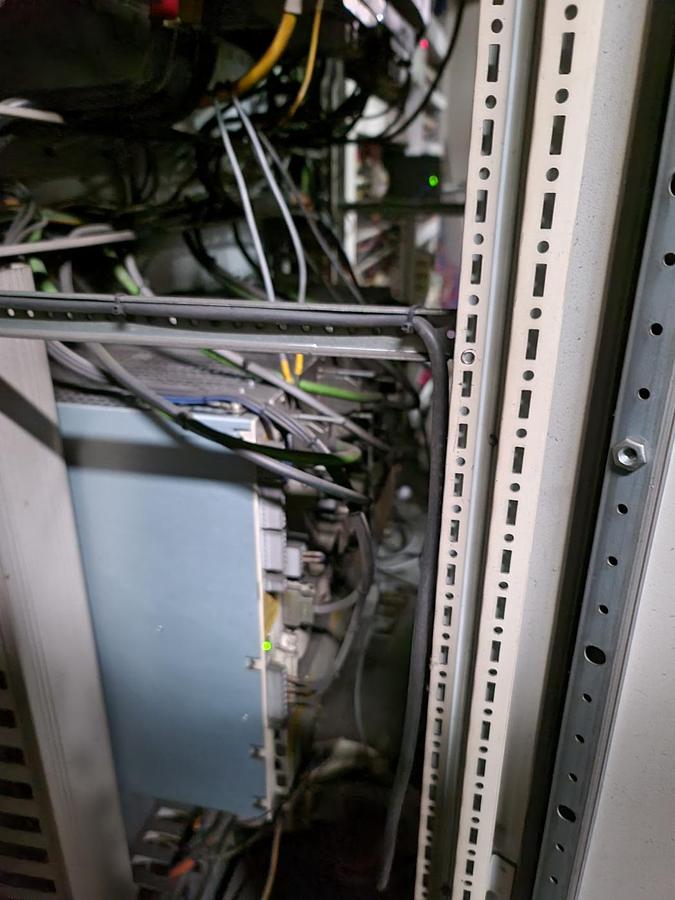

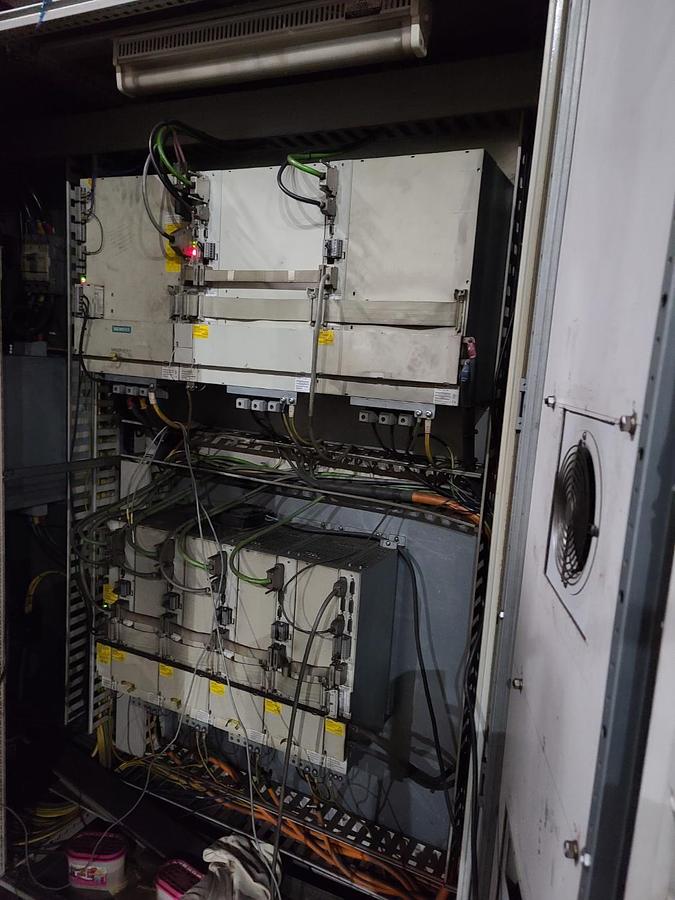

CNC Controller : SIEMENS 840D,

New 1987, Retrofitted 2008.
