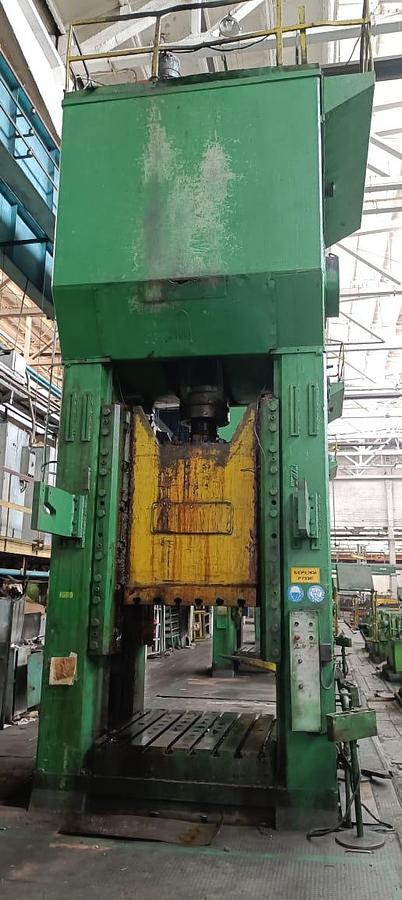

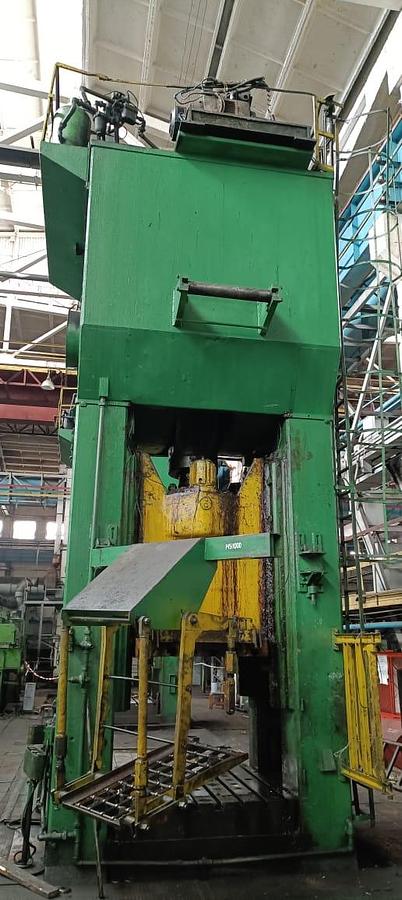

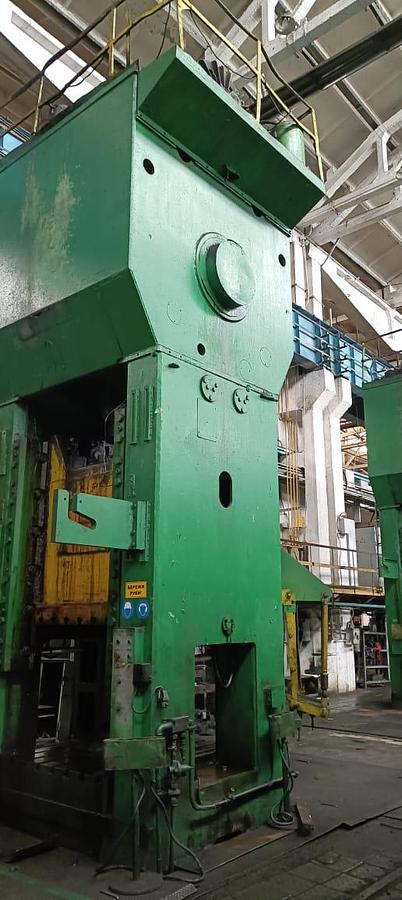

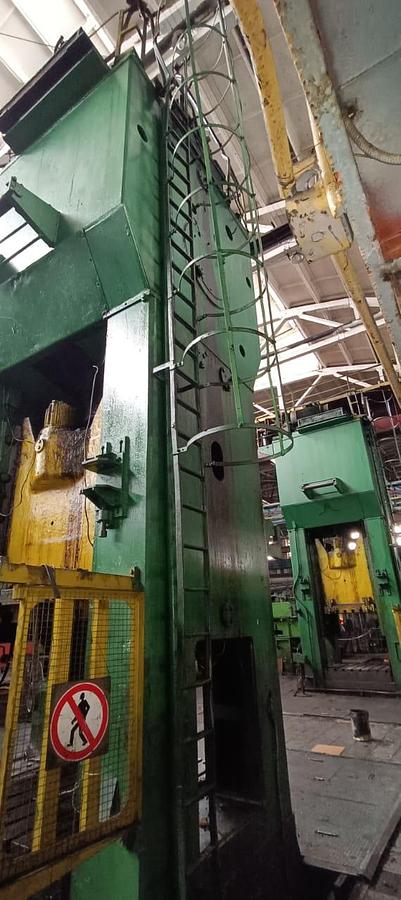

1250 tons Press Trimming PKZe1250 WMW Erfurt

Capacity : 1250 tons,

Slide stroke : 500 mm,

Slide adjustment : 215 mm,

Maximum shut height between bolster plate and slide (stroke down, adjustment up) : 860 mm,

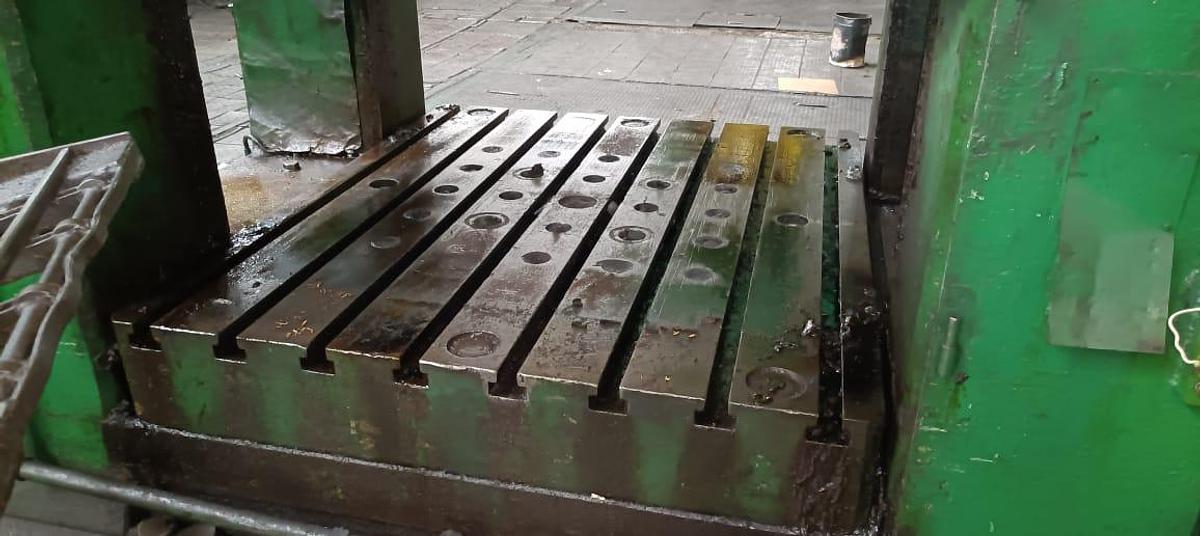

Bed area (width x depth) : 1600 x 1850 mm,

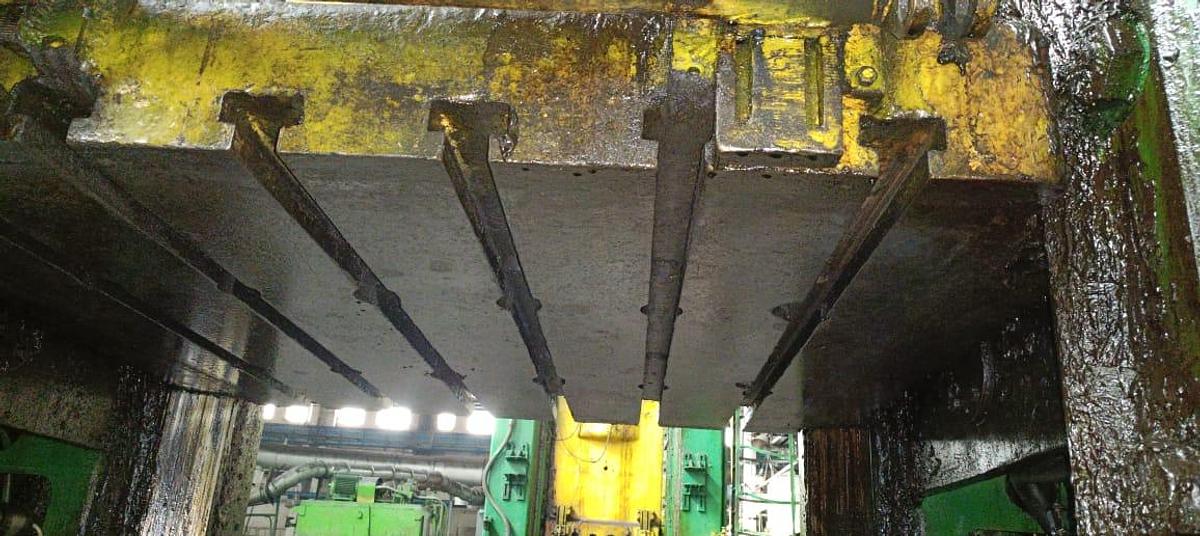

Slide area (width x depth) : 1300 x 1400 mm,

Opening in the bed (width x depth) : 1100 x 1100 mm,

Main motor rating : 90 kW,

Max number of strokes, 8/ min

Cushion force in the bolster : 2000 kN,

Cushion stroke : 200 mm,

Height above floor : 7900 mm,

With lower ejector included

Lower ejector force in bolster : 300 kN

Press weight : 130 tons.

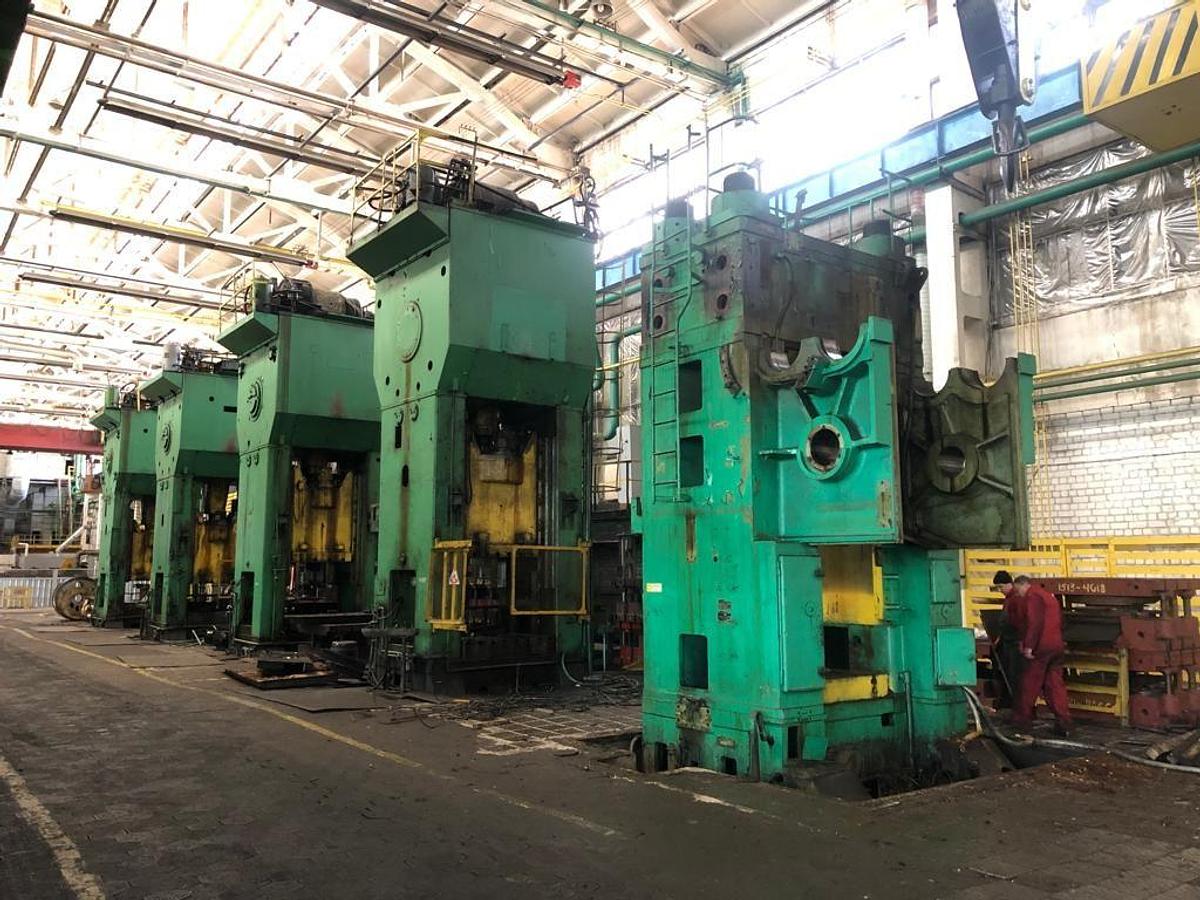

Qty : 3 Nos.
