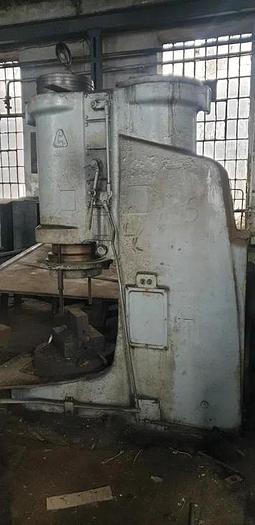

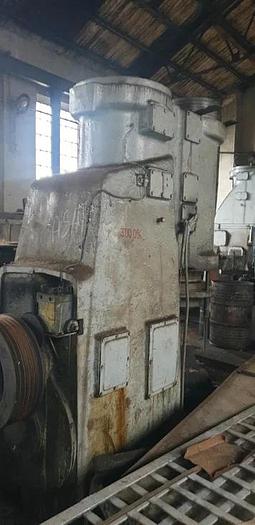

Hammer Forging Open Die Pneumatic M4136
![Used Hammer Forging Open Die Pneumatic M4136](https://i.machineryhost.com/4e0d67e54ad6626e957d15b08ae128a6/c6b9eae4f6122bcd3eb857820c4dd8e3/large-used-hammer-forging-open-die-pneumatic-m4136.jpg)
Specifications
Manufacturer | TMP Voronezh Russia |
Model | M4136 |
Condition | Used |
Stock Number | MA2234 |
Item condition | Good condition |
Capacity tons | 0.4 |
Description
Capacity : 0.4 ton
Weight of the falling parts : 400 kg,
Strike energy : 11 kJ
Strike frequency per min : 142,
Flight : 30 mm,
Height of the working area : 530 mm,
Dimensions of the working surface:
-Length : 560 mm,
-Width : 100 mm,
Optimal dimensions of the forging detail : 100 mm,
Power : 37 kW,
Overall dimensions mm:
-Length : 3200 mm,
-Width : 1320 mm,
-Height : 2700 mm,
Height over the floor level : 2600 mm,
Weight : 13 tons.
