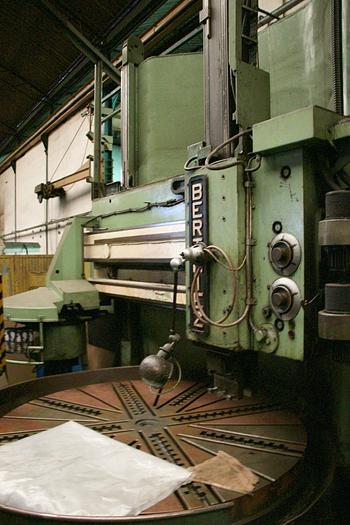

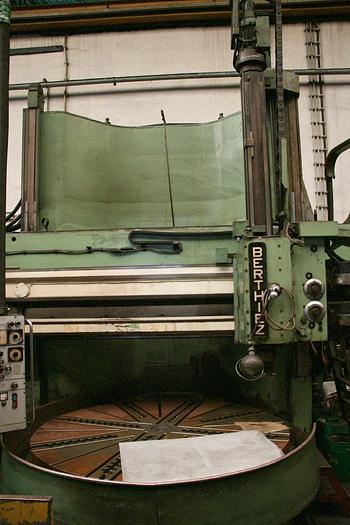

Lathe Vertical Turning Berthiez TFM200
![Used Lathe Vertical Turning Berthiez TFM200](https://i.machineryhost.com/4e0d67e54ad6626e957d15b08ae128a6/6a1589303fd5a982d6daf88e71c9ca2f/large-used-lathe-vertical-turning-berthiez-tfm-200.jpg)
Specifications
Manufacturer | Berthiez |
Model | TFM200 |
Condition | Used |
Stock Number | MA2267 |
Item condition | Good condition |
Capacity tons | 2300 |
Description
Plateau diameter : 2050 mm,
Max turning diam : 2300 mm,
Max load capacity : 20 tons,
Max turning height : 2500 mm,
Ram travel : 1600 mm (vertical),
Ram section : 224 x 224 mm,
Carriage travel from center to right/left : 1305/400 mm,
Cross rail vertical travel : 2200 mm,
Spindle motor power : 44 kw,
Spindle speed rotation: 1,6 - 200 rpm,
Atc : 12 positions,
Rapid feeds : 0,2 - 360 mm/min.
