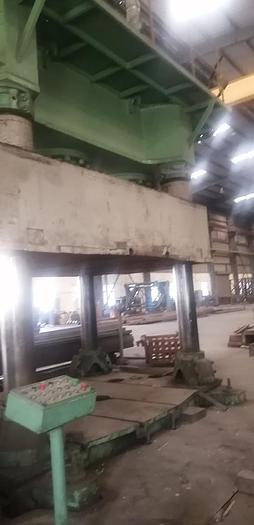

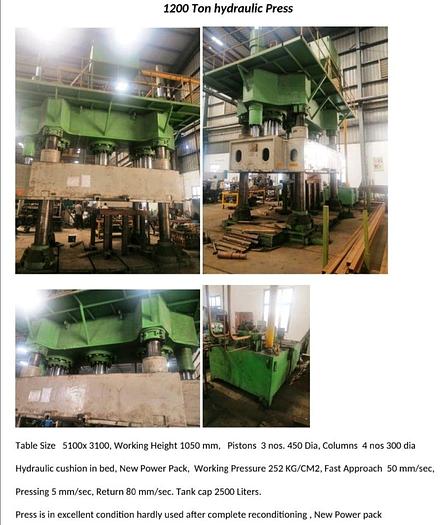

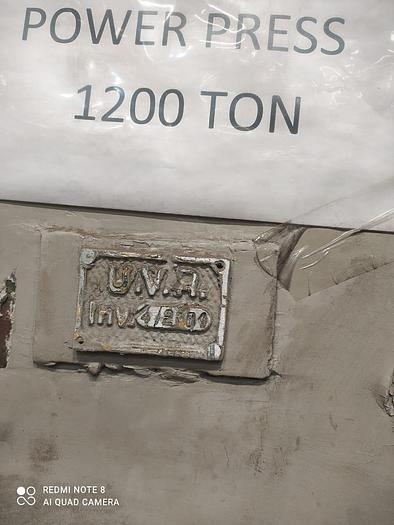

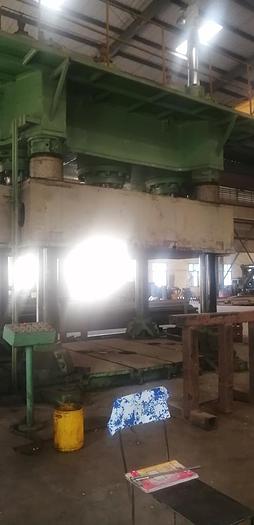

Press Forging Open Die Hydraulic UVR

Capacity : 1200 tons,

Table size : 5100 x 3100 mm,

Working height : 1050 mm,

Pistons : nos 3,

Dia : 450 mm,

Columns : 4 nos., 300 dia,

Hydraulic cushion in bed,

New power pack,

Working pressure : 252 KG/CM2,

Fast approach : 50 mm/sec,

Pressing : 5 mm/sec,

Return : 80 mm/sec,

Tank cap : 2500 liters.

Press weight : 124.5 tons.

a) 100 HP motor with Extension : 01 No.

b) Axial Plunger Pump (150 LPM) : 01 No.

c) Vane Pump (150 LPM) : 01 No.

d) Motor 5 HP : 01 No.

e) Plunger Pump & Vane Pump (5 LPM + 32 LPM) : 01 set

f) D C Valve 20 size : 03 Nos.

g) Relief Valve 20 size : 02 Nos.

h) Motor 15 HP : 01 No.

i) Plunger Pump  (20 LPM) : 01 No.

j) Vane Pump (32 LPM) : 01 No.

k) PCM : 01 No.

l) Cooler Unit (Motor, Pump, Filter & Cooler)(Air-Cooler) : 01 No.

m) Gauge Panel : 01 No.

n) Prefil & Exhaust Valve (PV-80 size) : 03 Nos.

o) Power-pack Tank (2500 LPM capacity) : 01 No.

p) Prefil Tank (500 LPM capacity) : 01 No.
