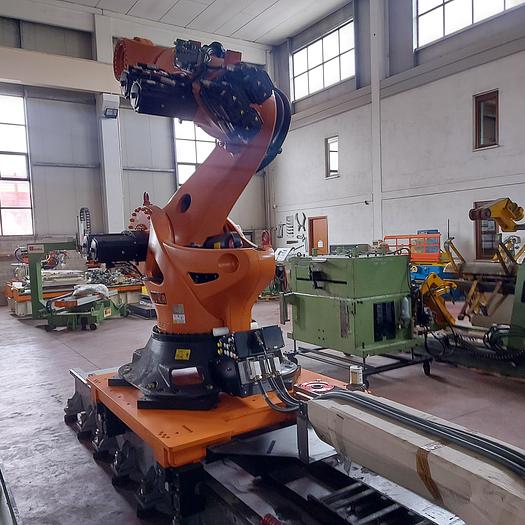

Robot KUKA KR1000TITAN

6 axes + Linear Axe

Load Capacity : 1000 kgs,

Arm Extension (Reach) : 3200 mm,

Rated payload : 1000 kg,

Max. payload : 1000 kg,

Max. Supplementary load rotating column / link arm / arm : 0 kg / 0 kg/ 100 kg,

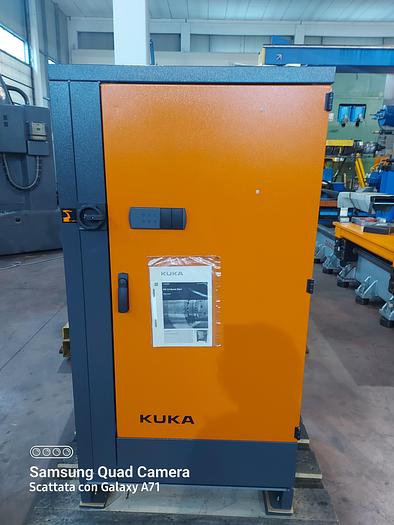

Controller KRC4 complete With Teach Pendant KCP4, Cables set,

Profinet – Ethernet – Documents Set (CD) – CE declaration,

Pose repeatability (ISO 9283 : +- 0.1 mm,

Number of axes : 6,

Mounting position : Floor,

Footprint : 2000 x 2000 mm,

Robot Weight : 4600 kgs,

Controller Weight : 180 kgs

Motorized Linear Axis (7th axe of robot),

original GUDEL (Germany) with 3000 mm stroke,

With lubrication system of Bearings, Cables Gland,

Dimension : 5900 x 1600 x 700 mm,

Weight : 4500 kgs.
