Lathe Vertical Turning CNC Titan SC22/27
![Used Lathe Vertical Turning Titan SC22/27](https://i.machineryhost.com/4e0d67e54ad6626e957d15b08ae128a6/846cf6a2cf9c6f7c3e34832d2f9593cc/large-used-lathe-vertical-turning-titan-sc-22-27.jpg)
Specifications
Manufacturer | Titan |
Model | SC22/27 |
Year | 2000 |
Condition | Used |
Stock Number | MA2273 |
Item condition | Very good condition |
Capacity tons | 2600 |
Description
Max. Turning dia. : 2600 mm,

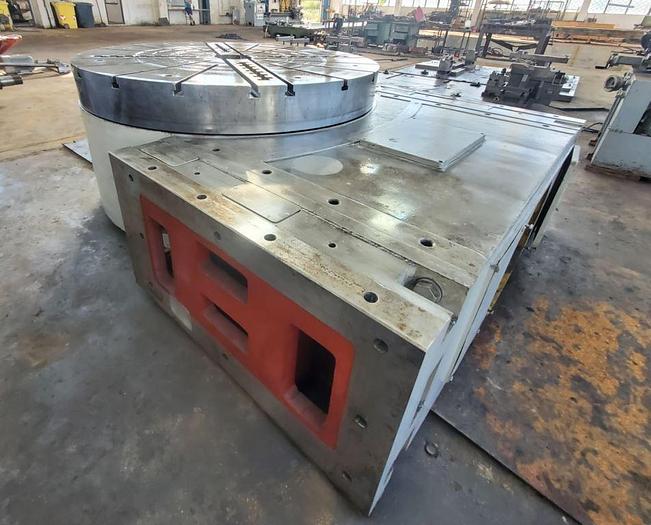

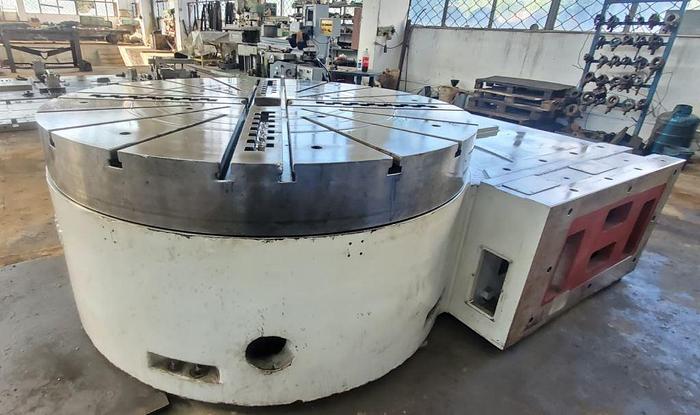

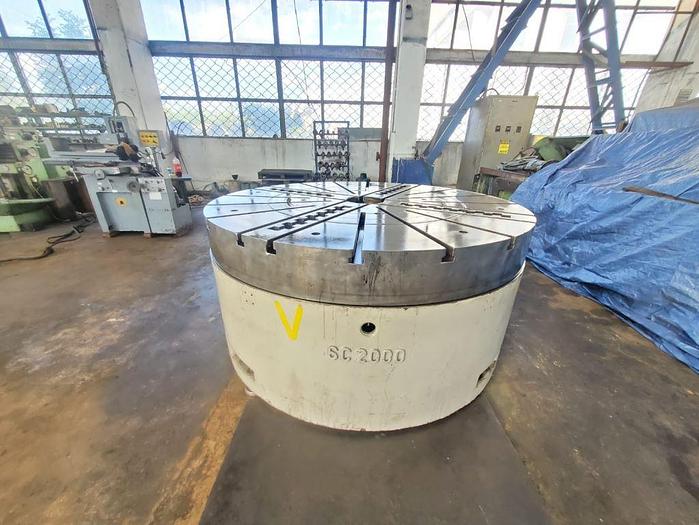

Table diameter : 2000 mm,
Max. Table load : 12 tons,
Max. Admitted workpiece height : 1500 mm,

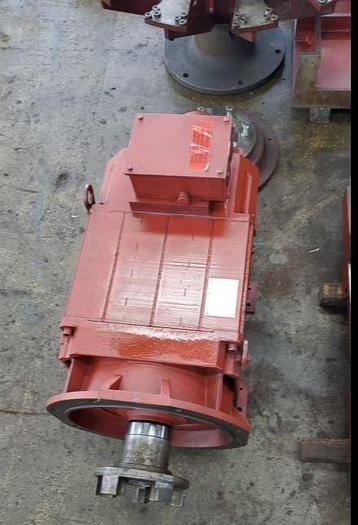

Main motor power : 55 kw,
Table speed range : 1-92 rpm,
Left-hand head travel : 1200 mm.
Total machine weight : 33 tons,

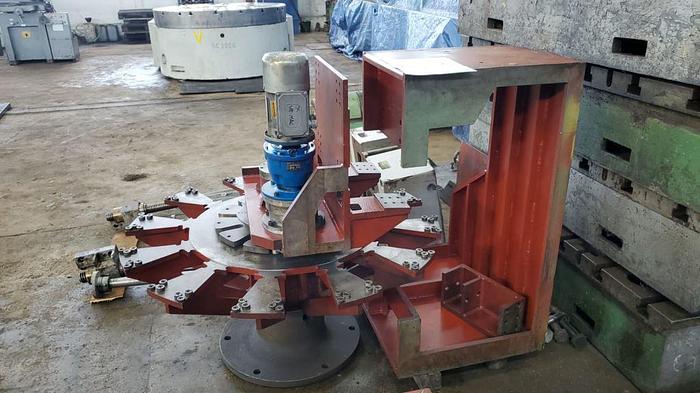

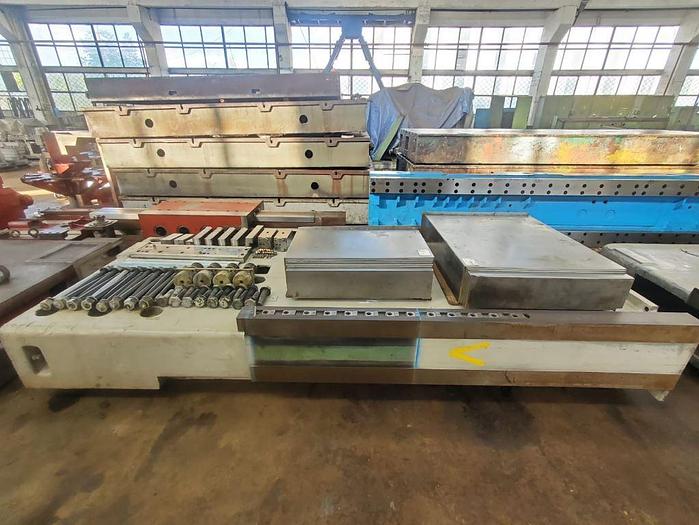

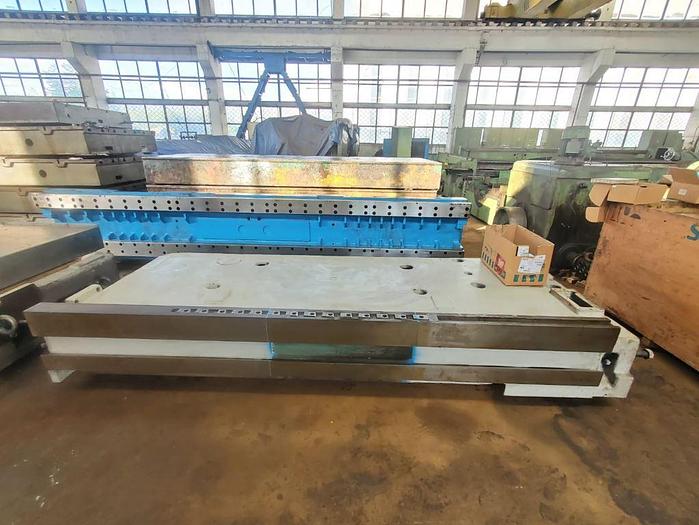

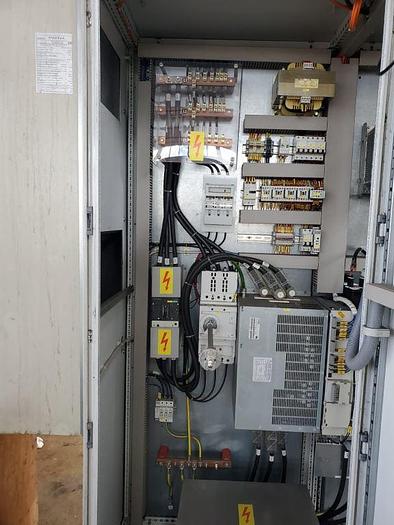

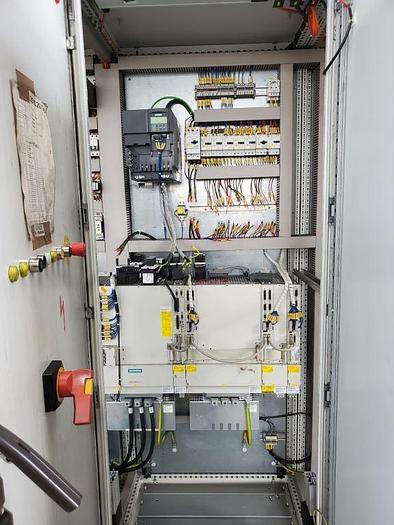

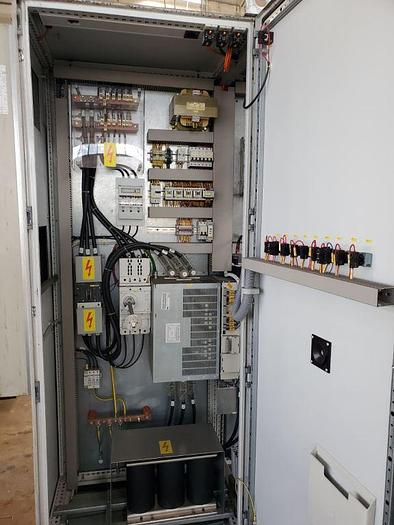

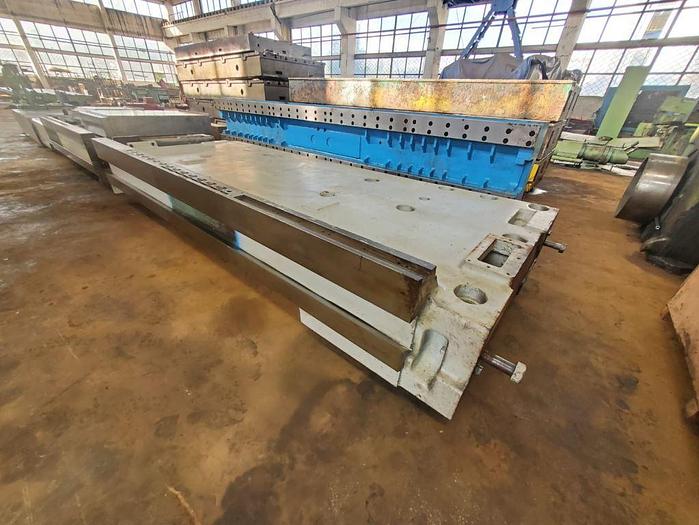

The lathe has regrinded guideways, new electric cabinet, new Siemens motors, ATC, etc.
