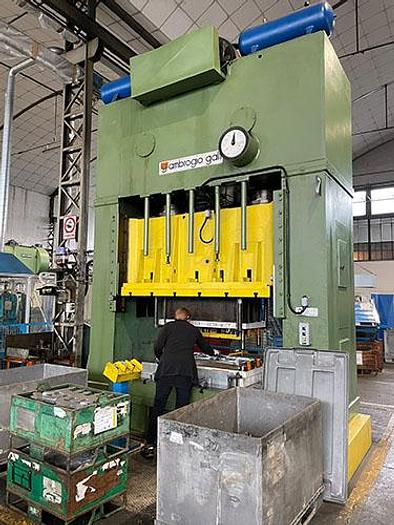

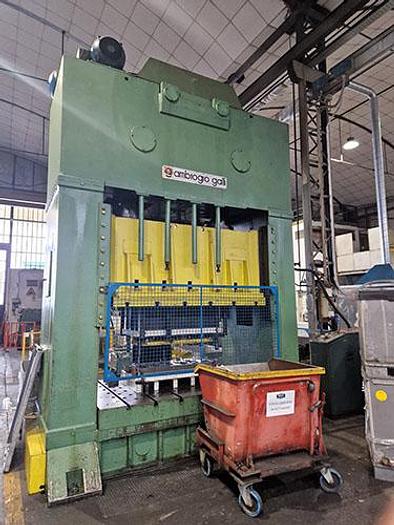

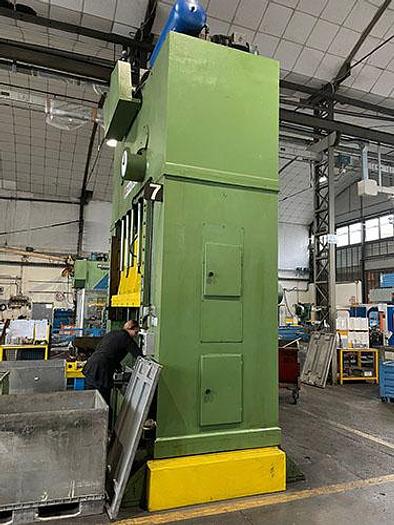

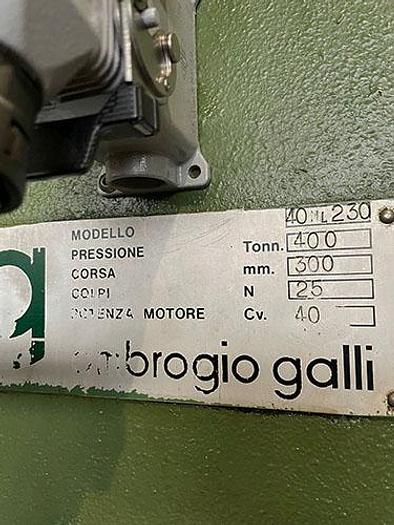

400 tons Press Sheet Stamping Mechanical Ambrogio Galli

H-frame Press

Capacity : 400 tons,

Number of conrods : 2,

Stroke : 300 mm,

Stroke per minute : 25,

Slide Adjustment : 150 mm,

Table dimensions (X-Y) : 2280 x 1400 mm,

Slide Dimensions (X-Y) : 2240 x 1350 mm,

Light at T.D.C.* : 1150 mm.

Technical manuals not available.
