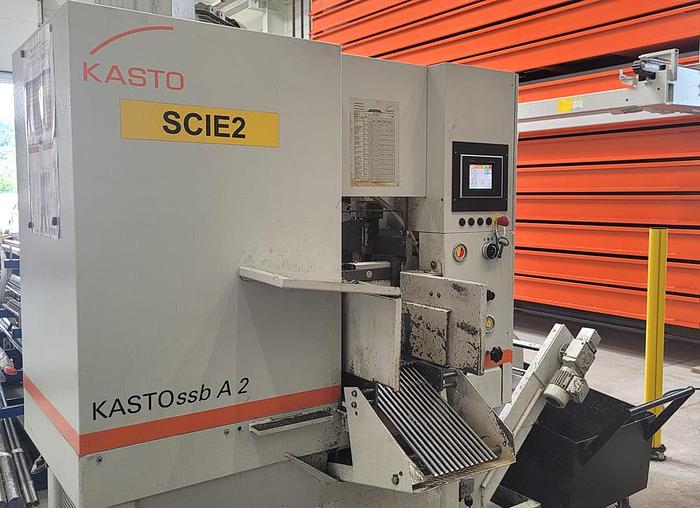

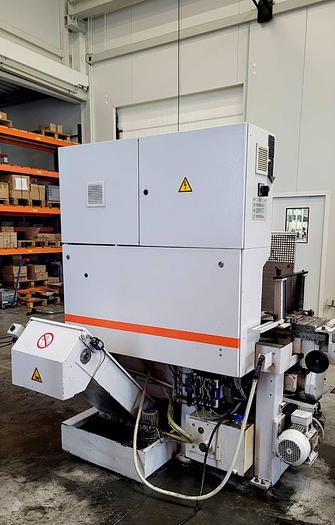

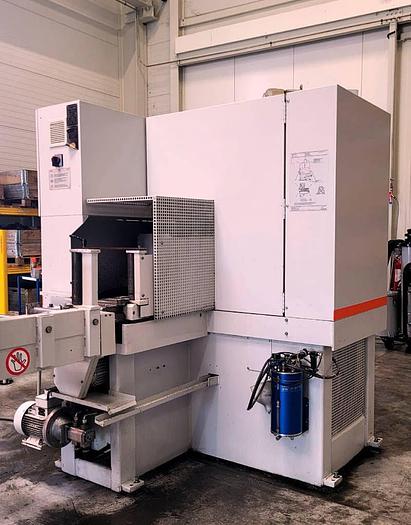

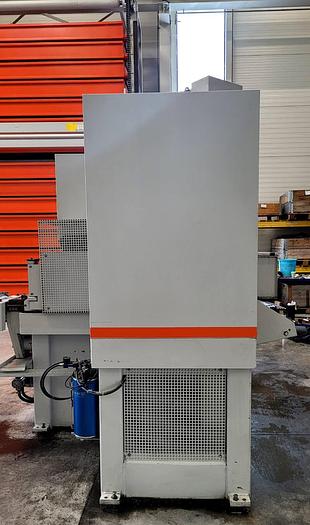

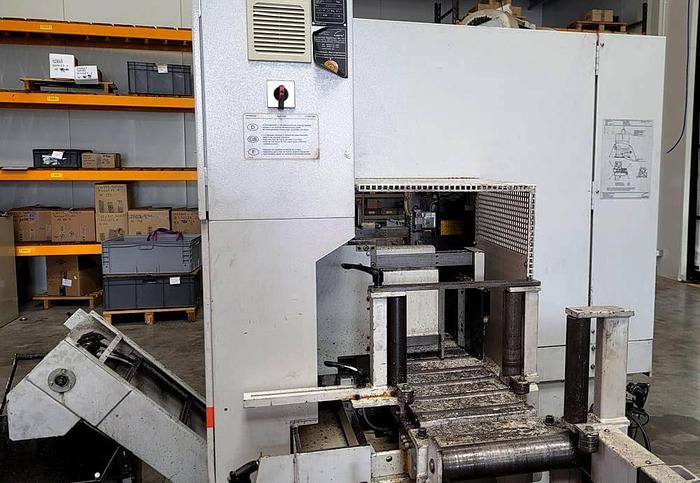

Bandsaw Machine Kasto SSB-A2

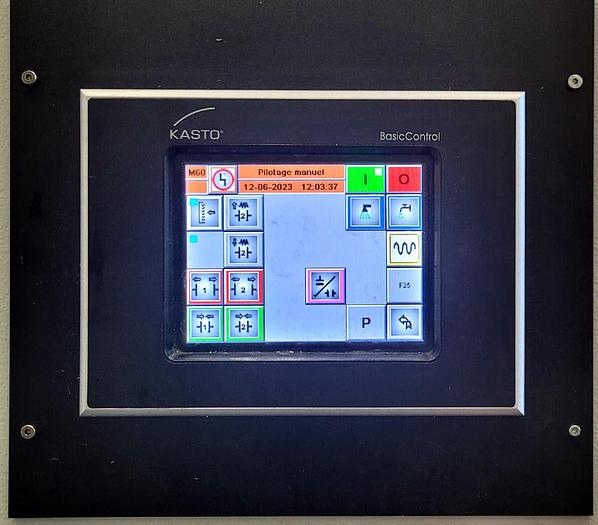

CNC kasto basic control

Max diameter: 260 mm,

Square section: 260 x 260 mm,

Minimum diameter: 10 mm,

Blade dimension: 4115 x 41 x 1.3 mm

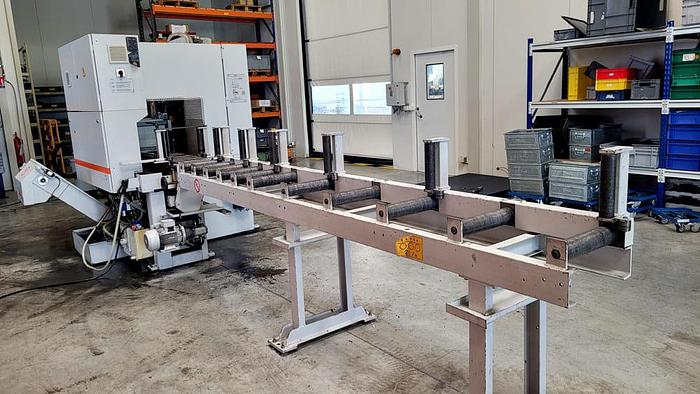

Roller conveyor: 4500 mm,

Cutting range : 260x 260 mm / 260 mm,

Cutting range bundle width :150 - 260 mm,

Cutting range bundle height : 0 - 200 mm,

Clamping range : 0 - 260 mm,

Smallest size to be cut : Ø 10 mm,

Shortest length of cut-off piece : 5 mm,

Minimal remnant length, automatic operation :110 mm,

Minimal remnant length, single cut : 10 mm,

Mass and weights

Length : 1670 mm,

Width : 2080 mm,

Height : 2130 mm,

Material support height : 950 mm,

Total weight : 2200 kg.

Performance characteristics

Total connected load : 9.5 kW,

Power of saw motor : 5.5 kW,

Cutting speed infinitely variable :15 - 125 m/min,

Automatic feed length, single stroke : 600 mm,

Multiple feed length : 9999 mm,

Clamping force of machine vice : 1100 - 6800 N,

Clamping force of feed vice : 1100 - 6800 N

Dimensions of saw blade : 4115 x 41 x 1.3 mm.
