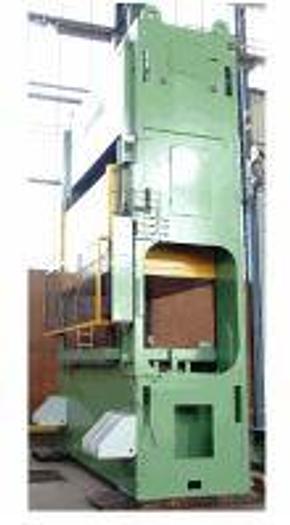

1000 tons Press Forging Hydraulic PO1000A Dieffenbacher

Hydraulic Double-Column Press

Capacity : 1000 tons,

Stroke : 350 mm,

Distance between Columns : 3030 mm,

Side Window : 1450 x 1400 mm,

Daylight Table - Ram (Stroke up) : 1.400 mm,

Surface of Table : 3000 x 2000 mm,

Table Height above Floor : 430 mm,

Surface of Ram 3000 x 2000 mm,

Speed Down : 300 mm / s,

Speed Up : 340 mm / s,

Working Speed : 18-44 mm / s,

Oil Volume : 4400 l,

Power Requirement : 2 x 90 + 10 kW,

Dimensions (W x D x H) : 4350 x 3650 x 7550 mm,

Height above Floor : 6050 mm,

Height beneath Floor : 1500 mm,

Weight : 87 tons.

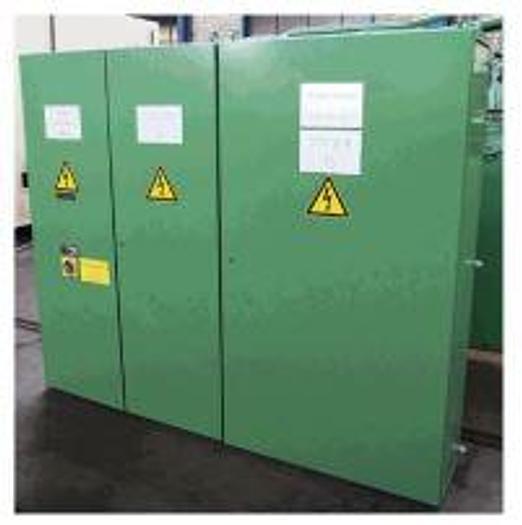

Control : Konventionell

with oilhydraulic drive, controllable dependent on pressure/time and way, ram interlocking, two-hand

operation.
