Press Trimming TMP Voronezh Russia K665
Specifications
| Manufacturer | TMP Voronezh Russia |
| Model | K665 |
| Year | 1971 |
| Condition | Used |
| Stock Number | MA2317 |
| Item condition | Good condition |
| Capacity tons | 800 |
Description

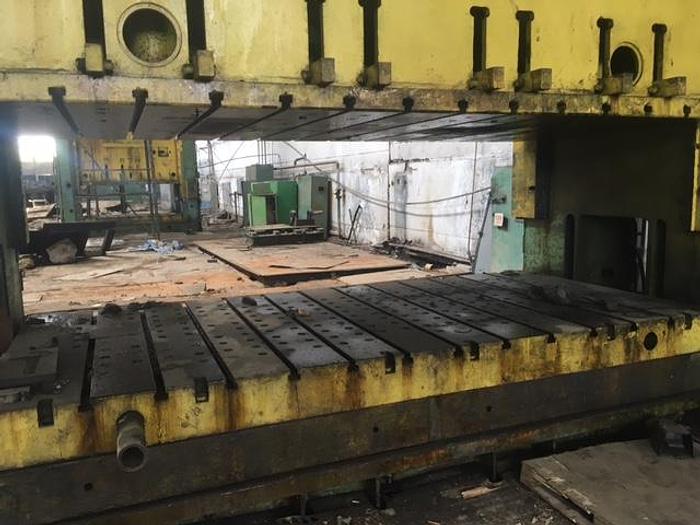

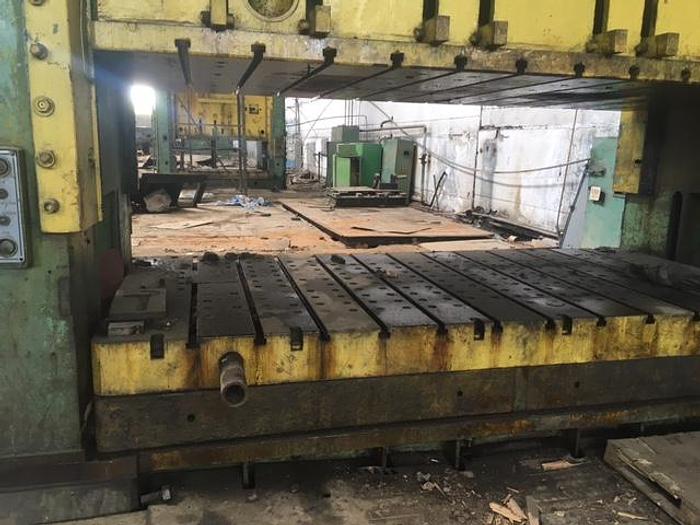

Press four-crank single action closed
Capacity : 800 tons,
Ram stroke : 800 mm,
Adjustment of stroke : 15 mm,
Shut height : 600 mm,
Distance between table and slider : 1500 mm,
Power of the engine of the main movement : 100 kW,
Table size width/length : 2000/4200 mm,
Machine dimensions (L x W x H) : 6090 x 3440 x 8900 mm,
Top (35 tons) and Table (46 tons),
Weight : 205 tons.
Closed single-action four-crank press K665 Designed for the manufacture of parts from sheet material using cold stamping operations: punching, hole punching, bending, shallow drawing, etc.
