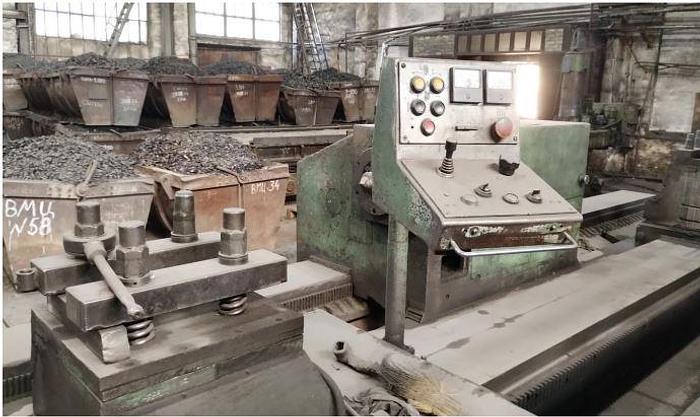

Lathe Heavy Duty Kramatorsk 1A826

Max. installing diam. over bed : 1300 mm,

Max. turning diam. over carriage : 1250 mm,

Distance between centers : 7100 mm,

Number of turning carriage : 2 pcs (two supports with driving motor),

Spindle speed range : 1 - 125 Rpm

Carriage traverse, X1/X2 axis : 625 mm,

Support traverse, Z1/Z2 axis,: 7000 mm,

Cross carriage feed X : 0,01 - 90 mm/rpm,

Longitudinal carriage Z1,,Z2 feed,: 0,159-78 mm/min,

Rapid travels X Z axis : 10000 mm/min,

Max. workpiece weight : 40000 Kg (40tn),

Tailstock quill diameter : 400 mm,

Tailstock traverse : 280 mm

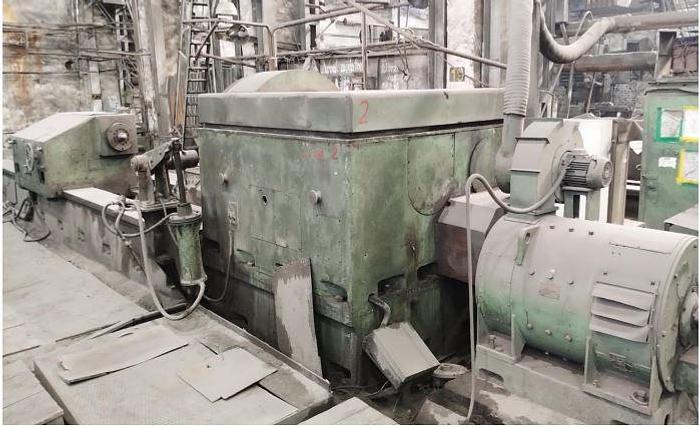

Power of main drive motor : 100 kW,

Weight of machine : 89.3 tons,

Dimensions (L x W x H): 14100 x 3350 x 2320 mm.

This machine equipped with:

Service Manual Books

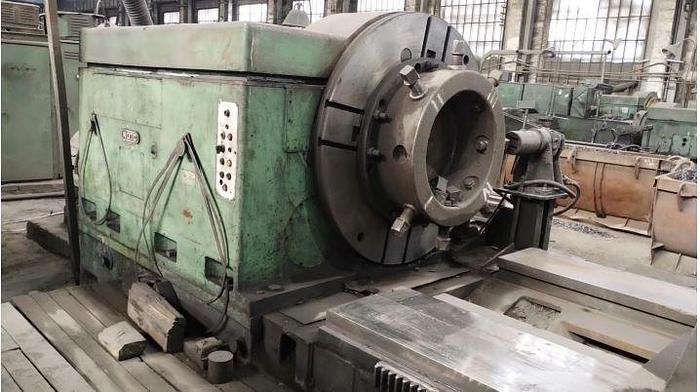

Faceplate diam.1250 mm, 4 jaws

Separate hydraulical unit 1 pc.

Special Turret, 2 stations tools

Open steady Rest (Lunette) 1 pc.

Hydraulical clamping tailstock
