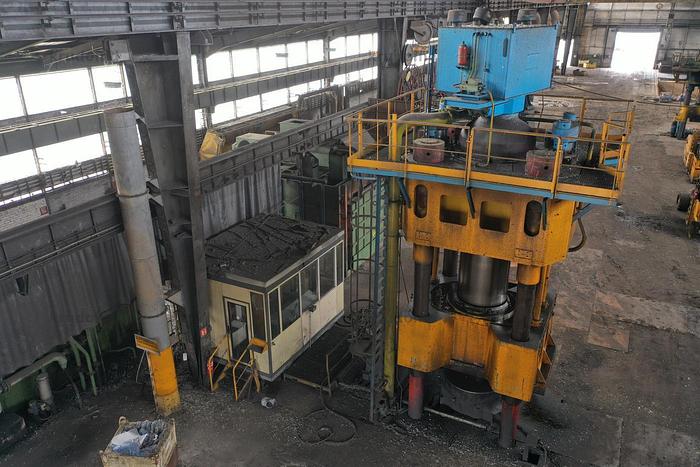

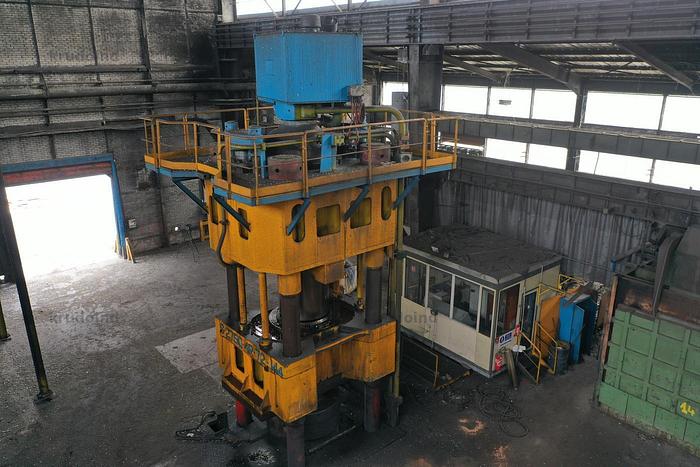

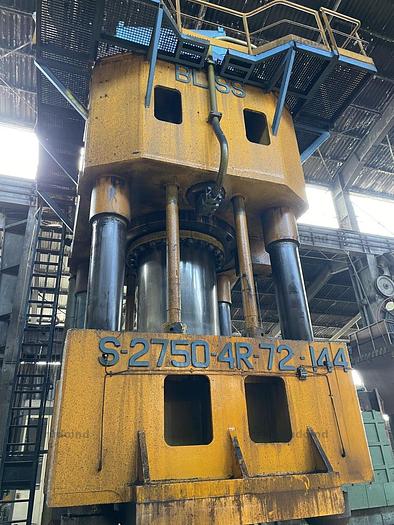

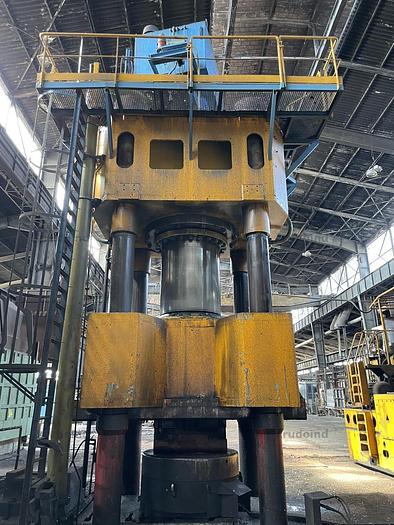

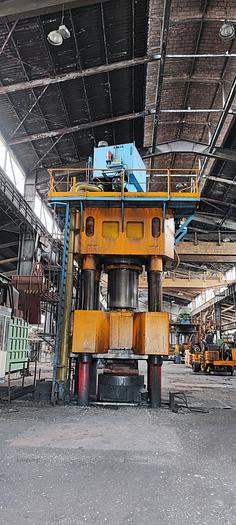

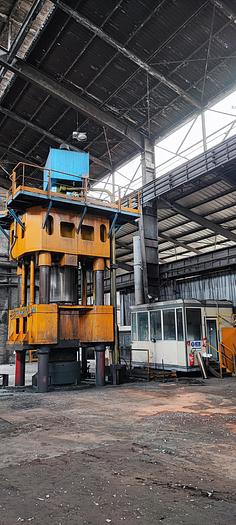

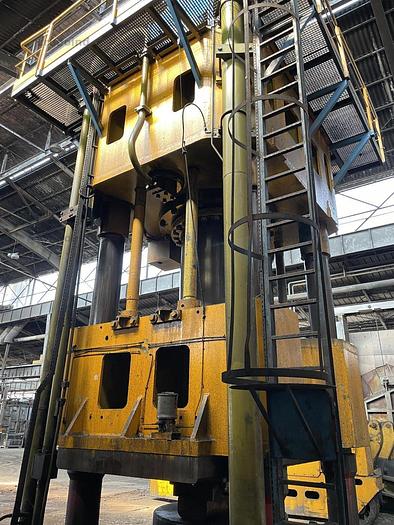

Press Forging Open Die Hydraulic Bliss

Capacity : 2750 tons,

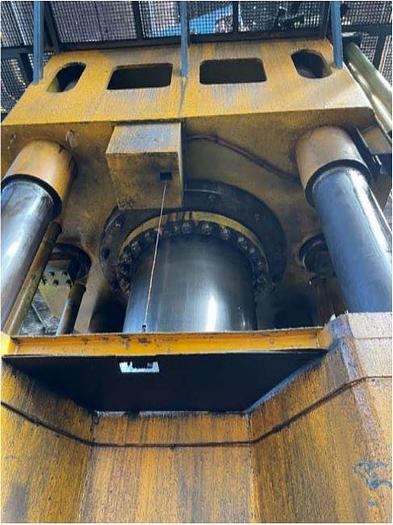

Slide speed : 56 mm/s at 2000 tons - 45 mm/s at 2500 tons,

Number of strokes/min in leveling cycle at 400 T : 72 strokes/min,

Slide stroke : 1.525 mm,

Passage between columns : 1850 mm2,

Maximum opening without removing the tool holder : 2800 mm,

Ejection in the lower table : stroke of 610 mm and force of 170 tons,

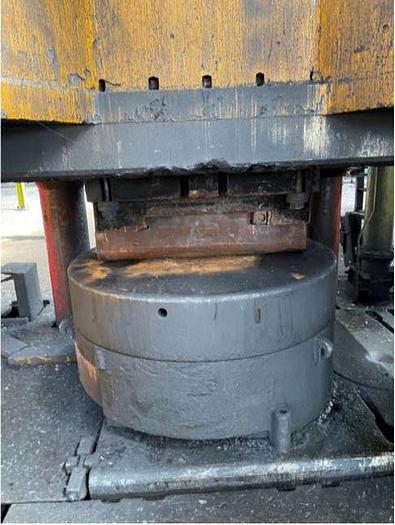

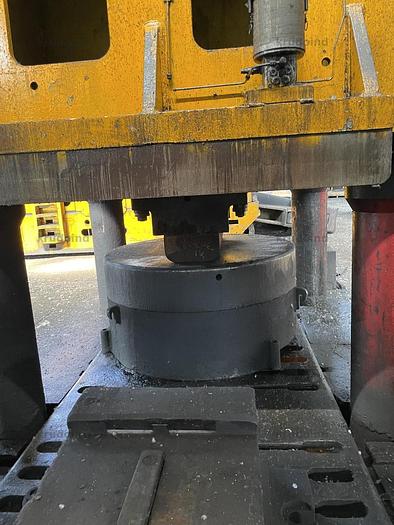

Lower table sliding by cylinder : capacity of 3 tools,

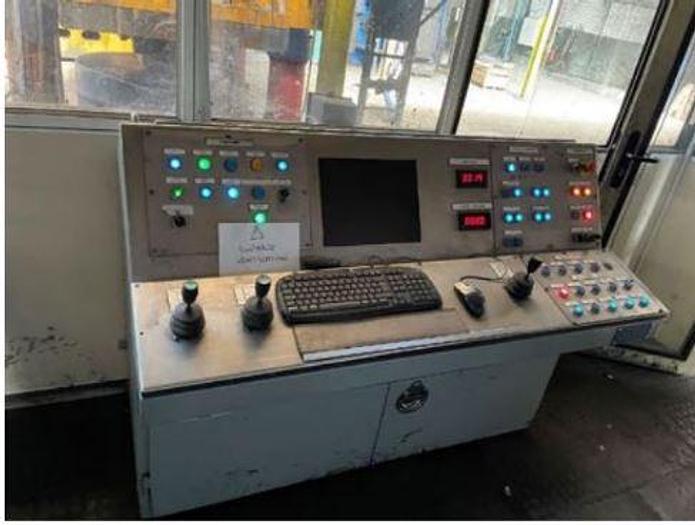

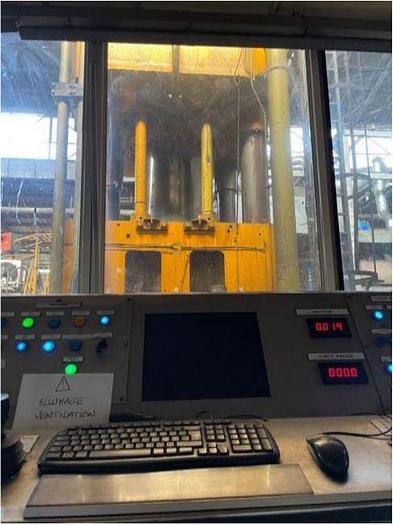

Positioning of the slide, as well as force and speed, are controlled by a programmable controller

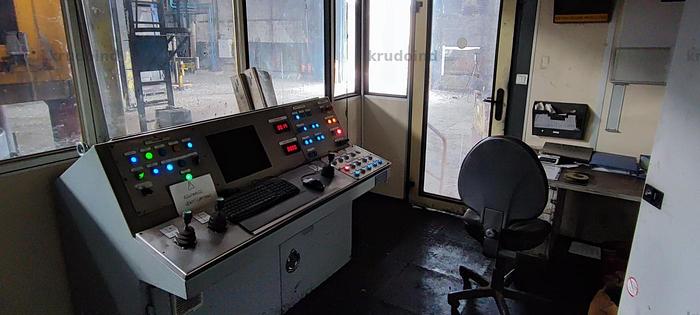

Development and storage of programs at the workstation on a microcomputer

YOM: 1996 / Revamped 2016.
