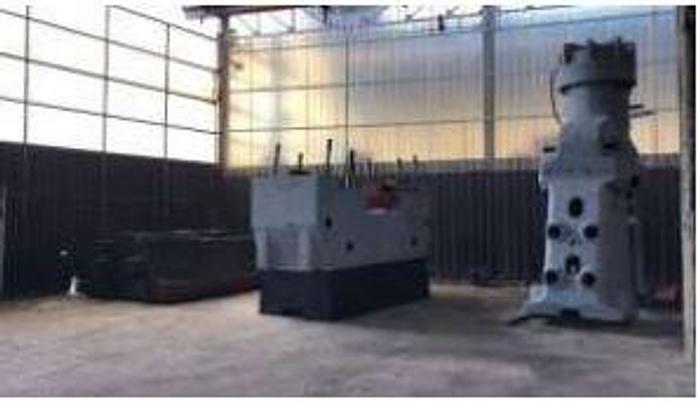

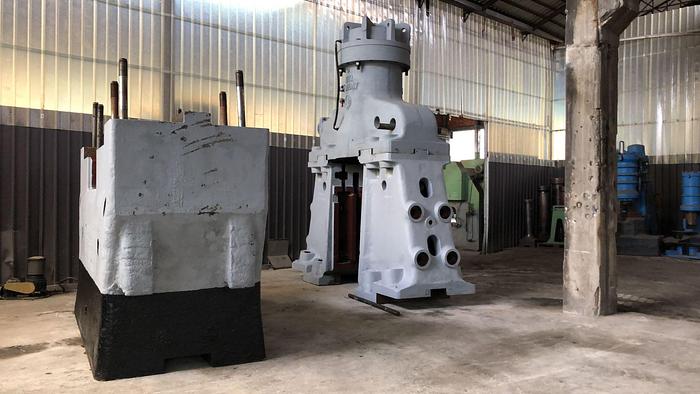

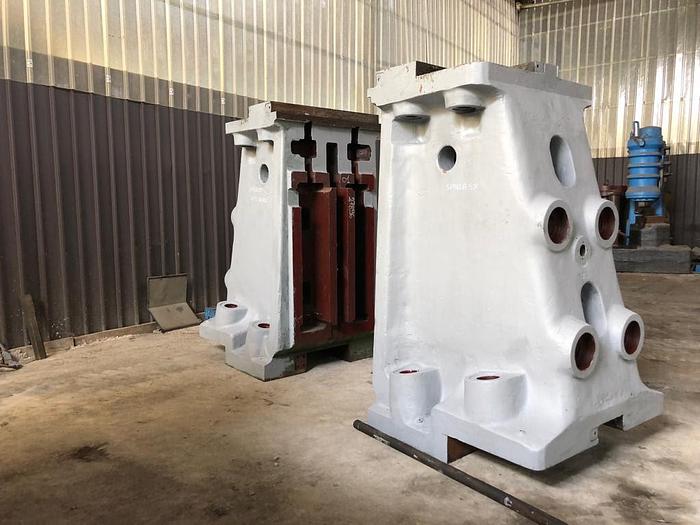

Hammer Forging Pneumatic MPM16000B

Double Acting Hammer

Capacity : 6 tons,

Energy of blow : 175 kJ,

Max. Stroke : 1000 mm,

Stroke per min : 80

Min. die thickness : 400 mm,

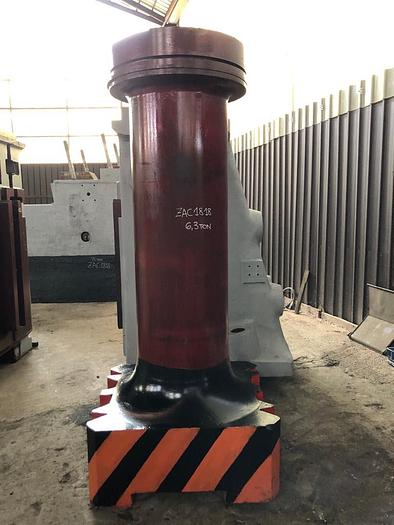

Ram weight : 6.3 tons,

Length of die seat in the ram : 900 mm,

Length of die seat in the die holder : 1250 mm,

Upper die max. weight : 1.8 tons,

Cylinder bore : 850 mm,

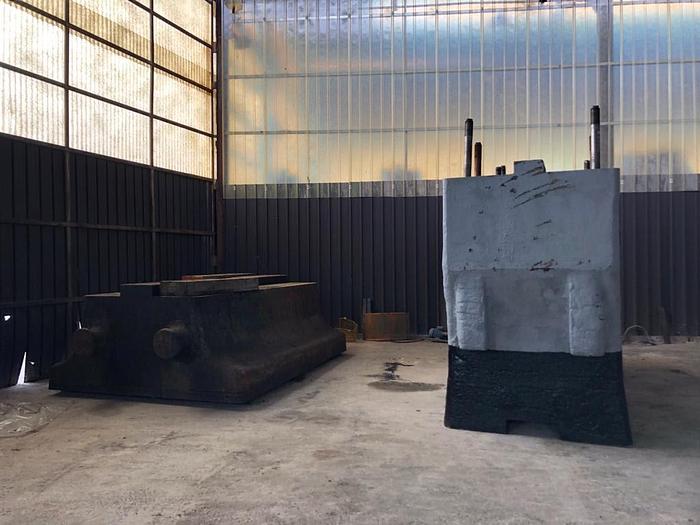

Anvil weight : 120 tons,

Total weight with anvil : 168 tons,

Width : 4080 mm,

Height : 7580 mm,

Depth : 2400 mm,

Light between guides : 850 mm.
