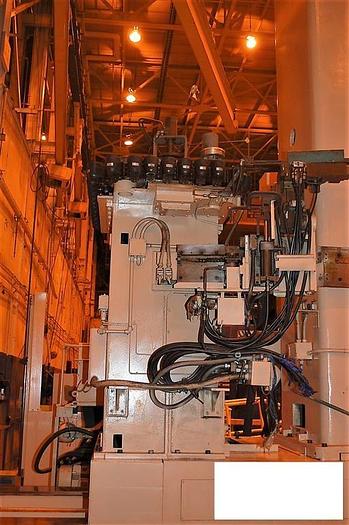

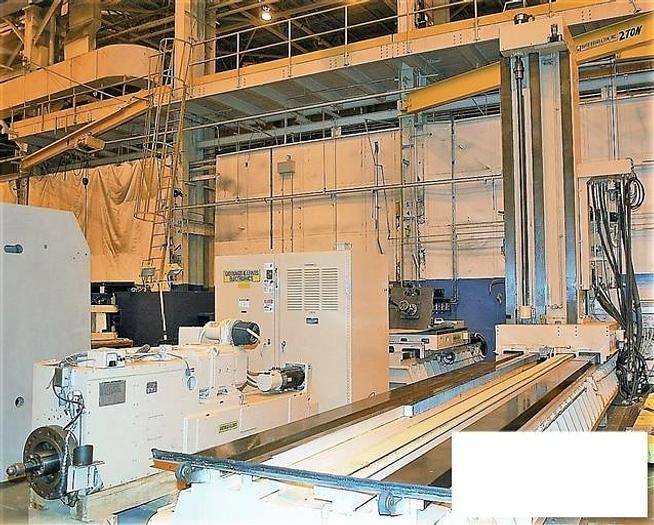

Borer Horizontal Floor Type CNC G60FX


Contact us for price

orCall +919920651051

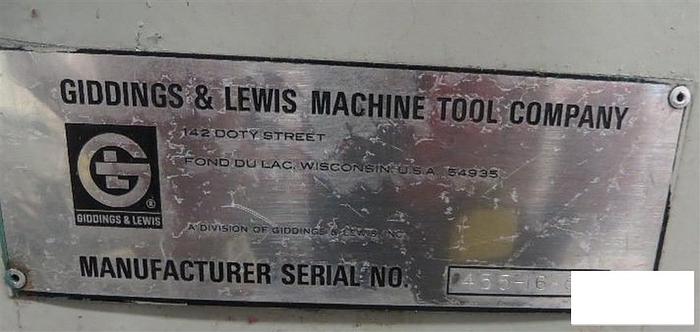

ManufacturerGiddings & Lewis
Stock NumberMA2365
Item conditionGood condition
Capacity tons152

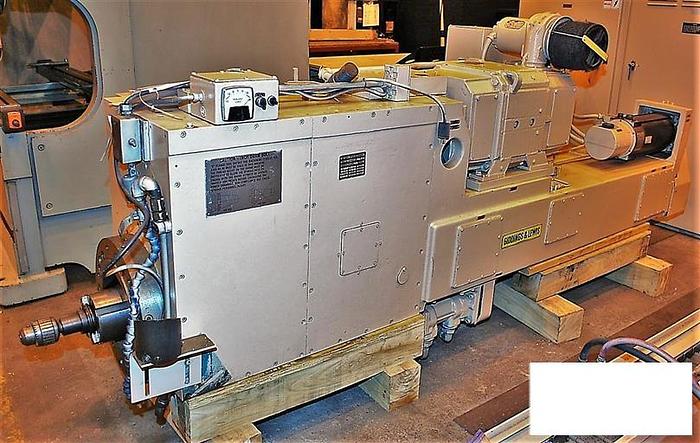

Spindle diameter : 152 mm,

Spindle taper : CAT 50,

Vertical headstock travel, y-axis : 2743 mm,

Column travel, x-axis : 7315 mm,

Spindle travel, z-axis : 1219 mm,

Spindle speeds, variable : 25-1120 rpm,

Feeds x & y axes : 7623 mm/min,

Feeds z-axis : 5083 mm/min,

Feeds w-axis : 3073 mm/min,

Rapid traverse : 8128 mm/min.

Equipped with:

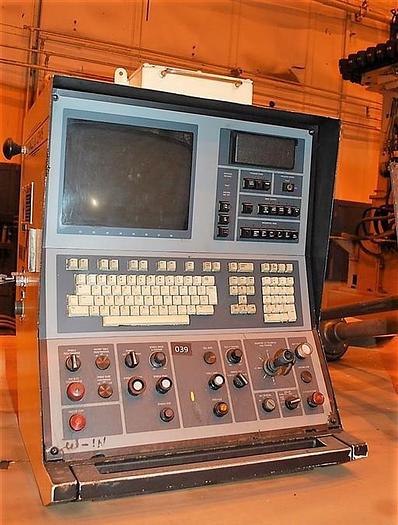

Giddings & lewis 8000b cnc control (new 1999)

40 station automatic tool changer

Inductosyn scales

Flood & mist coolant

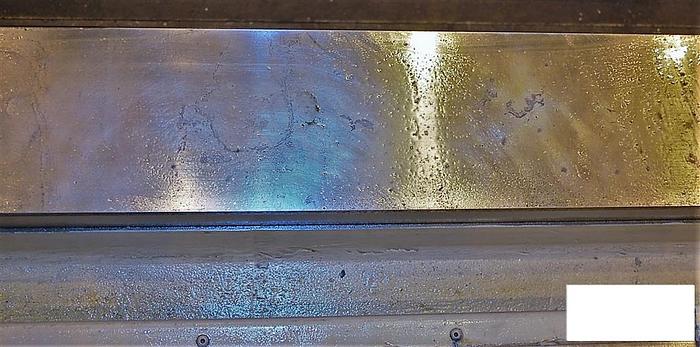

Hardened runway ways

Adjustable pendant for crt

Operators platform

Telescoping steel way covers on x-axis

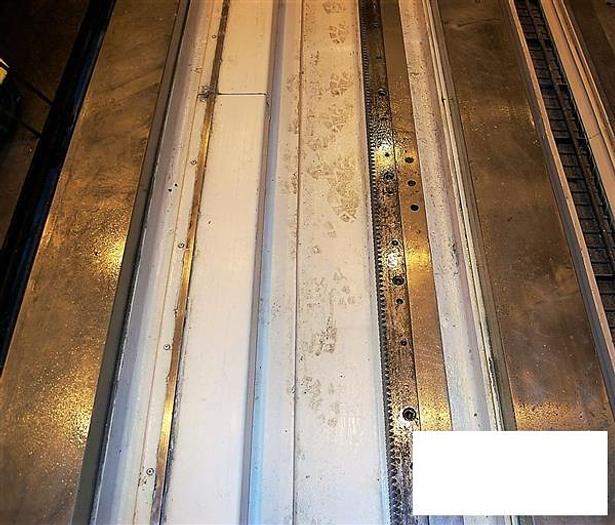

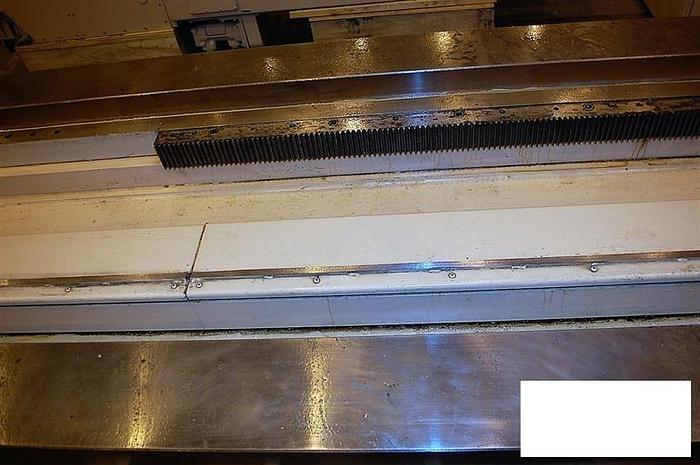

Double anti-backlash rack and pinion on x axis

Lubricool system

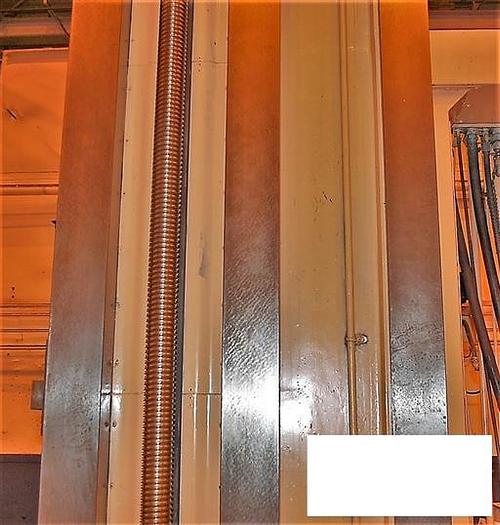

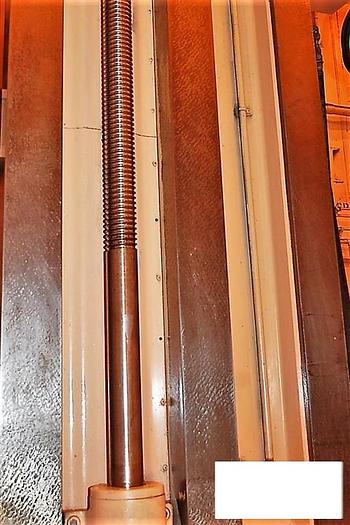

3-way column

Full length chip conveyor

30 kw spindle drive 460/3/60 cycle

Also available at additional cost:

Giddings & lewis right angle heads, giddings & lewis manual and cnc rotary tables, floor plates.
