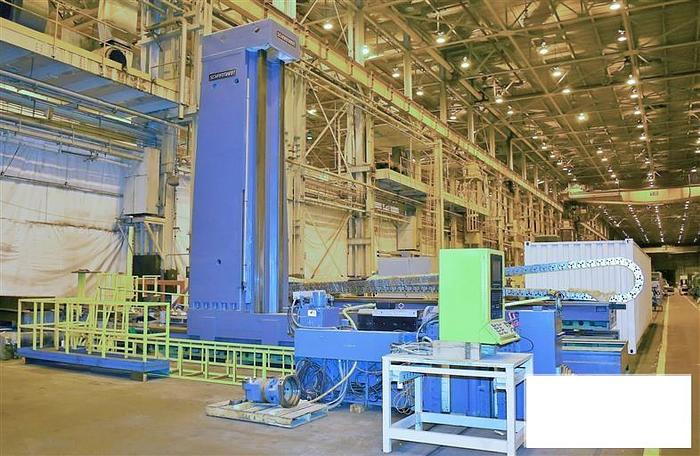

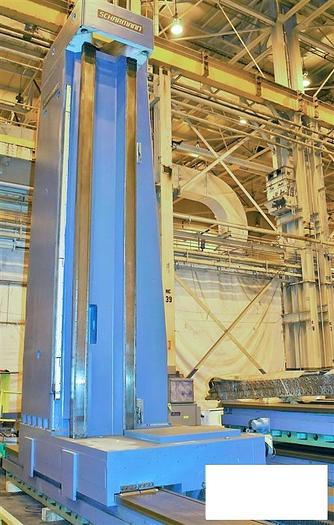

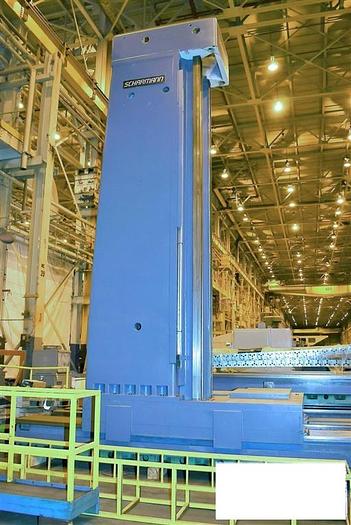

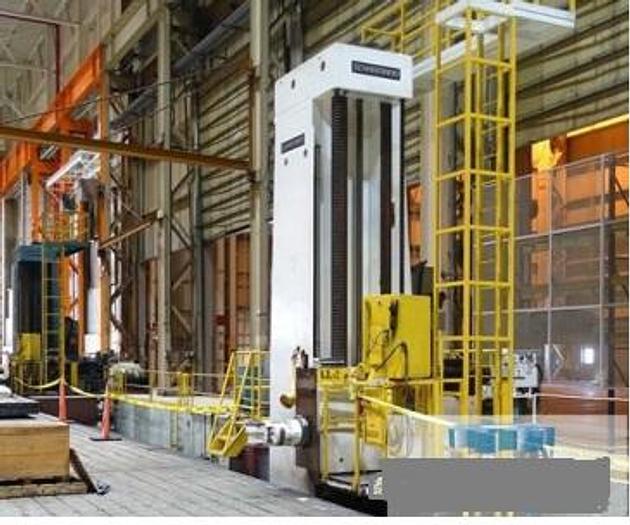

Borer Horizontal Floor Type CNC Scharmann BFT150

Spindle diameter : 150 mm,

Milling spindle diameter : 280 mm,

Spindle taper : CAT 50,

Ram cross section : 300 mm x 300 mm,

Vertical head travel, y-axis : 3500 mm,

Column travel, x-axis : 18100 mm,

Quill travel, z-axis : 595 mm,

Ram travel, w-axis : 701 mm,

Z & w axis, combined : 1296 mm,

Spindle speeds 5.5-1000 rpm,

Spindle feed range : 6096 mm/min,

Rapid traverse : 10058 mm/min,

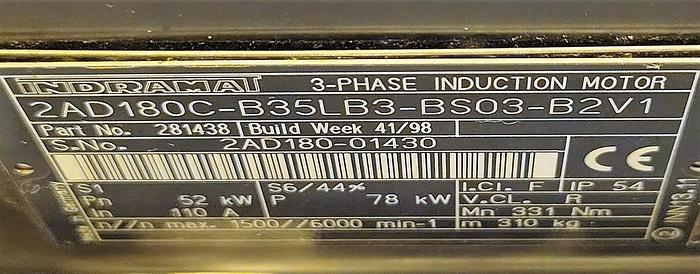

Spindle motor : 52 kw/ 78 kw.

Equipped with:

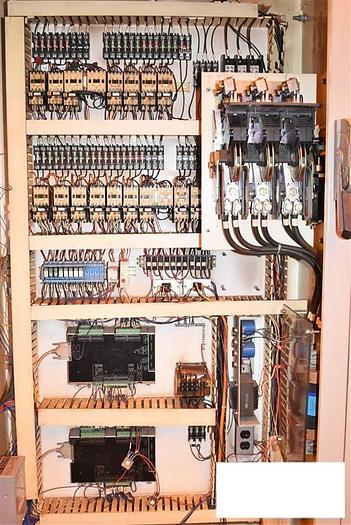

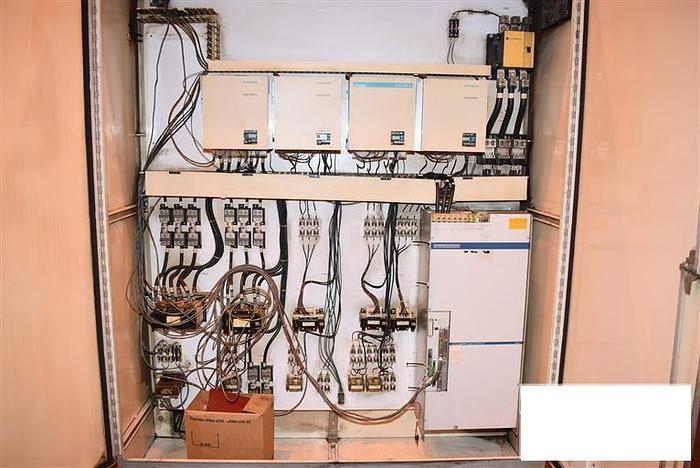

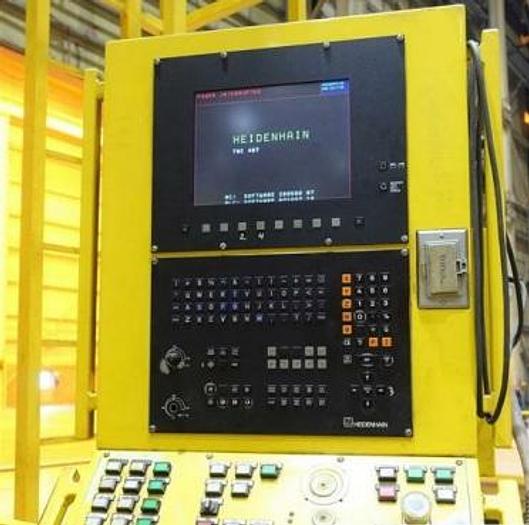

Heidenhain TNC 407 CNC controls

Ram and spindle travel

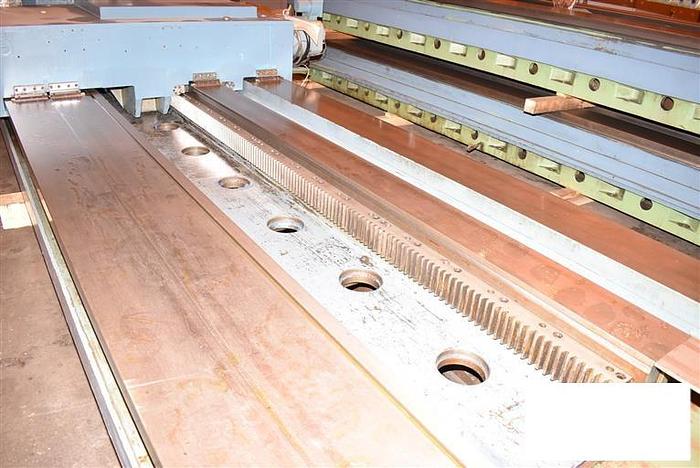

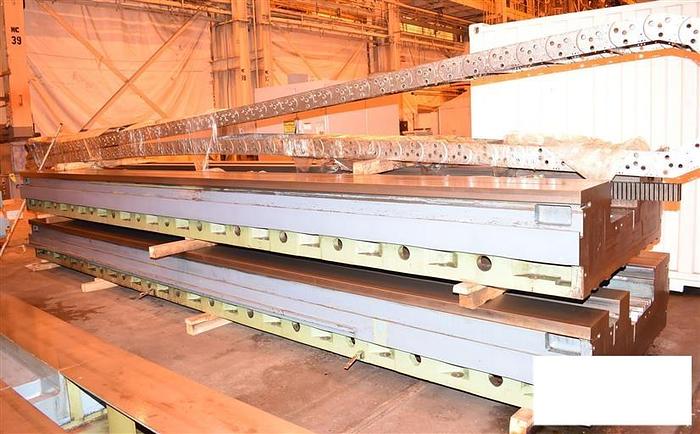

Sliding way covers x-axis bedways

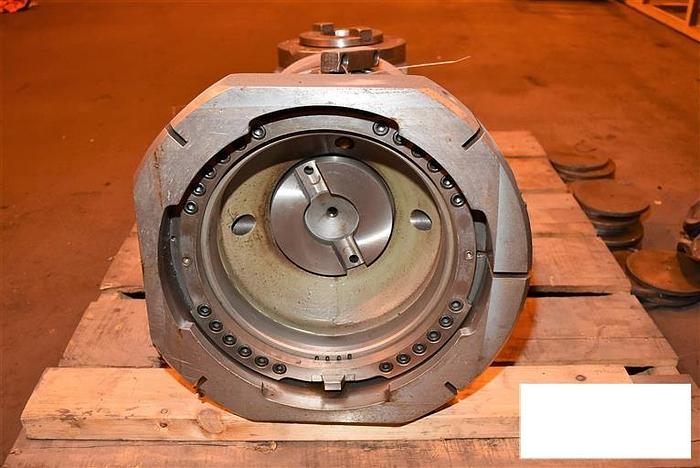

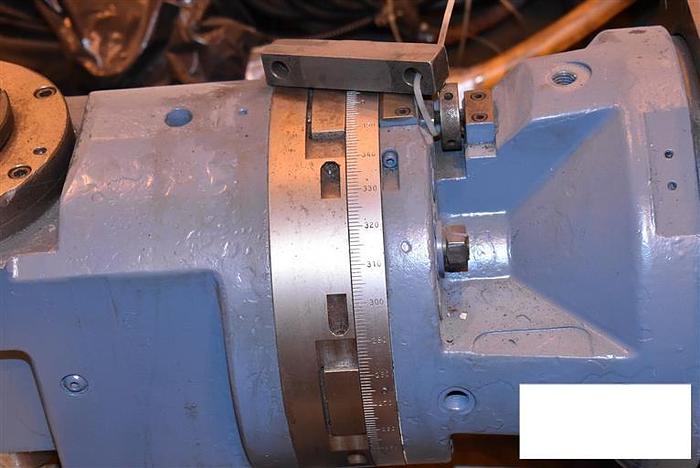

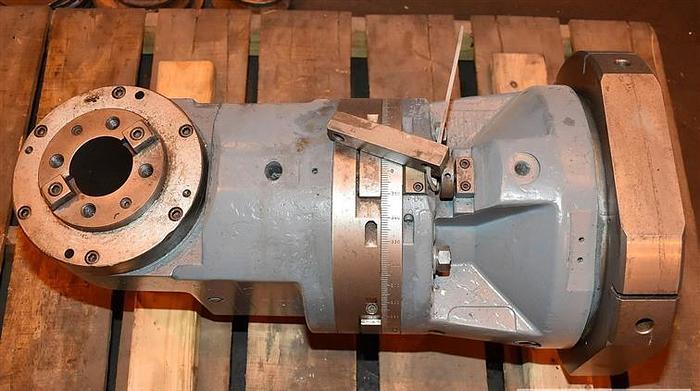

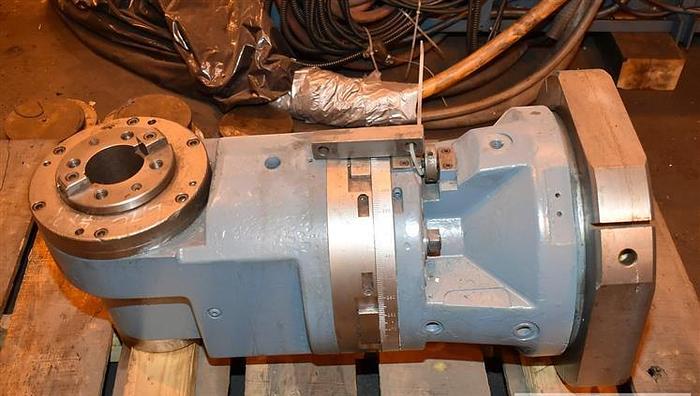

Right angle head with 1 degree manual indexing

Hardened ways

Also available at additional cost:

CNC & manual rotary tables, floor plates and angle heads.
