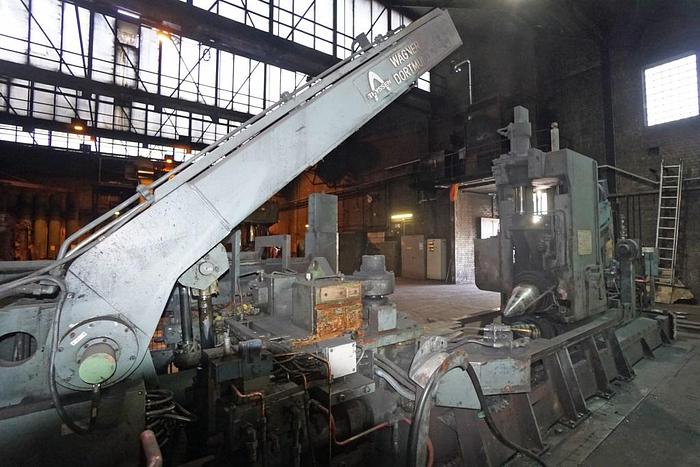

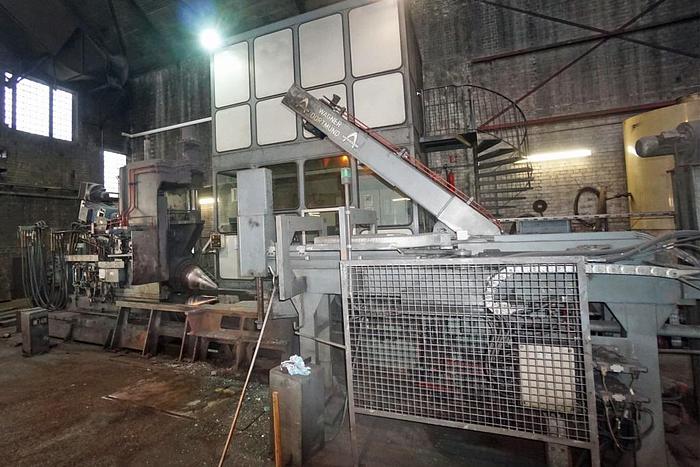

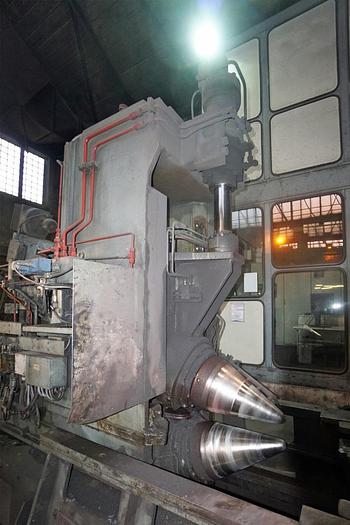

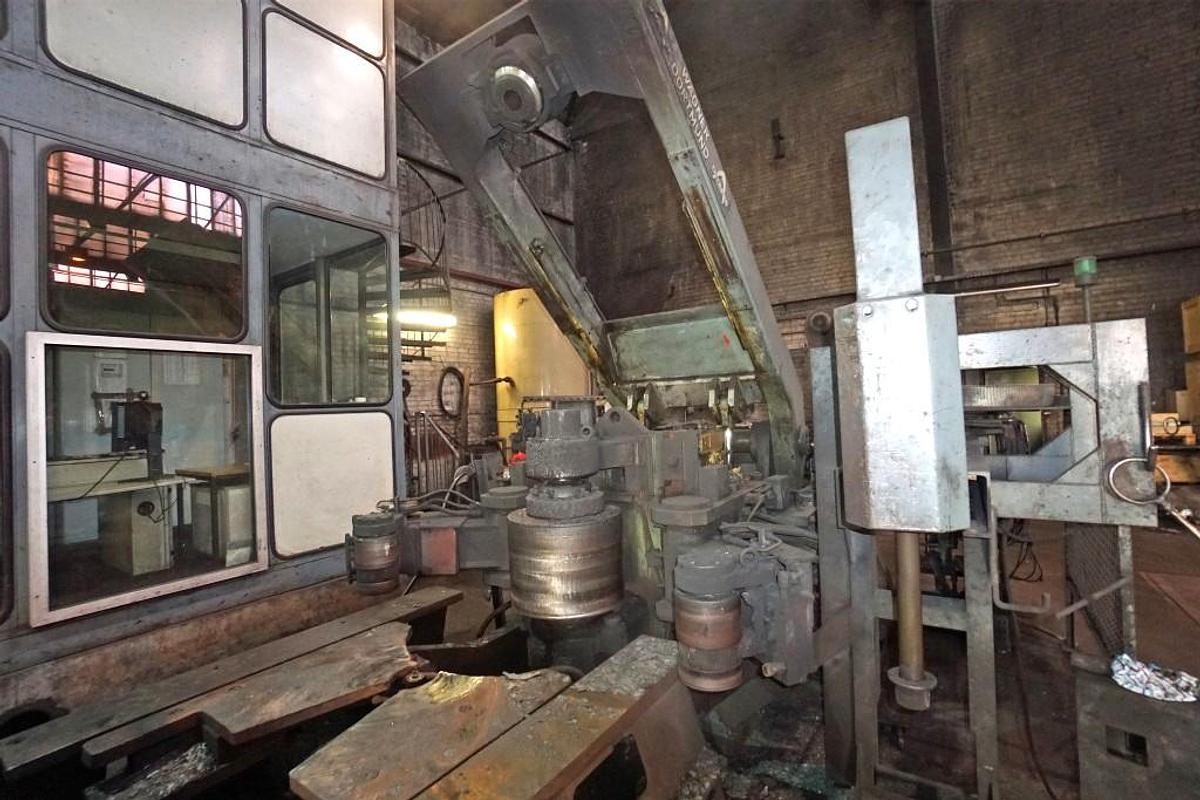

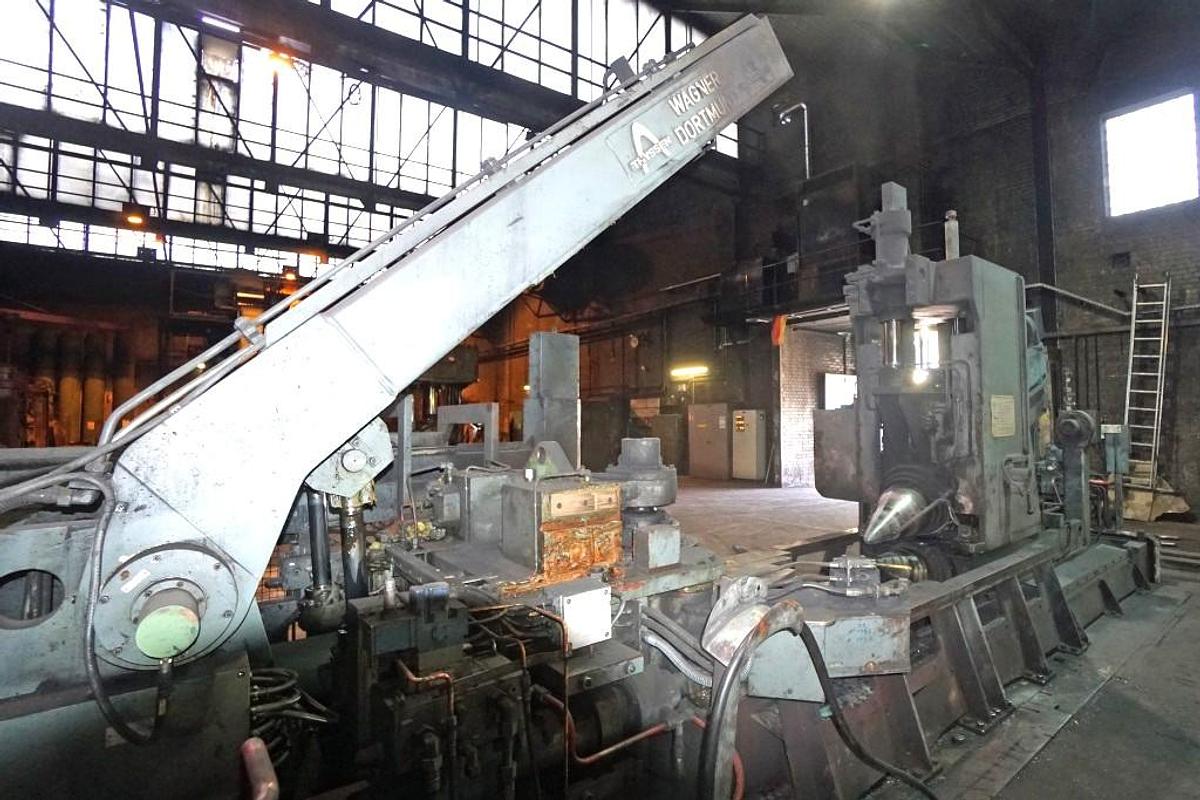

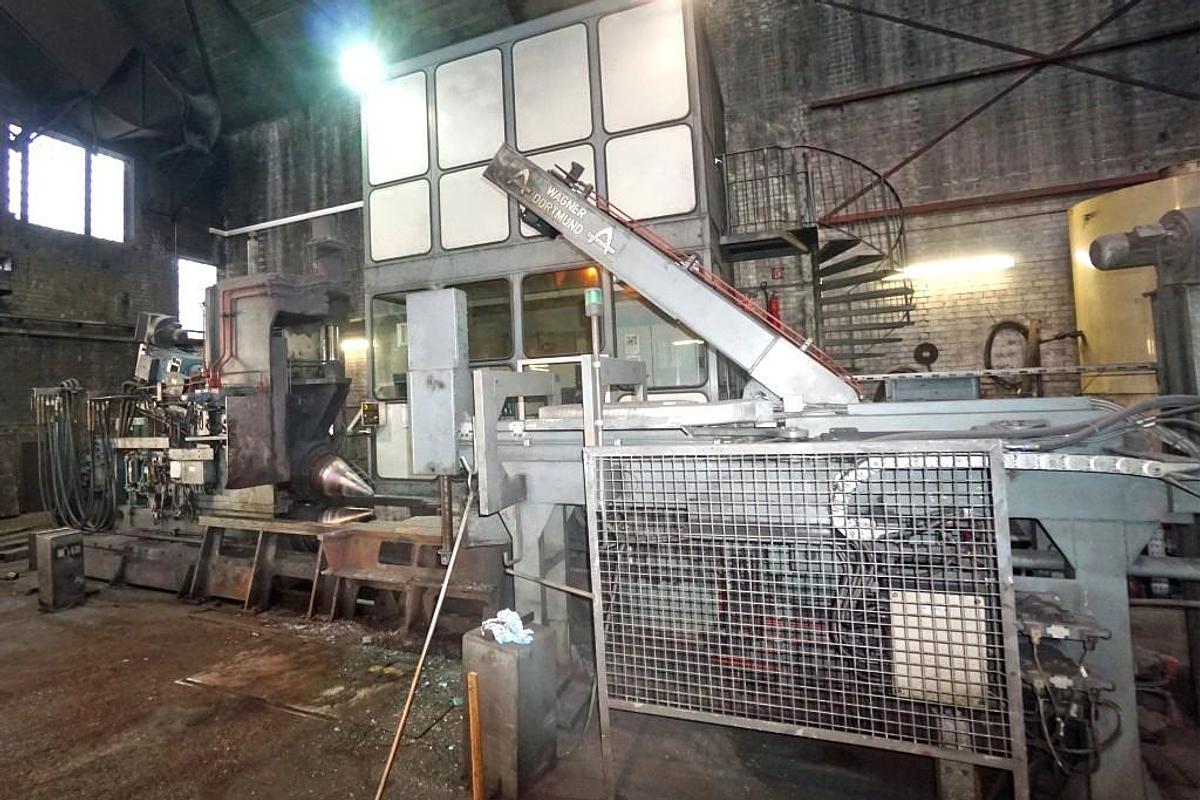

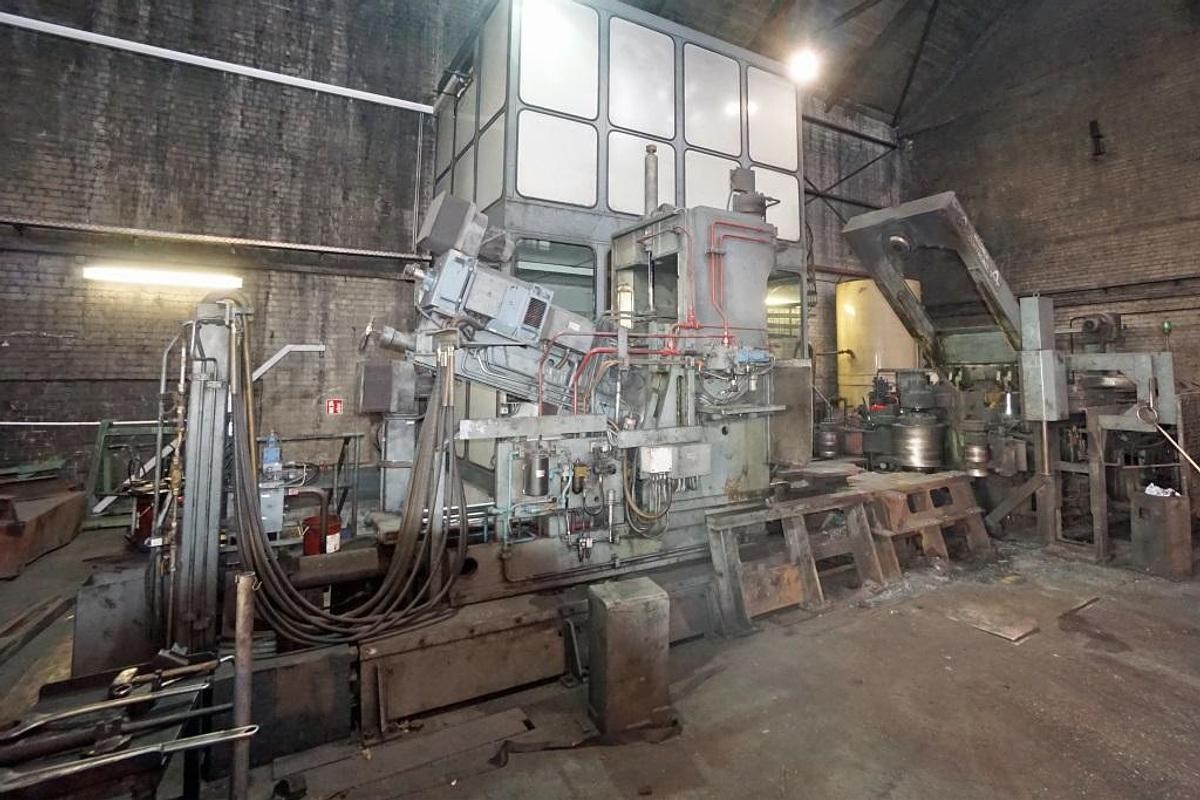

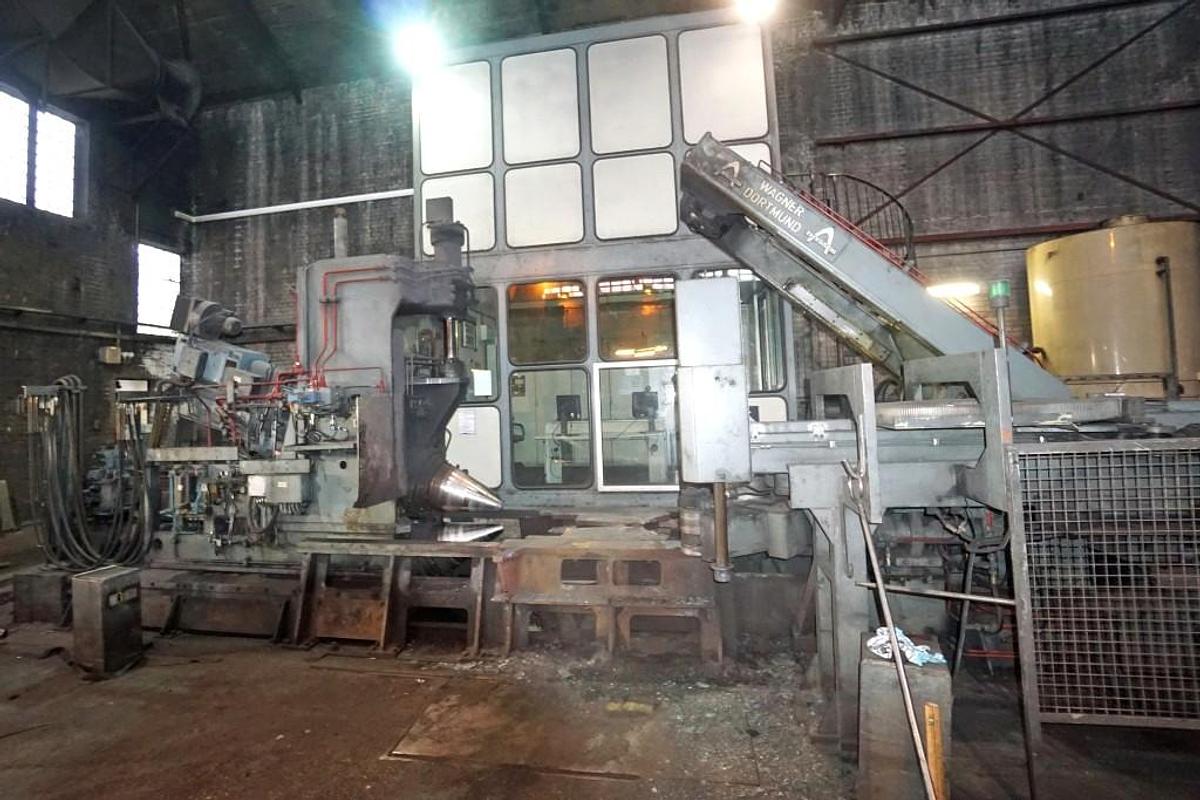

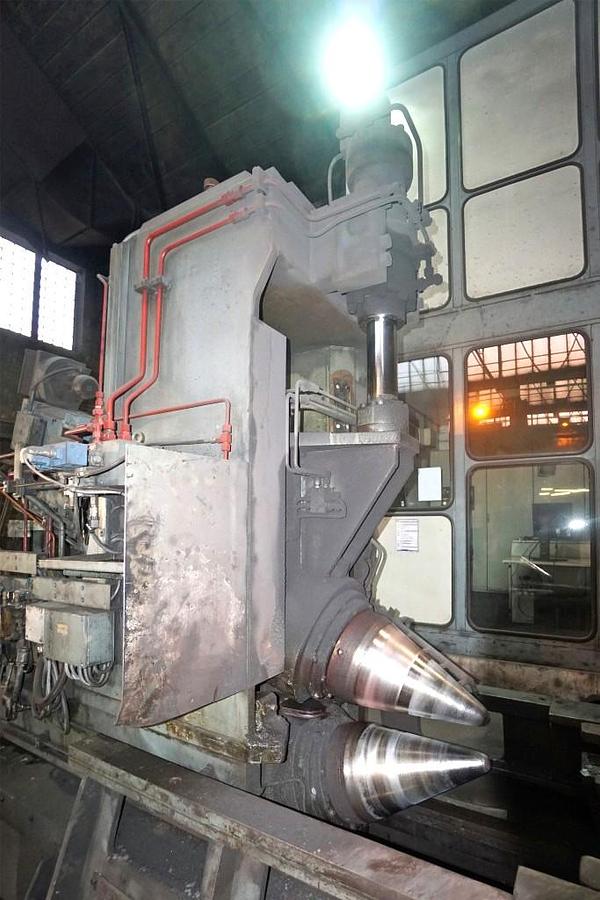

Ring Rolling Machine Wagner RAW 63/50-1600/360
Specifications
| Manufacturer | Wagner |
| Model | RAW 63/50-1600/360 |
| Year | 1992 |
| Condition | Used |
| Stock Number | MA2398 |
| Item condition | Good condition, stored in dismantled condition |
| Capacity tons | 1600 |
Description
Outside dia. : max. 1600 mm,
Ring height : max. 360 mm,
Radial force : 63 tons,
Axial force : 50 tons,
Main roll diameter : nominal 530 / max.700 mm,
Length of axial cylinder / Cone angle : 460 mm, 35°
Diameter of mandrel at maximum ring height : 125 mm,
Main roll adjustment : +/- 12 mm,
Adjustment of mandrel : +/- 12 mm,
Ajustage de la table de roulement : - 10 mm,
Ajdustment of centering rollers : + 15 mm,
Driving power main cylinder : 160 kW,
Driving power cone : 75 kW,
Driving power hydraulic system : 125 kW,
Drawing available.
Year of manufacturing 1992 / modernized in 2007 with vertical mandrel movement and separated centering arms.
