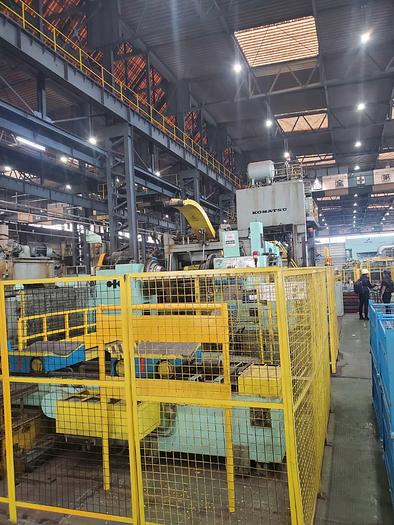

Blanking Line Komatsu

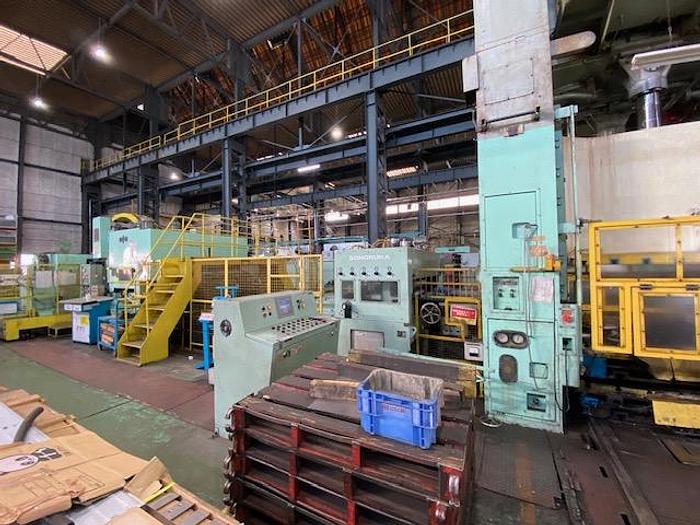

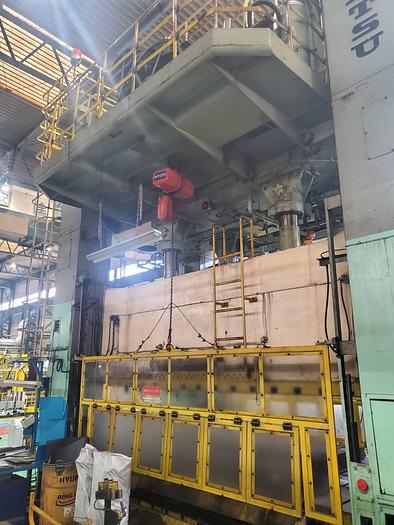

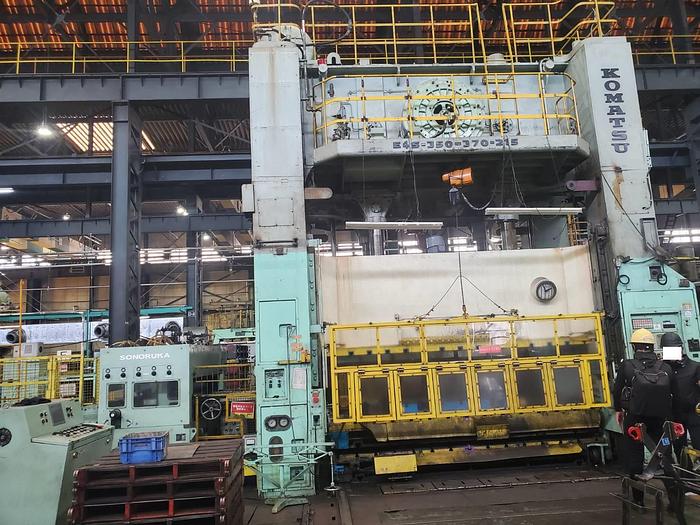

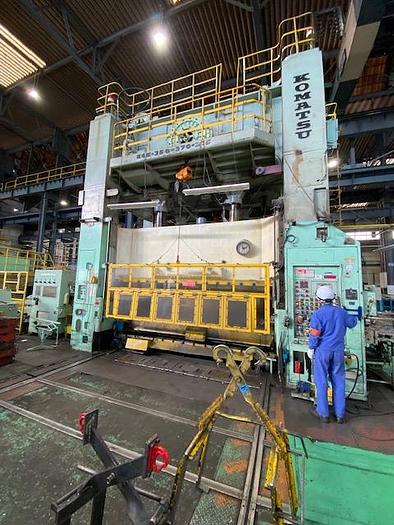

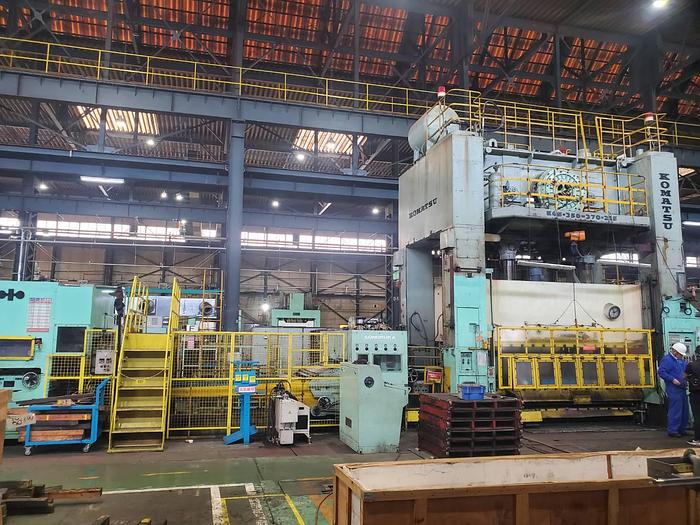

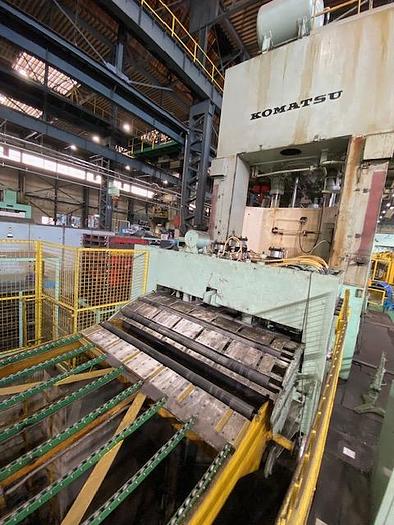

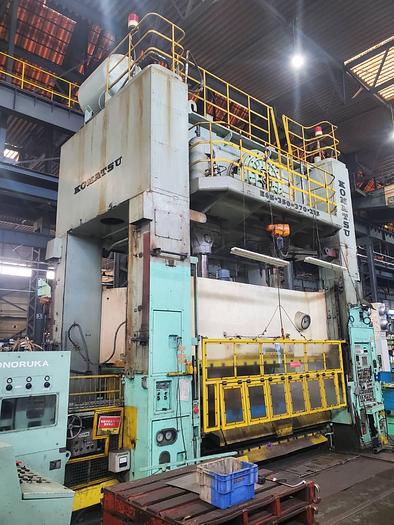

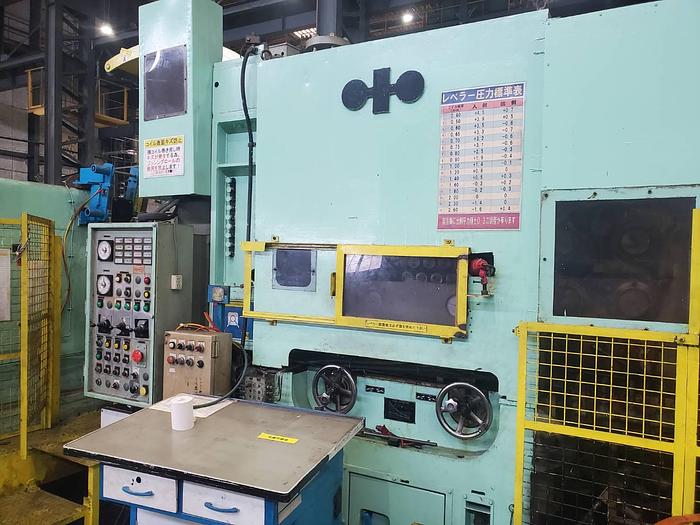

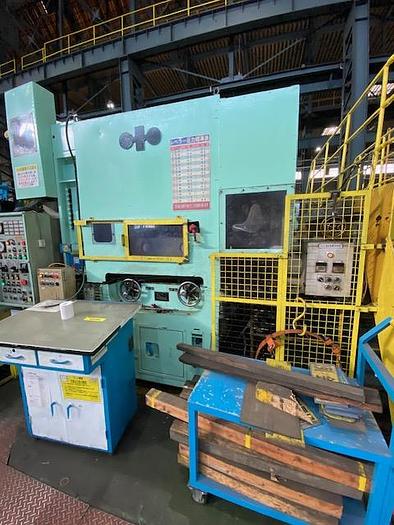

Blanking Line Press, Incorporating a Komatsu Coil Line and a Sonoruka Leveler Feeder :

Capacity : 350 tons,

Stroke : 250 mm,

SPM : 20 - 60,

Adjust : 200 mm,

Die Height : 1100 mm,

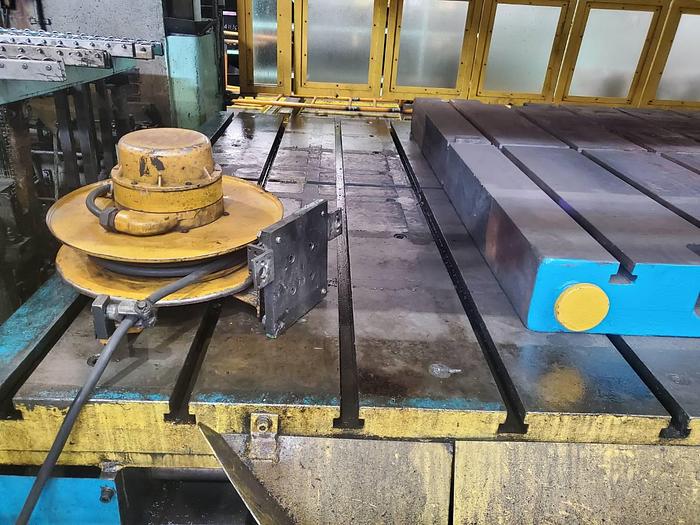

Bolster : 3700 x 2150 mm,

Slide : 3700 x 2150 mm,

Main Motor : 22 kW.

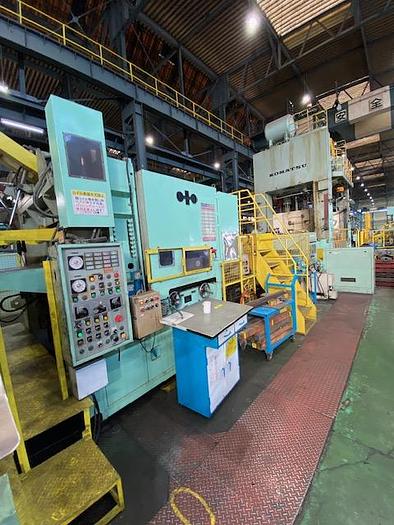

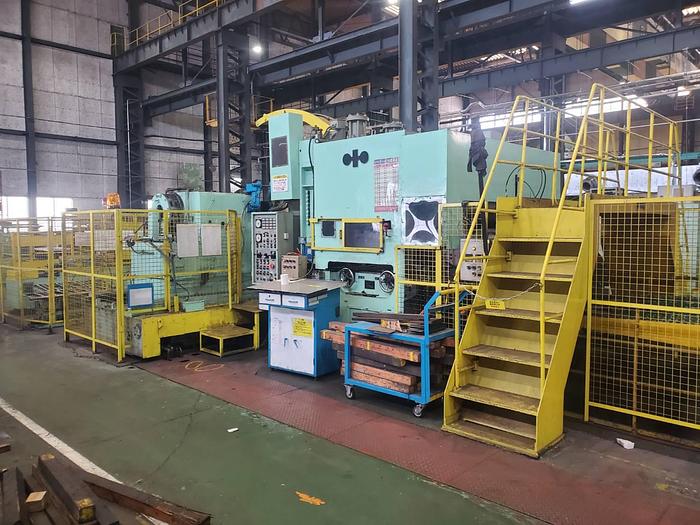

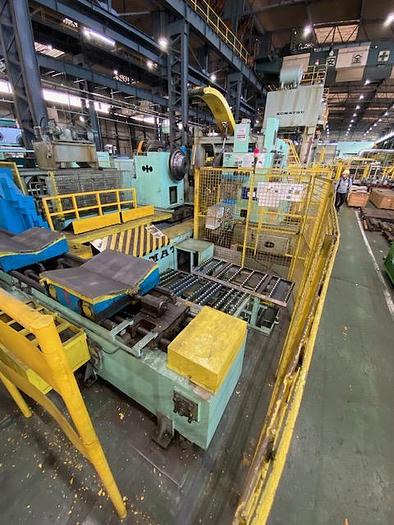

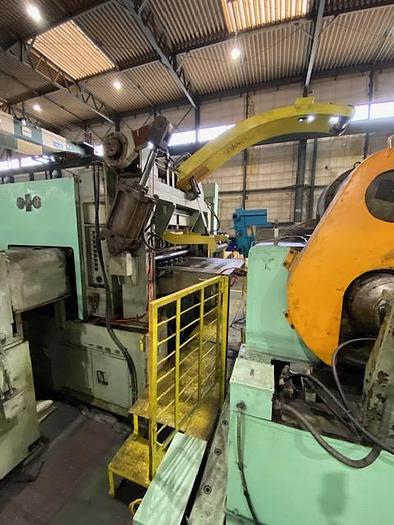

Machine Type : Coil Line

Make : Komatsu,

Capacity : 15 tons,

Coil Diameter : 900 - 1830 mm,

Coil Internal Diameter : 508 mm,

Coil width : 500 - 1620 mm,

Coil Thickness : 0.6 - 2.3 mm,

Max Feed Stroke : 2800 mm,

SPM : 60 cuts per minute,

Feed Motor : 11 kW,　

Leveler Motor : 30 kW.

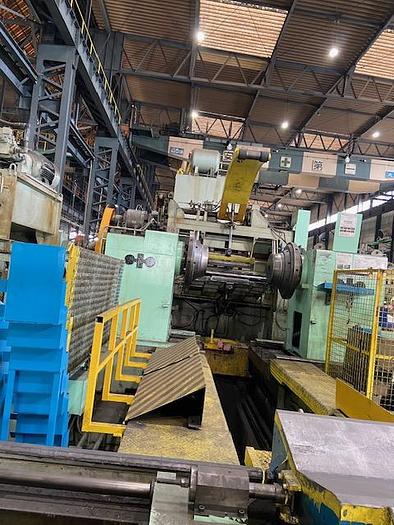

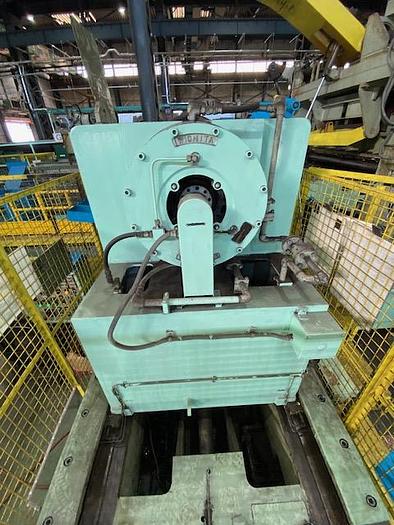

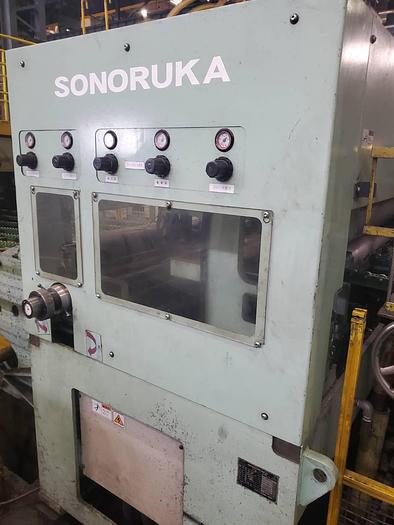

Machine Type : Leveler Feeder

Make : Sonoruka

Max. Feed Stroke : 50 - 2800 mm,

Coil Thickness : 0.6 - 2.3 mm,

Coil Width : 300 - 1620 mm,

Line Speed : 60 m/min.

2009  New Drive Shaft

2011  New Saftey equipment

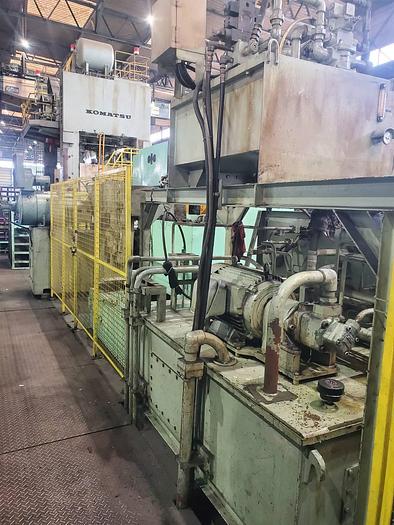

2012  New Hydraulic Unit

2015  Slide controler was digitilized

2015  Invertor Motor was installed

2015  PLC was installed
