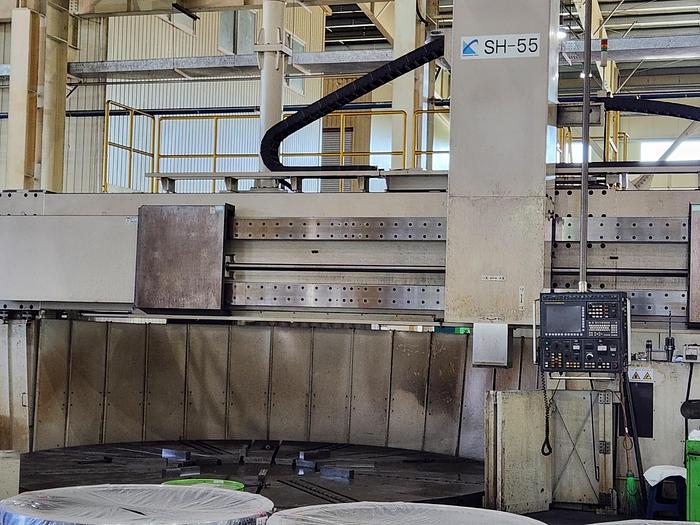

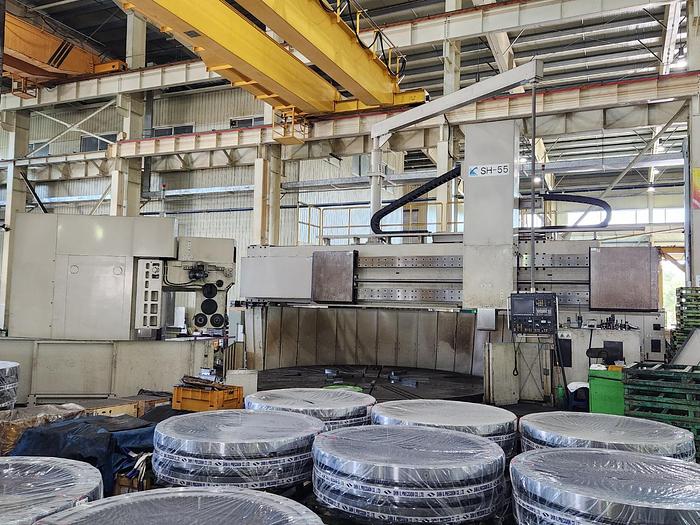

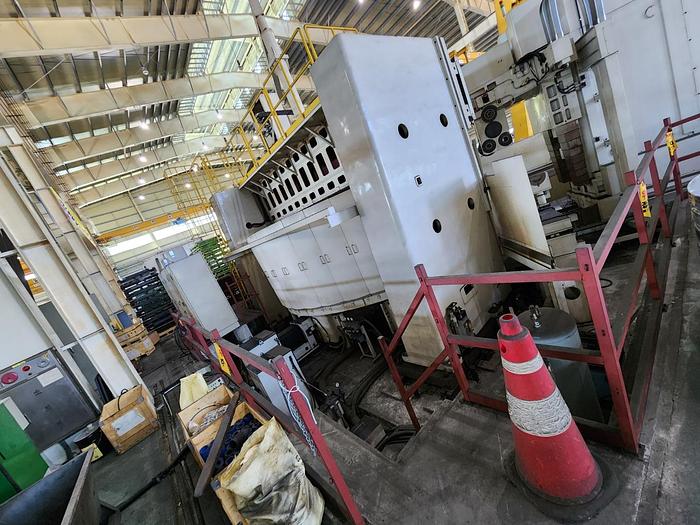

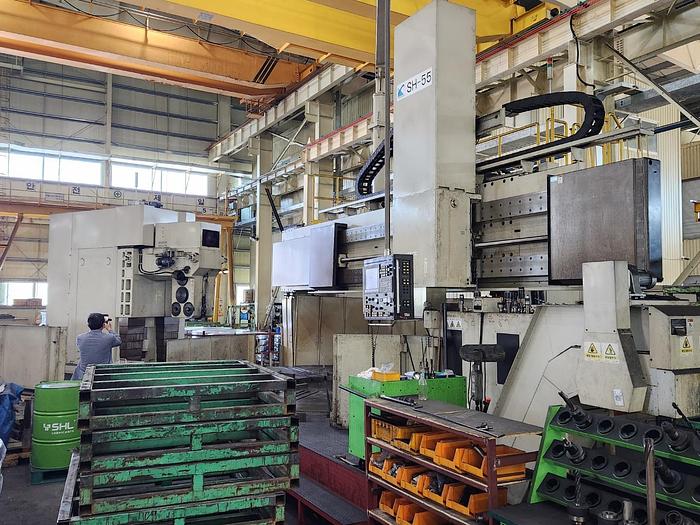

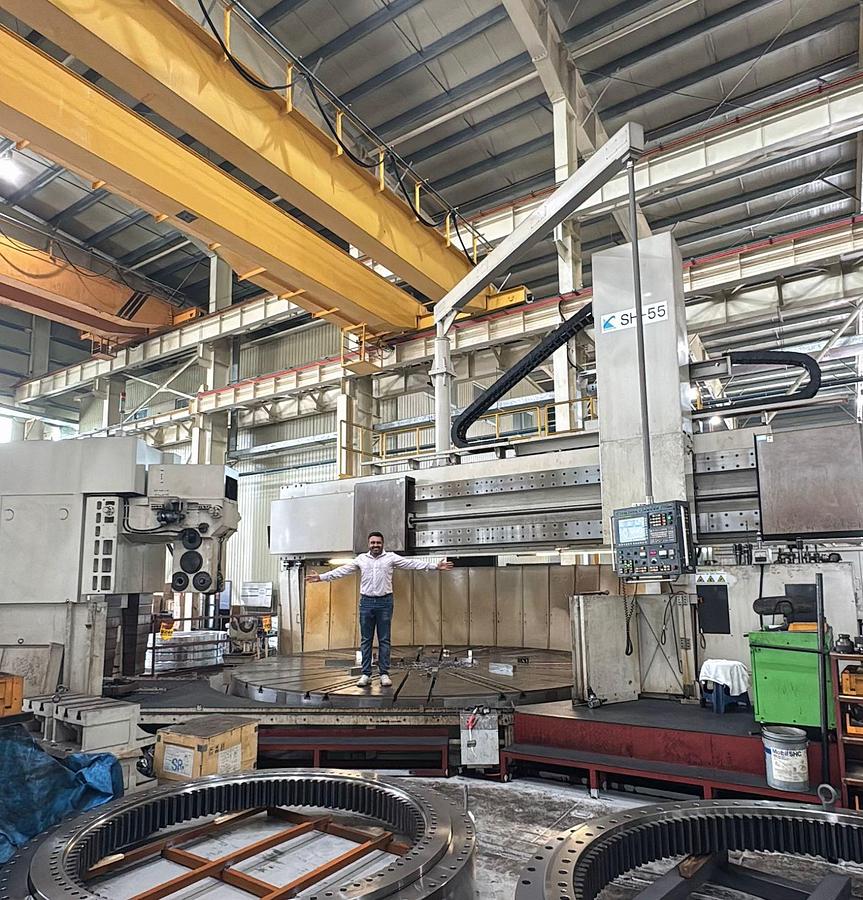

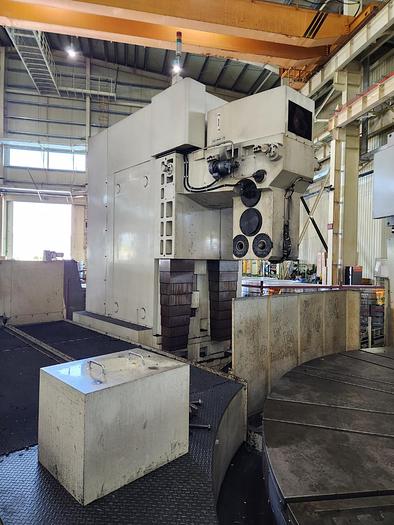

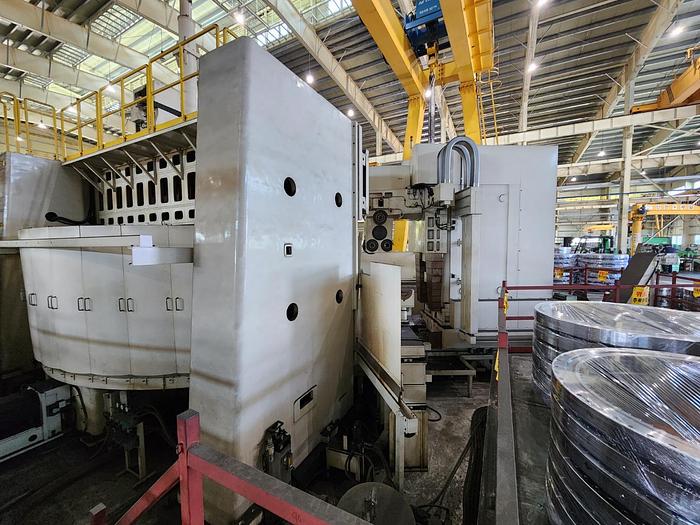

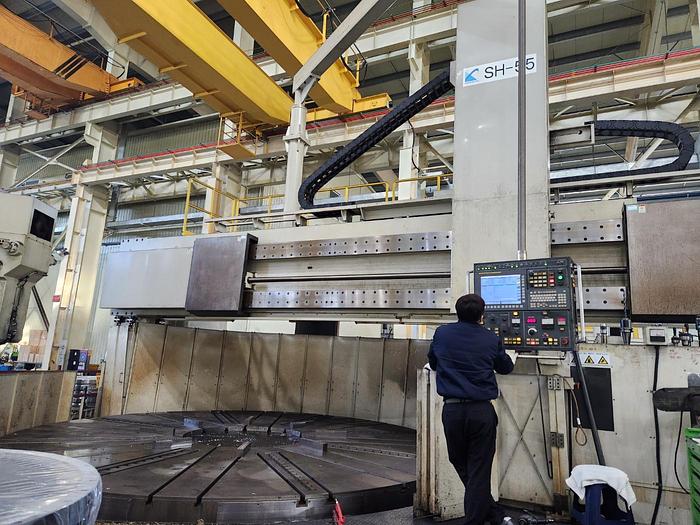

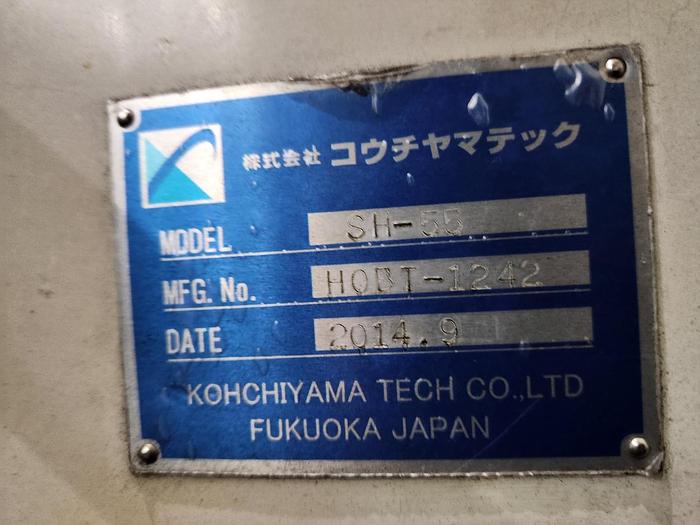

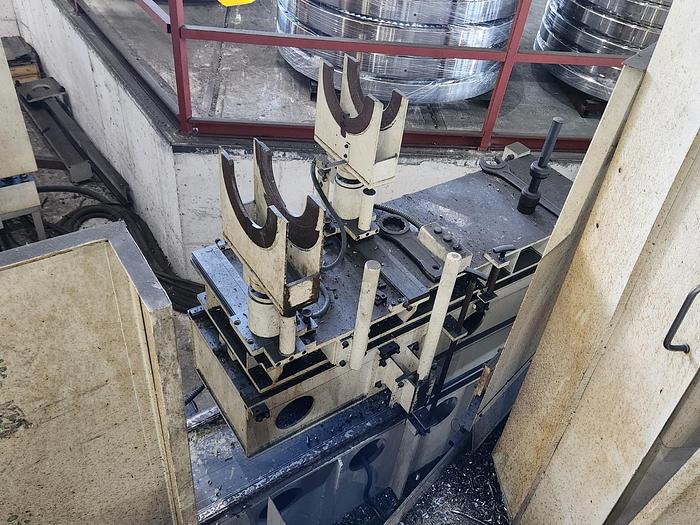

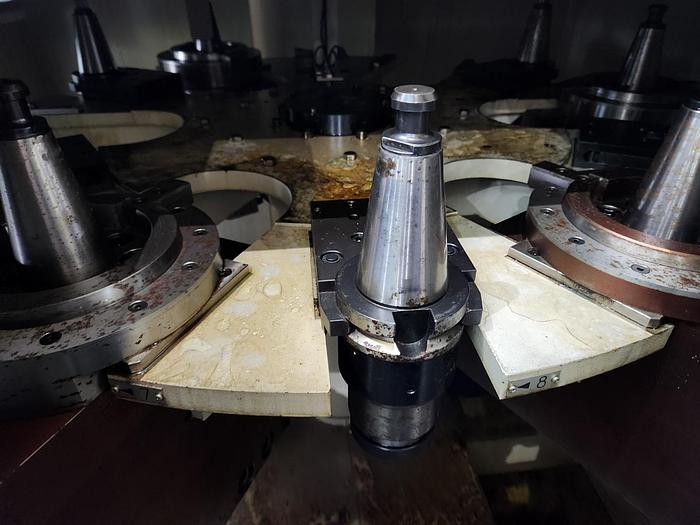

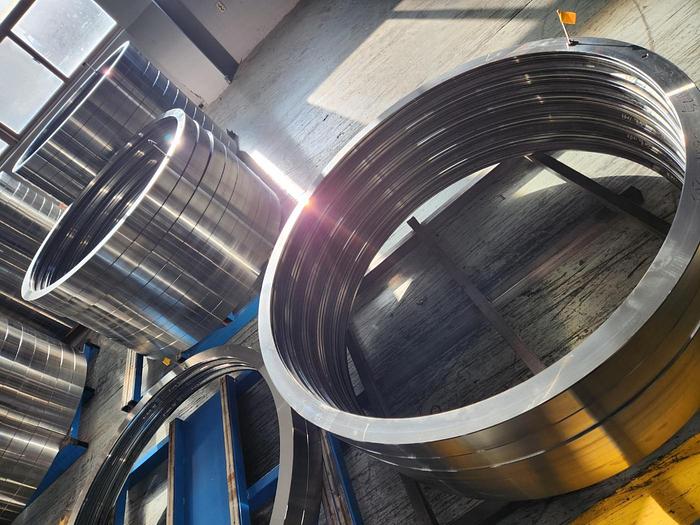

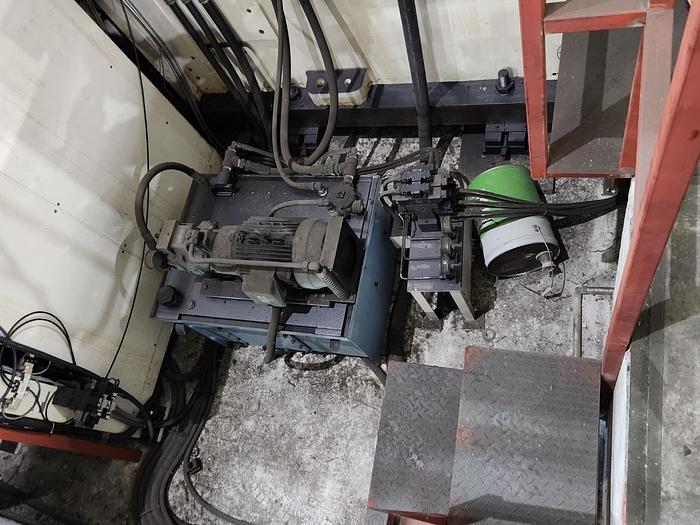

Kohchiyama CNC Gear Cutting & Turning Machine SH-55

Kohchiyama CNC Gear Cutting & Turning Machine

1. Outline :

This machine is CNC Carbide Gear Cutting Machine to produce

Straight Teeth (Spur Gear) for high efficiency productivity.

Complex Processing Machine for Gear cutting and turning machining.

2. Basic data :

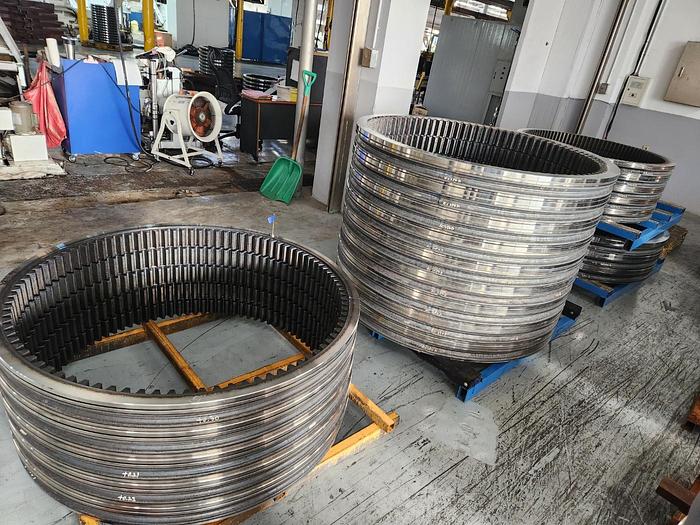

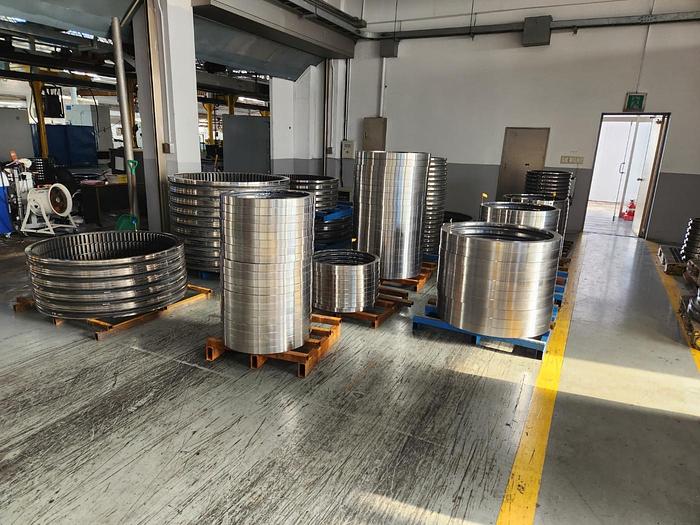

Max Cutting External Gear, Diameter : 5500 mm,

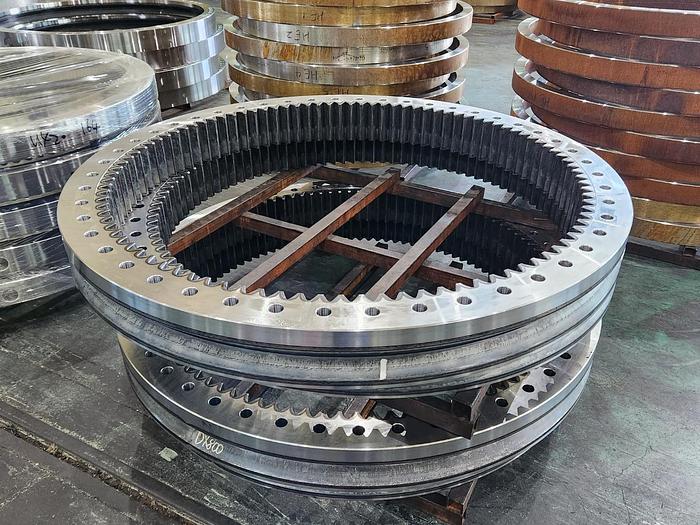

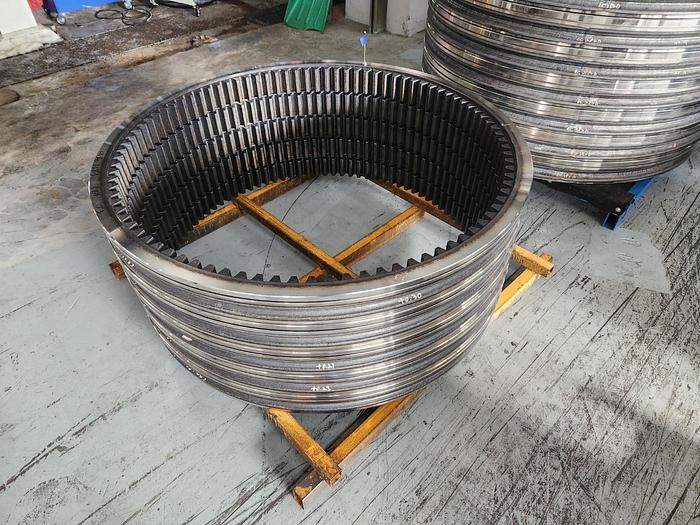

Max Cutting Internal Gear, Diameter : 5500 mm,

Max Thickness of Gear by Cutting, External/Internal : 500 /500 mm,

Max Module of Gear by Cutting : M32,

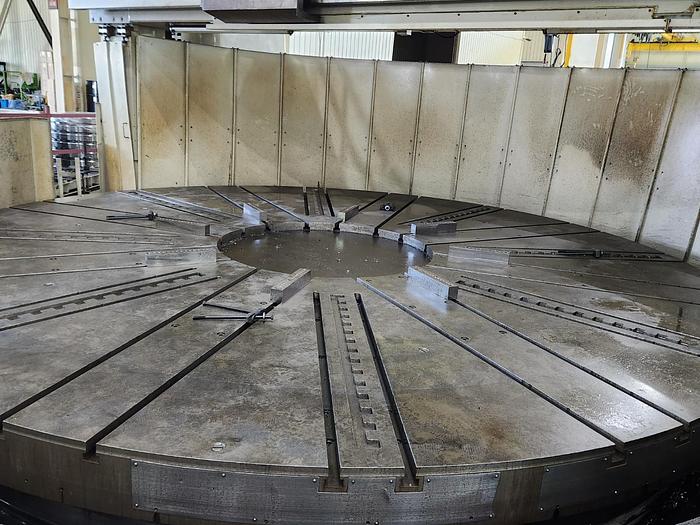

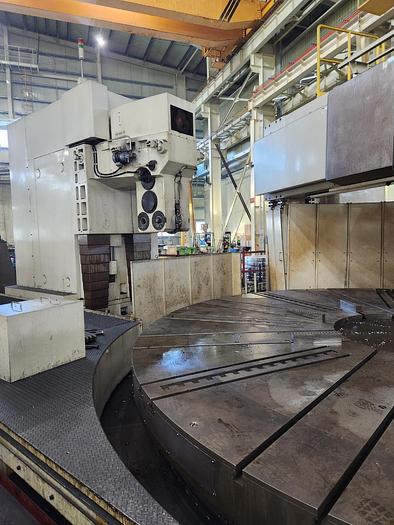

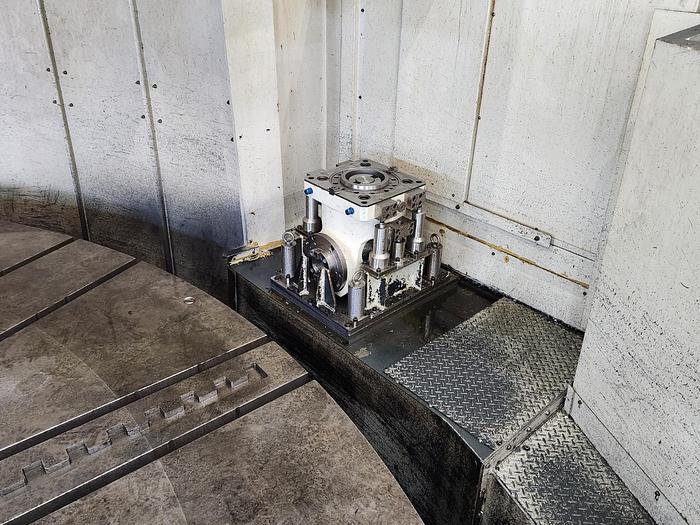

Main Table Diameter : 3740 mm,

Degree of Gear by Cutting : 0 Degree,

Max Workpiece Weight on the Table : 39400 mm,

Speed of Cutter (Steeples) : 10 ~ 150 RPM,

Max Diameter / Thickness of Cutter : 450 / 110 mm,

Max Internal Diameter of the Cutter : 80 mm,

Max Working Diameter : 5500 mm

Max Working Height : 1200 mm

Rotational Speed, Table : 3 ~ 15 RPM,

Rotation Speed, Spindle : 15 ~ 1500 RPM,

Ram Size : Square 350 mm,

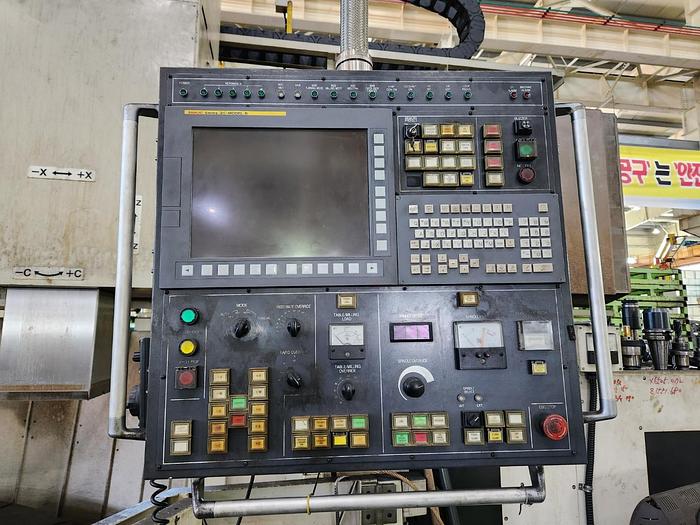

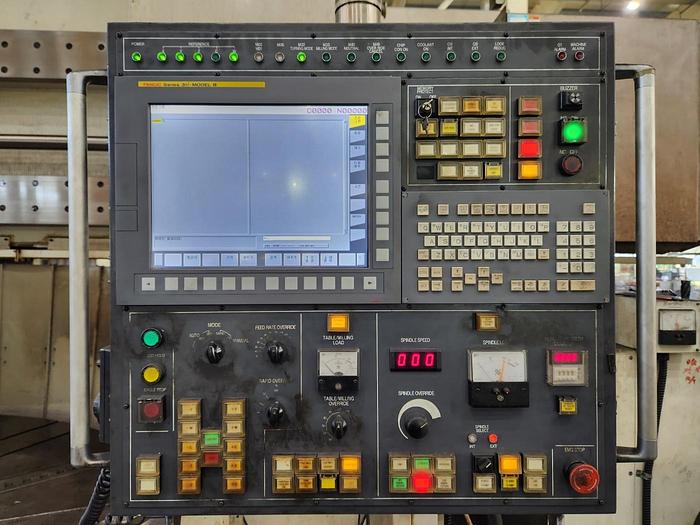

CNC Controller : Fanuc FS31i-B,

Machine Dimension (L x W) : 14670 x 12000 mm.
