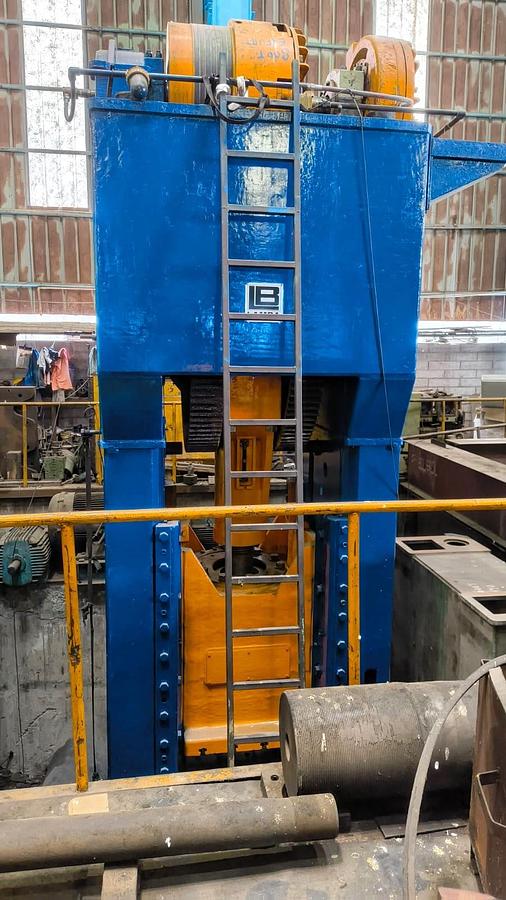

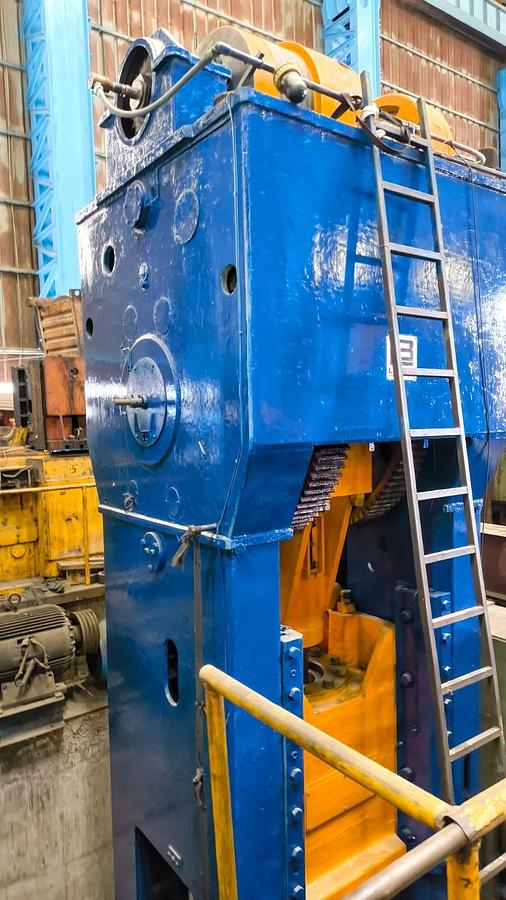

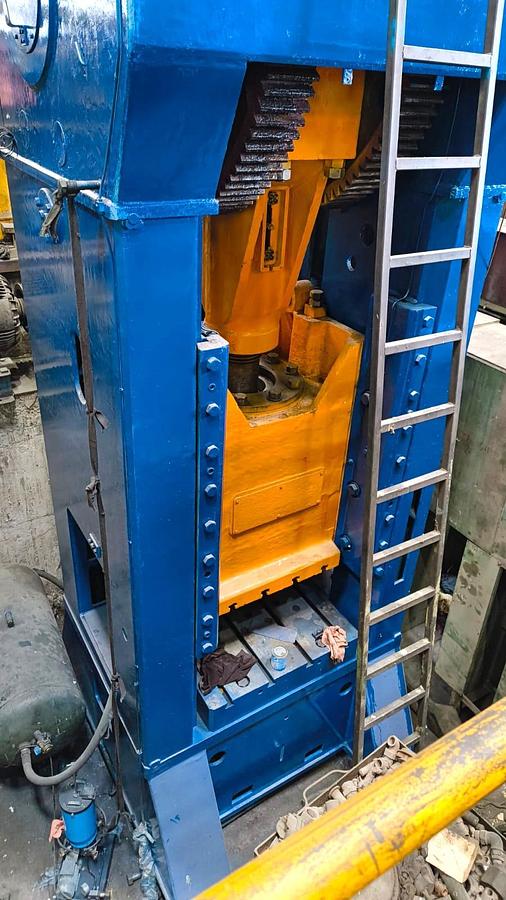

800 tons Trimming Press WMW Erfurt PKZe800

H Frame Press

Capacity : 800 tons,

Ram stroke : 400 mm,

Stroke per minutes : 12,

Ram adjustment : 185 mm,

Shut height : 630 mm,

Distance between columns : 1250 mm,

Table size : 1250 x 1650 mm,

Ram size : 1000 x 1250 mm,

Bolster thickness : 220 m,

Main motor power : 55 kW,

Dimensions of machine:

Width : 2790 mm,

Length : 3800 mm,

Press weight : 77 tons.

Lubrication : Automatic Greese/Oil Lubrication,

Clutch and Brake : Dry/Segmented disc type.

Basic manual is available. Electrical drawings , foundation drawings etc

Fully refurbished and available for inspection under power, load trial can also be provided
