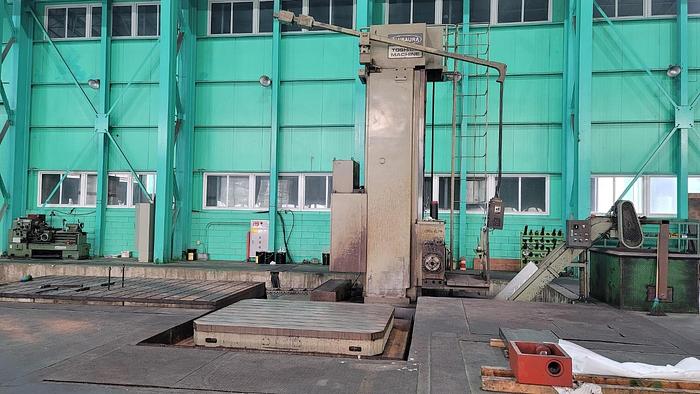

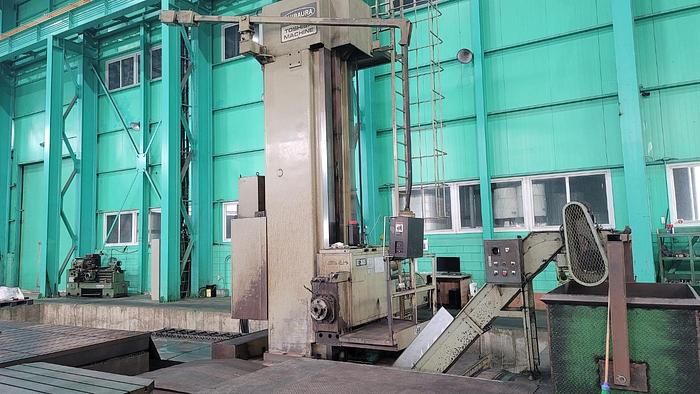

Borer Horizontal Table Type CNC Toshiba BF-160S

X Axis : 9000 mm,

Y Axis : 3500 mm,

Z Axis (Spindle Travel) - 1000 mm,

Spindle RPM : max 800 RPM,

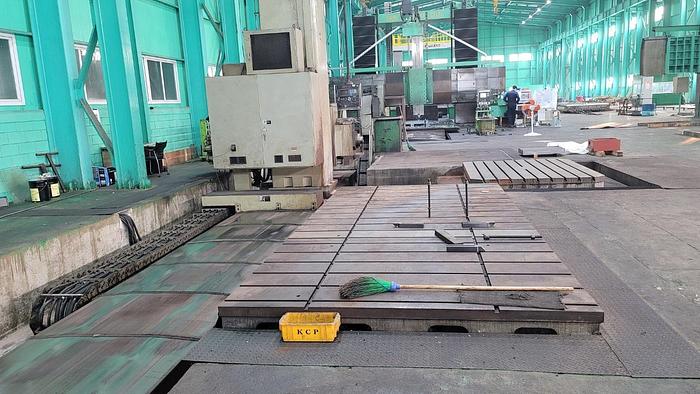

NC Rotary Table : Size  2000 x 2500 mm,

Longitudinal Travel : 2000 mm,

Indexing Degree :1/1,000 mm,

Loading Capacity on Table : 30 tons,

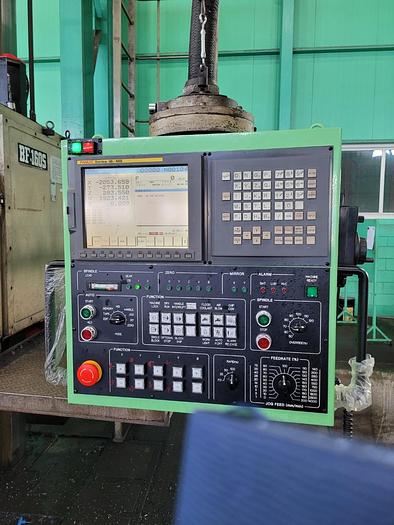

CNC Controller : Fanuc 18IMB (Upgraded in 2022 from Fanuc 15M)

with Fixed Floor Plate : 1600 mm x 2400 mm x Thickness 250 mm -  3 PCS

weight of the machine : max approx. 80 tons.

Inspection under power is available.

All technical manuals and drawings available.

No available accessories.
