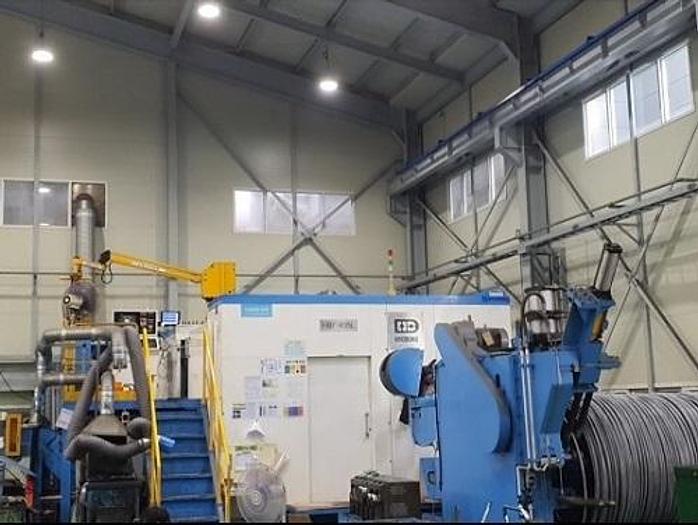

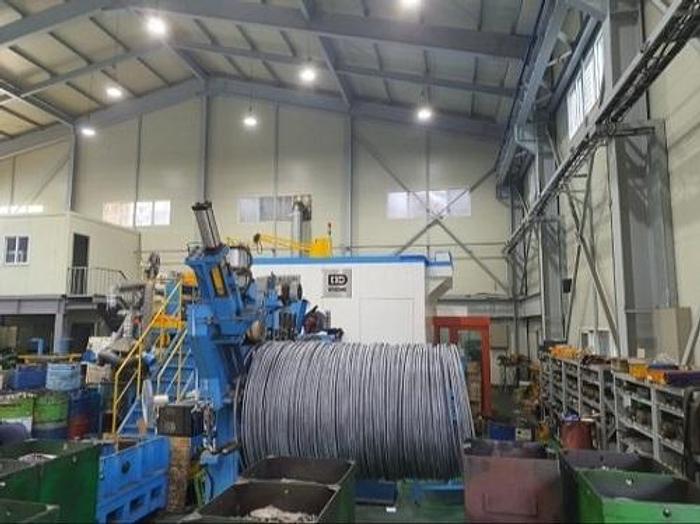

Part Former Cold Hyodong HBP633L

Forging station : 6 station,

Open up dia : 46 mm,

Under head length : 50-250 mm,

Forging load : 500,000 kgf,

Cut-off dia : 33 (29) mm,

Cut-off length : 50-300 mm,

Cut-off knife size : 105 x 34 mm,

Cut-off quill size : 100 x 150 mm,

Punch dia. : 110 x 380 mm,

Die dia : 150 x 380 mm,

Center distance between dies : 168 mm,

P. k. o stroke : 62 mm,

K.o stroke : 280 mm,

Max. rpm : 80 pcs/min,

Main Motor : 132 kw.

 Machine dimensions (LxWxH) : 8700 x 4500 x 3000 mm,

Machine weight : 126 tons,

Electric capacity : 160 kva,

Air capacity : 6.0 l/j,

Lubrication & coolant oil capacity : 1200l,

Lubrication pump capacity : 1.5 kw,

Coolant pump capacity : 1.5 kw.
