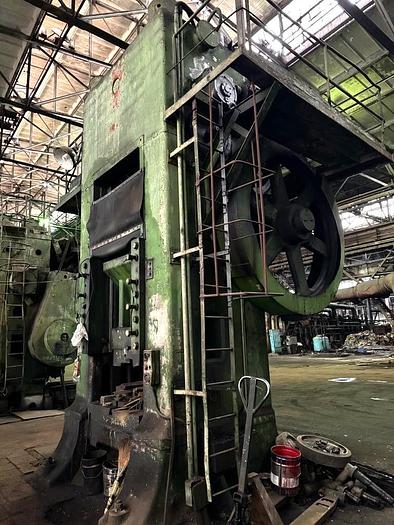

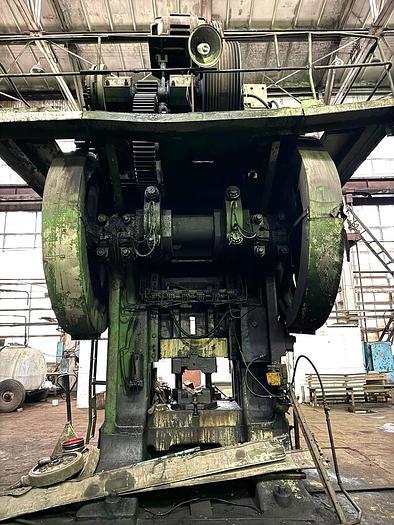

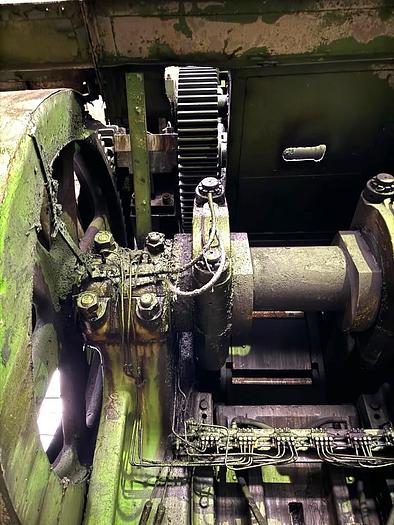

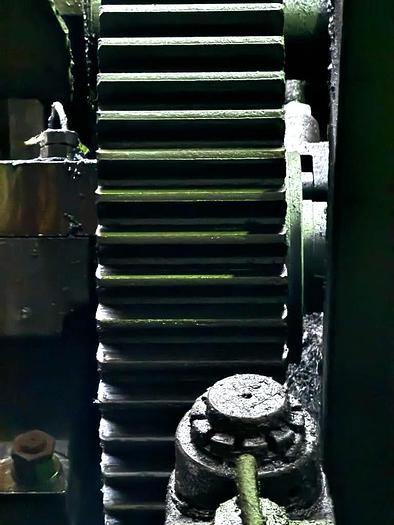

2000 tons Press Knuckle Joint Coining Smeral LL2000

Capacity : 2000 tons,

Ram Stroke : 200 mm,

Adjustment : 15 mm,

No. of ram strokes/min : 19,

Shut Height : 830 mm,

Distance between columns : 1040 mm,

Table surface area : 1300 x 1300 mm,

Ram surface : 860 x 1000 mm,

Hole in the table dia. : 130 mm,

Main drive motor : 55 kW,

Adjustment motor : 4.5 kW,

Bottom Dead Centre : 15 to 45 mm

Weight of the press : 110 tons approx.

Technical manuals available
