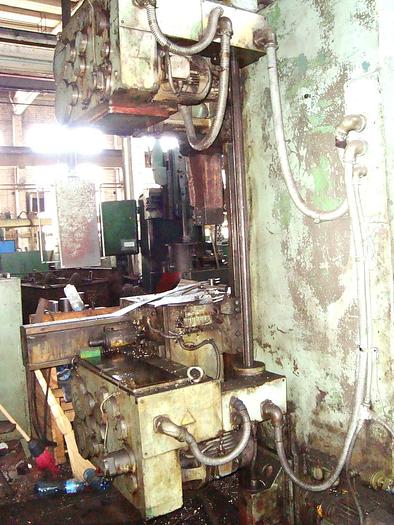

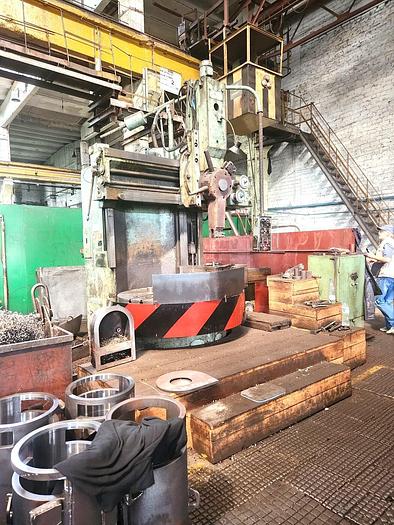

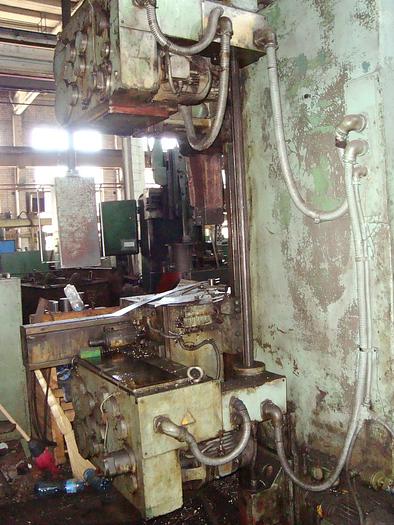

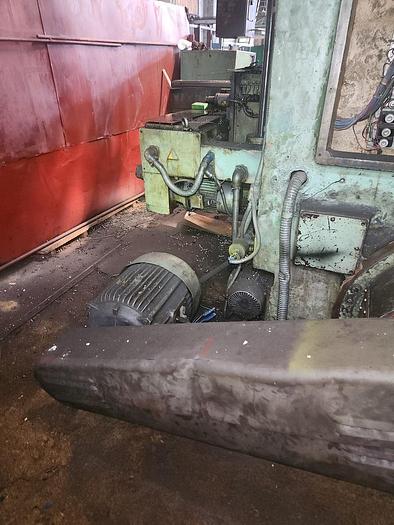

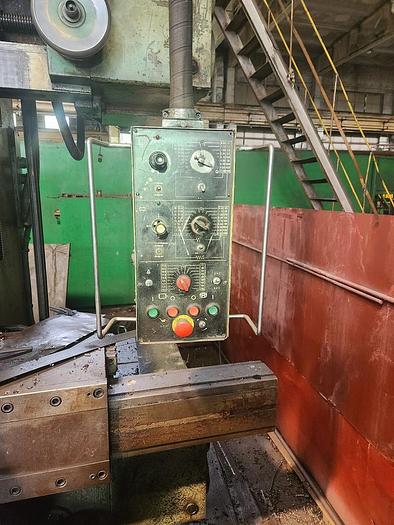

Lathe Vertical Turning Sedin 1516

Turning dia :1600 mm,

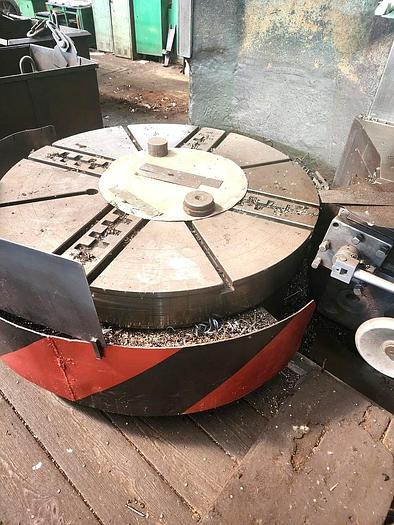

Chuck : 1400 mm,

Max workpiece height 1000 mm,

Table loading : 5000 kg,

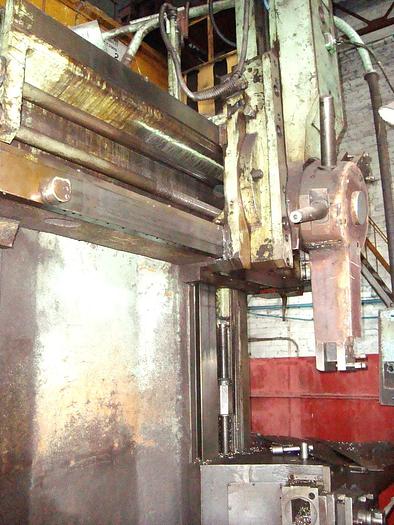

Horizontal ram travel : 630 mm,

Horizontal carriage travel 975 mm,

Vertical ram travel : 700 mm,

Vertical carriage travel : 1000 mm,

Distance table-ram : 0 -1225 mm,

Fast stroke : 2000 mm/min,

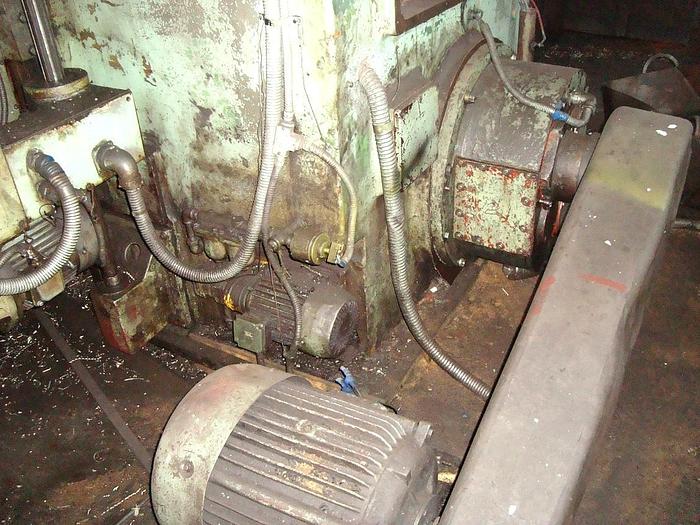

Main motor power : 30kW,

Speeds range : 4 - 200 rpm,

Dimensions : 3190 x 3360 x 4100 mm,

Weight about : 19 tons.
