Press Sheet Stamping Mechanical Kukil KDH-400E

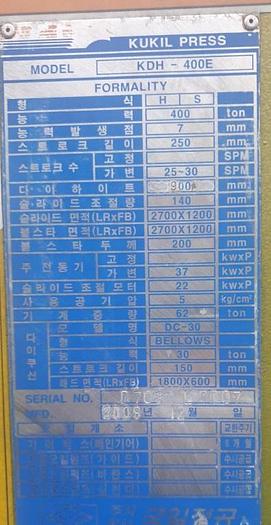

Specifications
| Manufacturer | Kukil |
| Model | KDH-400E |
| Year | 2008 |
| Condition | Used |
| Stock Number | MA2488 |
| Item condition | Good condition |
| Capacity tons | 400 |
Description
Capacity : 400 tons,
Stroke : 250 mm,
Stroke per minutes : 25-30SPM,
Die height : 900 mm,
Slide Adjustment : 140 mm,
Slide area (LR x FB): 2700 x 1200 mm,
Bolster area (LR x FB) : 2700 x 1200 mm,
Main motor : 37 KwxP,
Slide Adjuster motor : 22 KwxP
Weight : 62 tons,
Die Cushion :
Capacity : 30 tons,
Stoke : 150 mm,
Pad area : 1800 x 600 mm,
