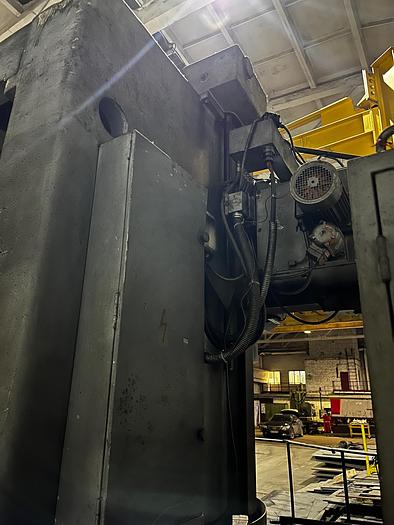

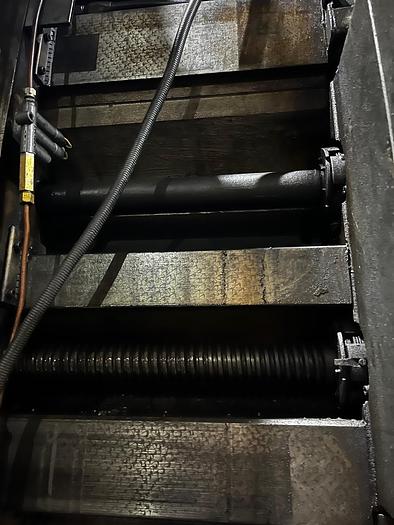

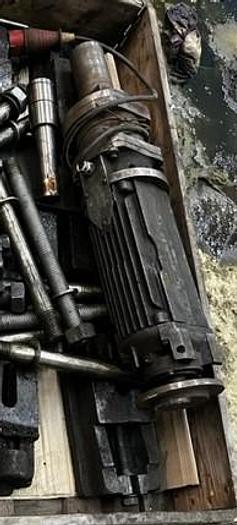

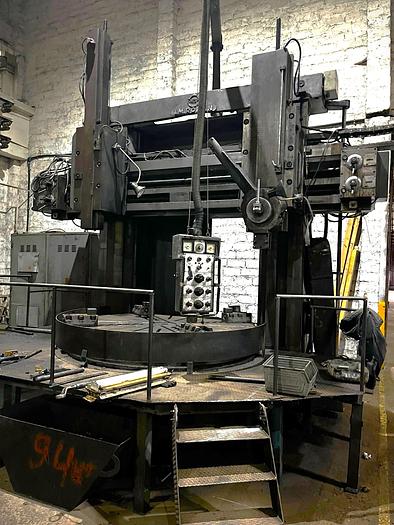

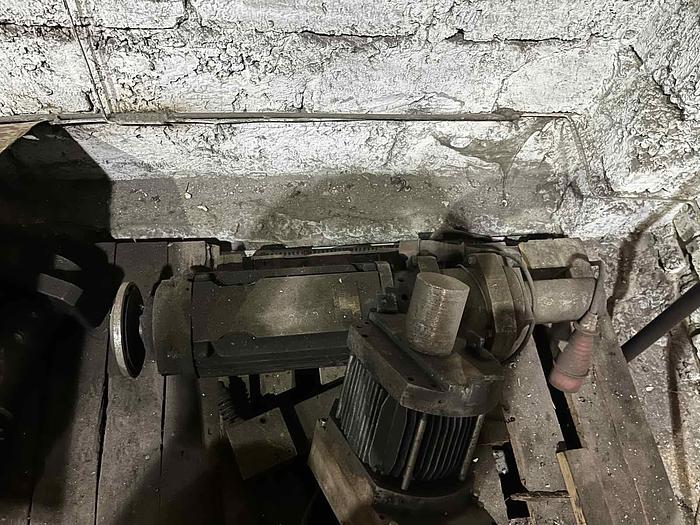

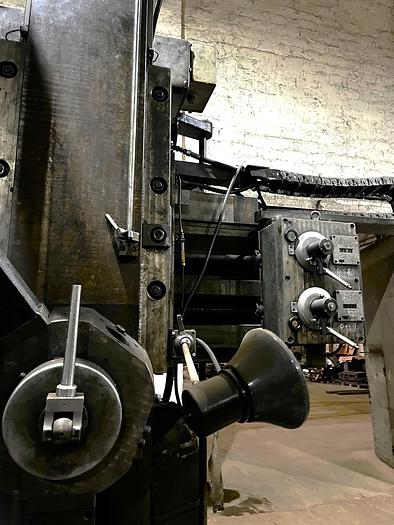

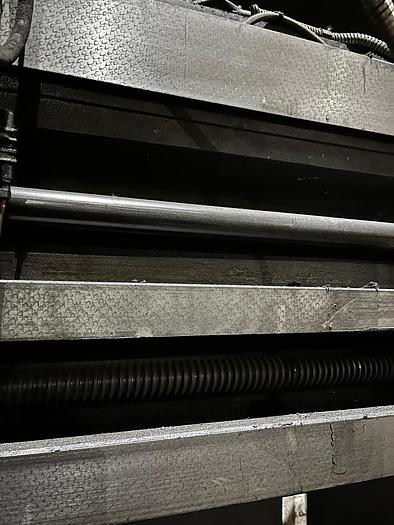

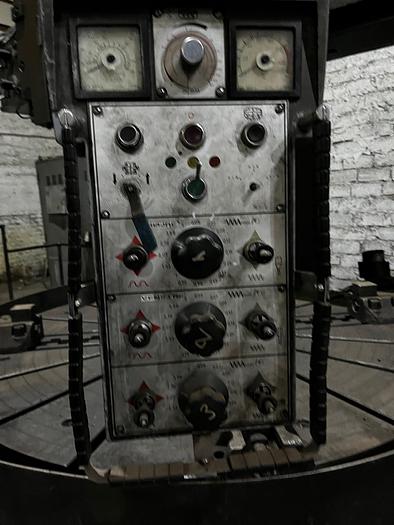

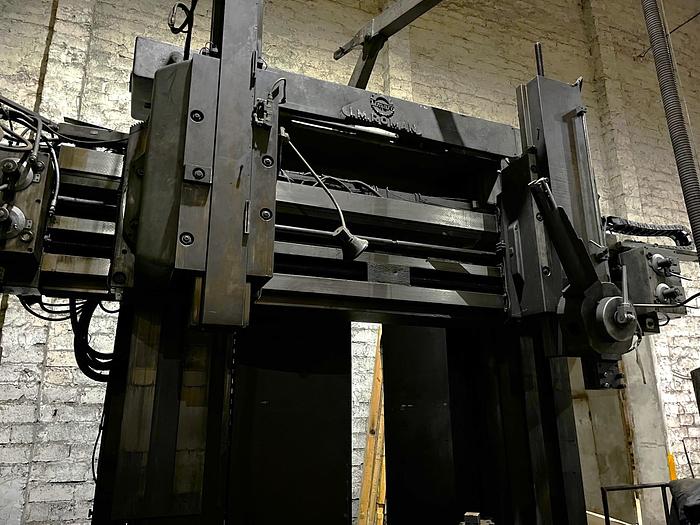

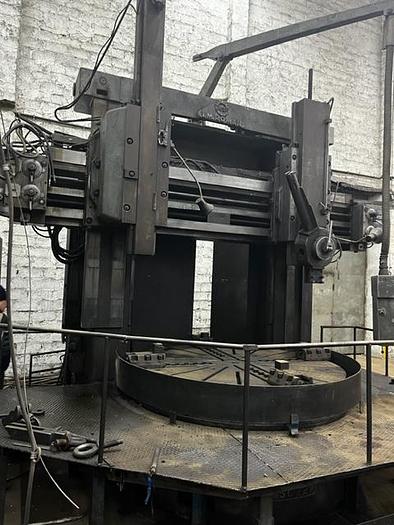

Lathe Vertical Turning Umaro, Romania SC22

Swing : 2200 mm,

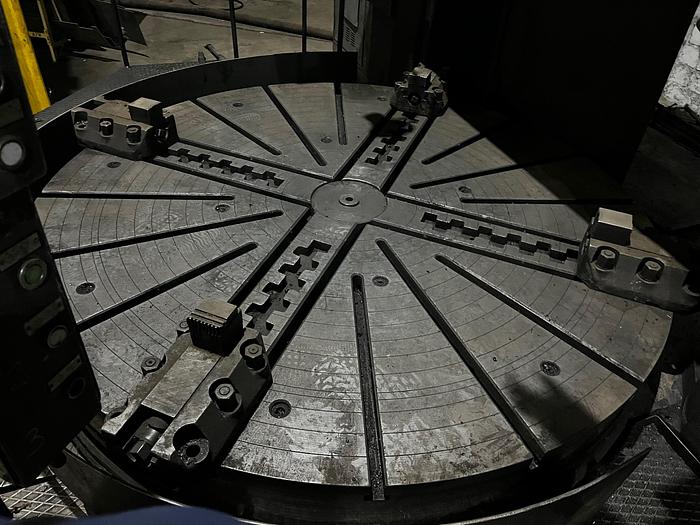

Table dia. : 2000 mm,

Max. working height : 1500 mm,

Table speed range : 1-140 rpm,

Max. work-piece weight : 12 tons,

Right head vertical stroke : 760 mm,

Left head vertical stroke : 1250 mm,

Ram travel : 1500 mm,

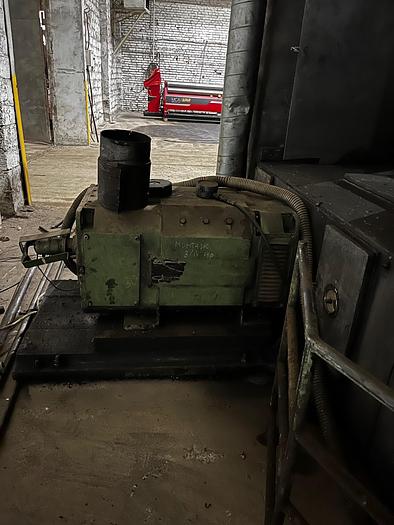

Main motor : 55 kW,

Dimensions :

Length : 4600 mm,

Width : 4300 mm,

Height : 4200 mm,

Machine weight : 31.3 tons.
