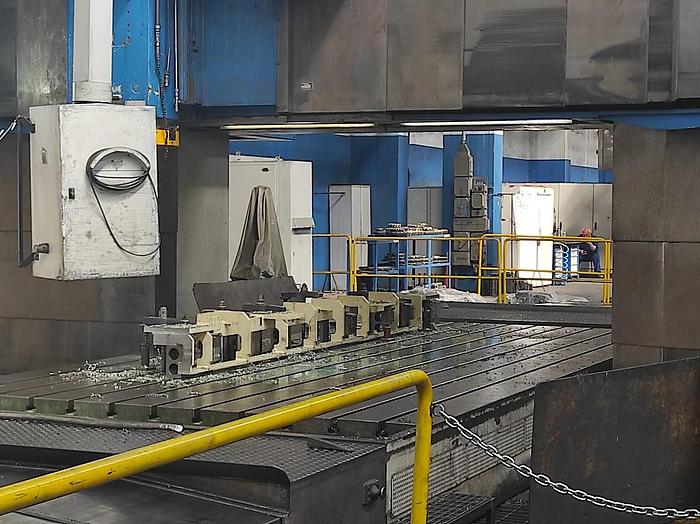

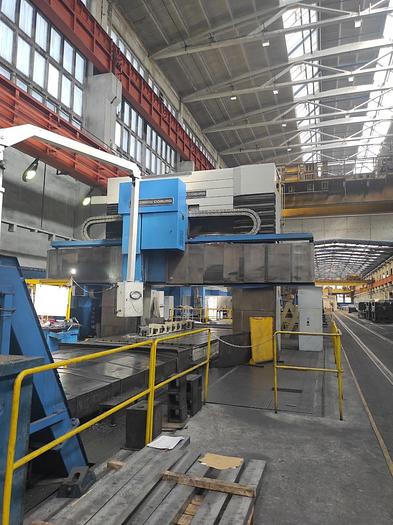

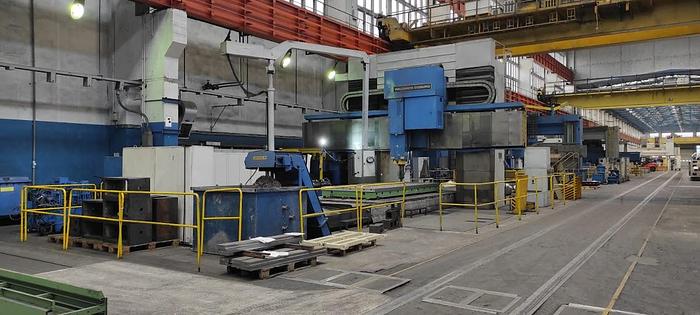

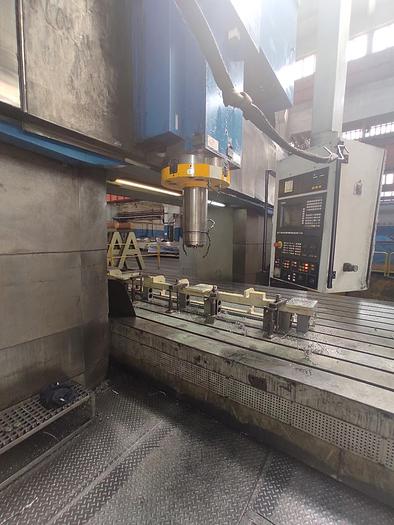

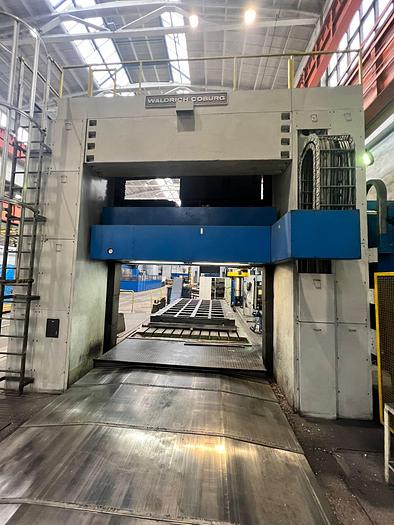

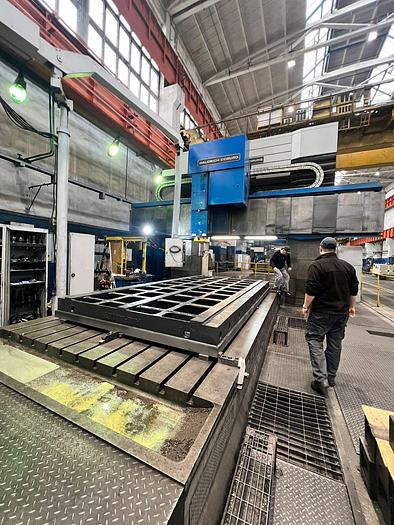

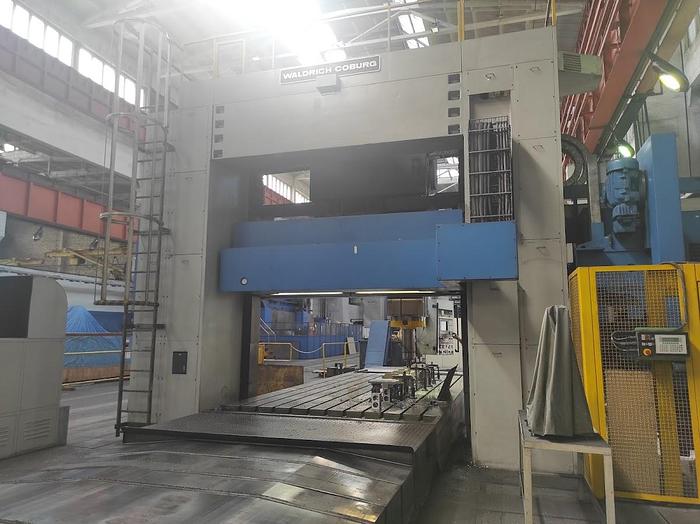

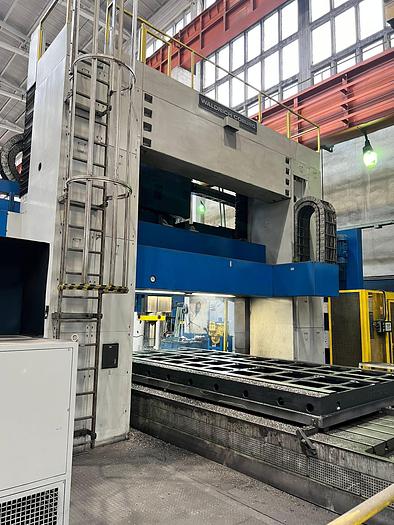

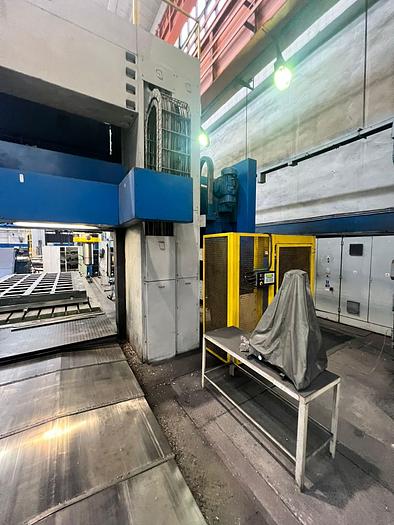

Plano Miller CNC Waldrich Coburg GmbH FP300NC

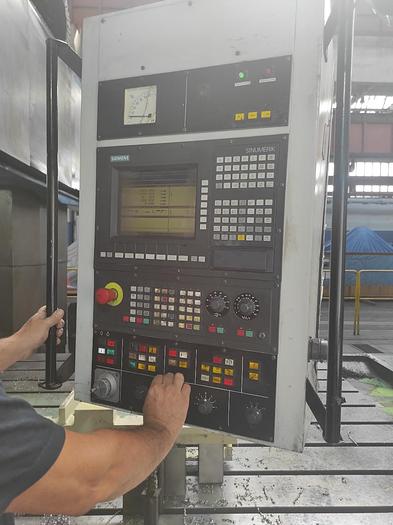

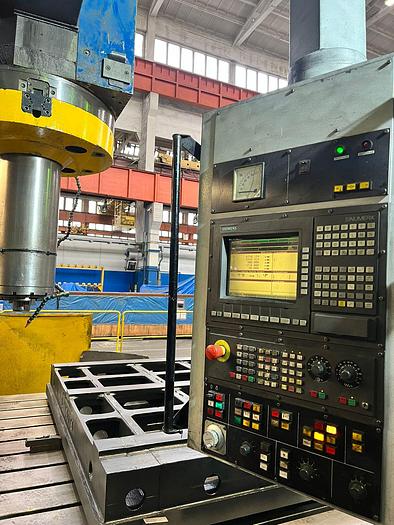

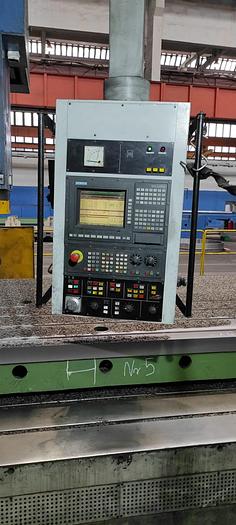

Control system Siemens : Sinumerik 840 C,

Dimensions of table working surface : 6000 x 3000 mm,

Travel X-axis : 6700 mm,

Clearance between columns : 3300 mm,

Distance between table and cross-rail : 2500 mm,

Travel Y-axis : 5900 mm,

Travel Z-axis : 2000 mm,

Spindle taper : ISO 60,

Max. load of table : 60 tons,

Spindle speed : 5 - 2000 /min.,

Ram travel (V) : 1000 mm,

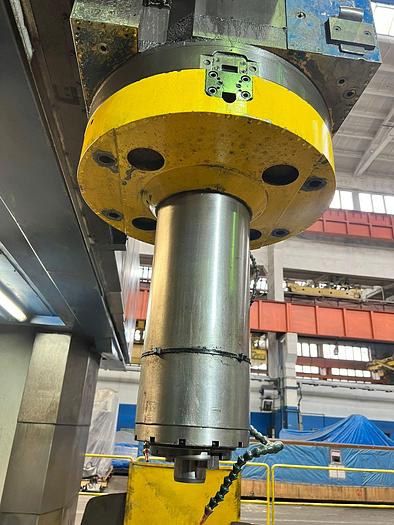

Diameter of working spindle : 170 mm,

Ram size : 600 x 600 mm,

Machine dimensions (l x w x h) : 17100 x 9330 x 6760 mm,

Main motor power : 75 kW,

Machine weight : 150.8 tons

Yom : 1989 / 2009
