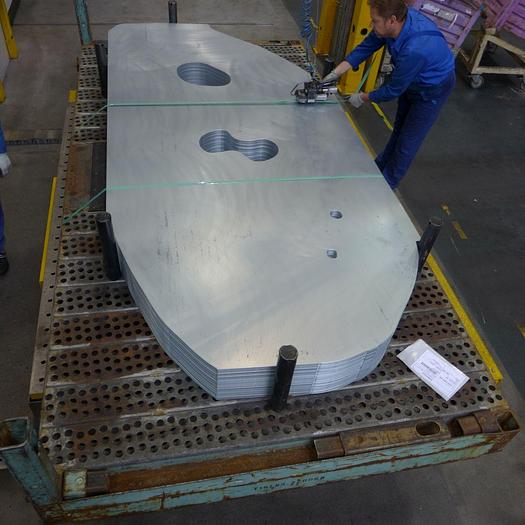

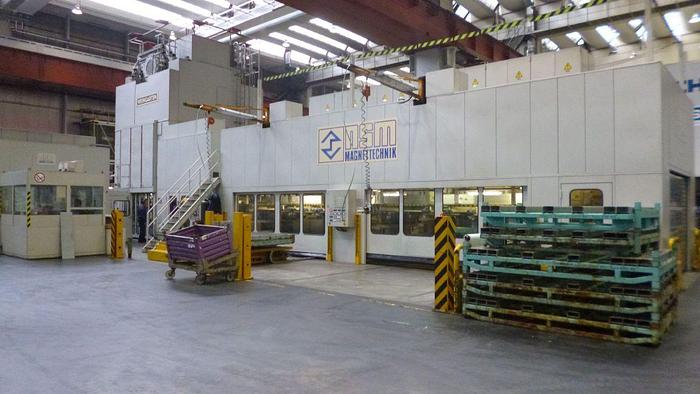

Blanking Line Muller Weingarten

Capacity : 800 tons,

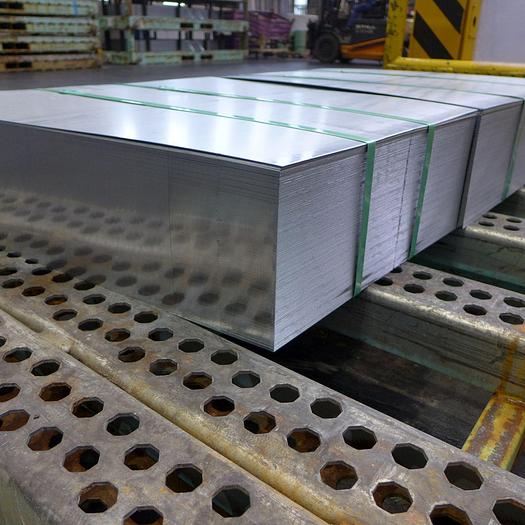

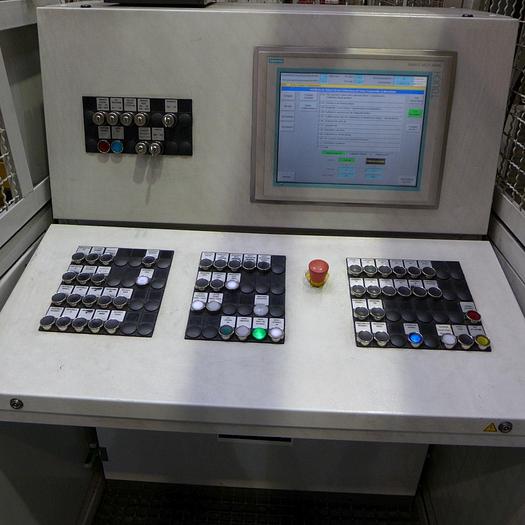

Controls : PLC SIEMENS S7,

Frame desig : H-fram,

Openings in uprights : yes,

Opening in table : yes,

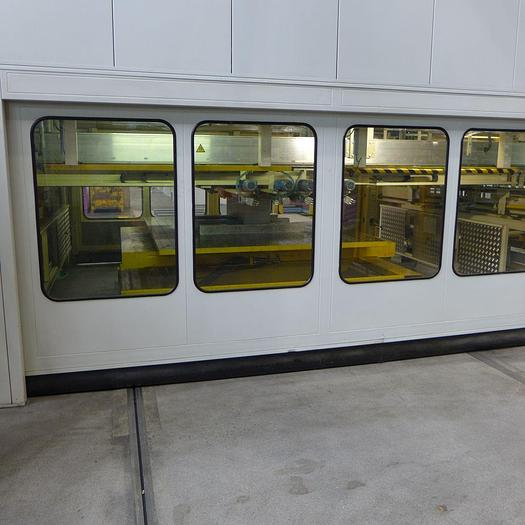

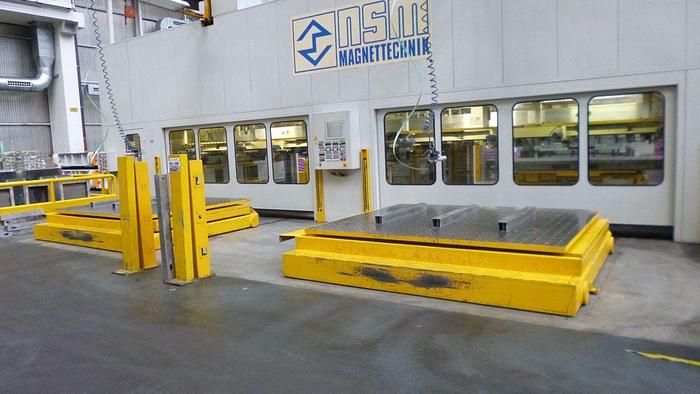

Moving bolster : yes,

PRESS TABLE

Clamping surface (left-right) : 2800 mm,

Clamping surface (front-back) : 2800 mm,

Height above floor level : 375 mm,

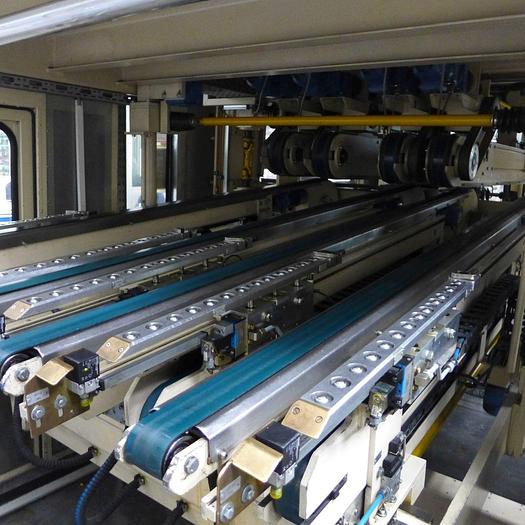

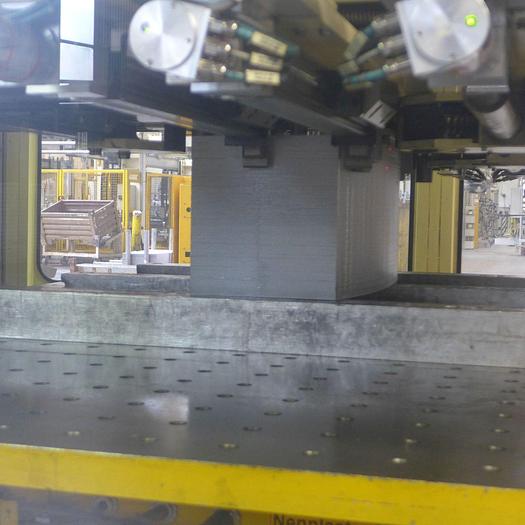

RAM

Ram force : 800 tons

Clamping surface (left-right) : 2800 mm,

Clamping surface (front-back) : 2800 mm,

Stroke : 350 mm,

Stroke per minutes : 50,

RAM (MECHAN. PRESS)

Ram adjustment : 350 mm,

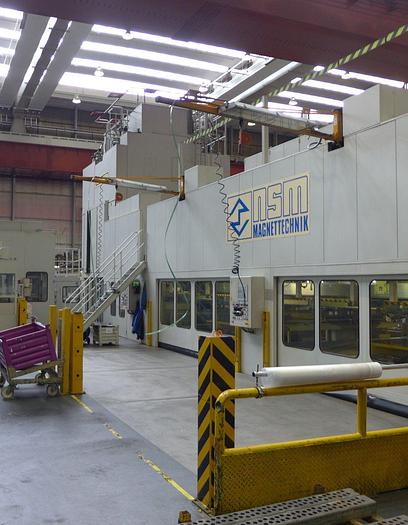

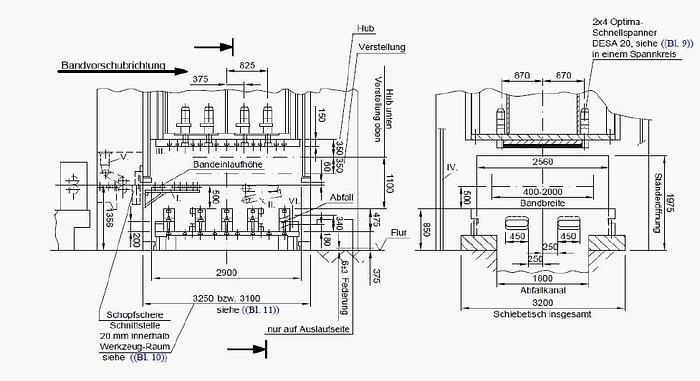

TOOL ASSEMBLY DIMENSIONS

Shut height (stroke down, adjustment up) : 1100 mm,

Distance between columns (H-frame) : 3100 mm,

Free passage between side columns (width) : 2560 mm,

Free passage between side columns (height) : 1500 mm,

DECOILE

Design : single coil,

Sheet width max : 2000 mm,

Sheet width (min) : 400 mm,

Max. weight of coil : 30 tons,

Max. diameter of coil : 2000 mm,

Min. internal diameter of coil : 610 mm,

LEVELER UNIT

Sheet width max : 2000 mm,

Sheet width (min) : 400 mm,

Sheet thickness max : 2 mm,

Sheet thickness (min) : 0.6 mm,

Number of leveler rolls : 13

Diameter of leveler rolls : 50 mm,

FEEDERS

Feeder : type roll feeder

Sheet width max : 2000 mm,

Sheet thickness max : 2 mm,

Feeding step max. :4000 mm

ELECTRICAL SPECIFICATIONS

Mains power supply : 400 kVA,

Main Voltage : 50 V,

TECHNICAL DESCRIPTION

SCOPE OF DELIVERY/ COMPONENTS:

- Coil carrier with separate crop shear,

- Single sided de-coiler,

- Max coil width 2000 mm, max weight 30 tons,

- Straightening units with 13 straightening rolls, max blank thickness 1.8 mm, max. blank width 2000 mm,

- Loop pit

- Roll feeder with roll diameter 220 mm, feed length max 4000 mm,

- Monitoring of oil film thickness via scanner

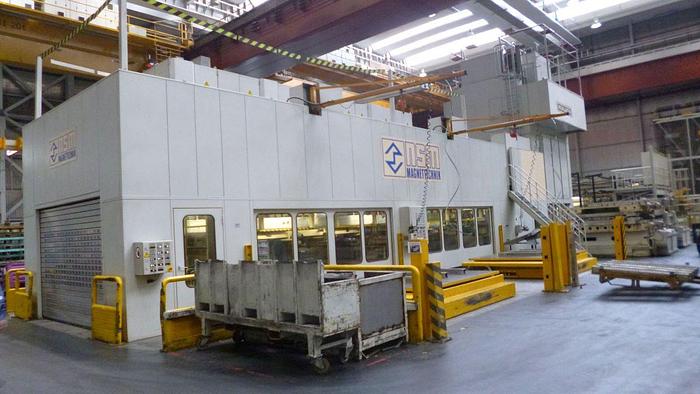

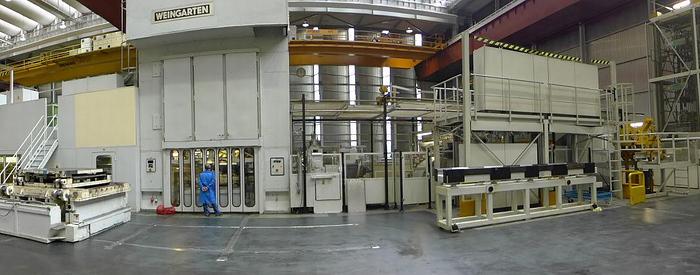

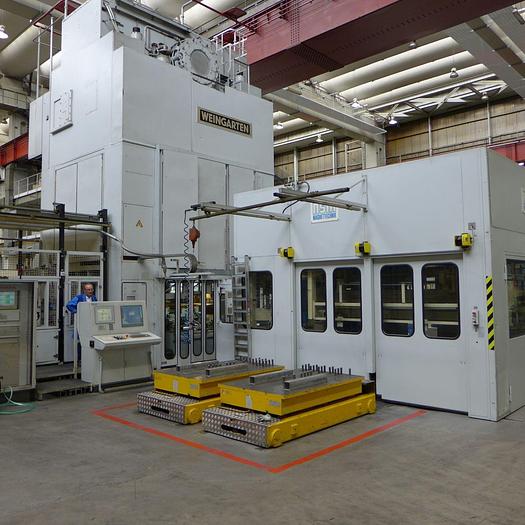

- Mechanical Blanking Press MUELLER WEINGARTEN VK 800.28.35 (1983)

* With max. 55 strokes per minute

* Table dimensions (clamping surface 2800 x 2800 mm)

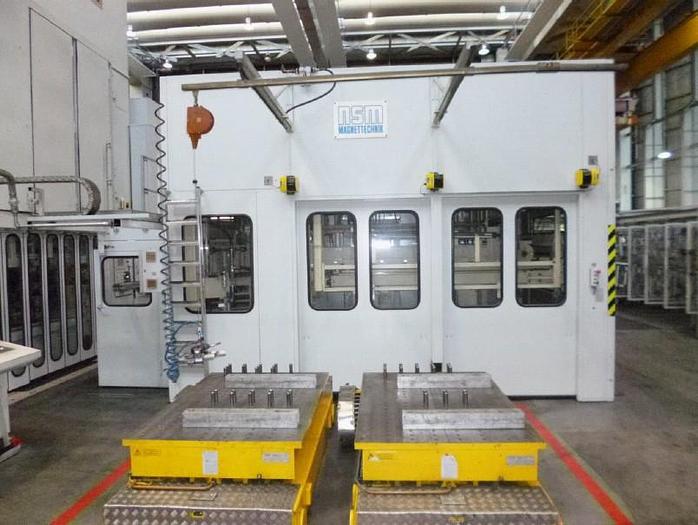

* 2 Changing tables and 350 mm stroke travel.

Coil-Feeder Type Müller Weingarten Typ 140 412

Coil width : 400-2000 mm,

Sheet metal width : 0.6 - 1.8 mm,

Coil-External : Ø 700-2000 mm,

Coil Internal : Ø 610 mm,

Coil Weight : 30 tons,

Feed length max. : 4000 mm,

Coil height feed above floor : 1600 mm,

External croph shear for Coil preparation

Unilateral Coiler

Spreader Coil – Mandril : 570-650 mm,

Lateral travel : 4150 mm,

Crop shear:

No. of cropped pieces for 500 mm length : 10,

Opening height : 160 mm,

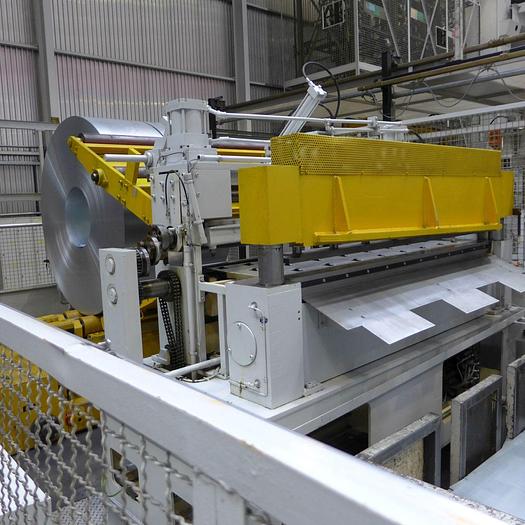

Straightener (chromium plated)

No. Straightening rolls : 13,

Ø Straightening rolls : 50 mm,

Coil loop bridge

Length : 4500 mm,

Width : 3000 mm,

Depth : 6000 mm,

Roll feed unit

Feed accuracy for up to 1000 mm : ± 0.10 mm,

Feed accuracy for up to 2500 mm : ± 0.25 mm,

Feed accuracy for up to 4000 mm : ± 0.4 mm,

Feed rolls : 220 mm,

Air tunnel top roll : 45 mm,

Max. feed length : 4000 mm.
