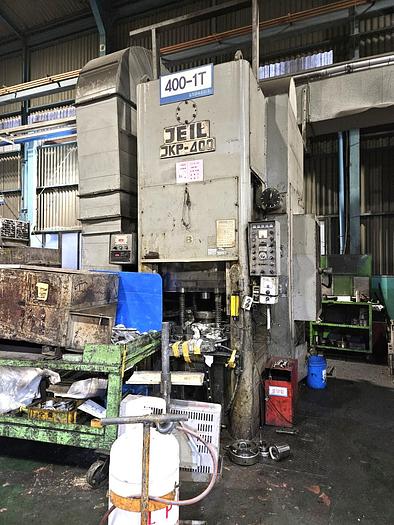

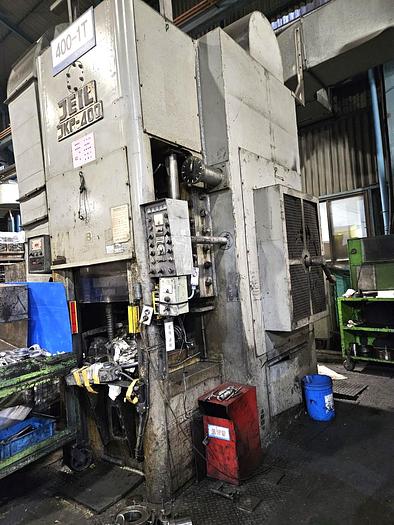

Press Cold Forging Jeil JKP-400
Specifications
| Manufacturer | Jeil |
| Model | JKP-400 |
| Condition | Used |
| Stock Number | MA2539 |
| Item condition | Good working condition |
| Capacity tons | 400 |
Description
Capacity : 400 tons,
Stroke : 160 mm,
Stroke per minutes : 22
Die height : 450 mm,
Slide size ( LR x FB ) : 640 x 550 mm,
Bolster size ( LR x FB ) : 865 x 600 mm,
Slide adjustment : 15 mm,
Main motor ( V.S ) : 37 Kw,
Air pressure : 5 Kg/Sq.mm,
Motor for slide adjustment : 1.5 Kw x 4) x 1/50,
Bed knock out capacity : 10 tons,
Bed knock out stroke : 50 mm.
