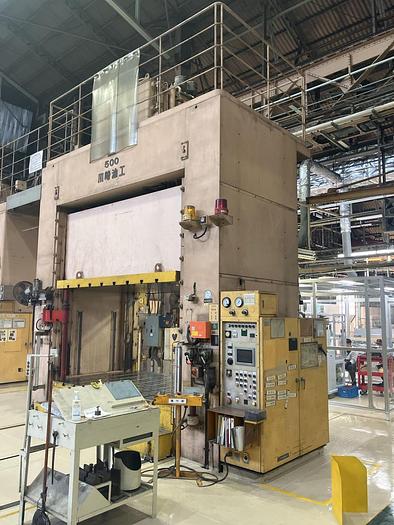

Press Sheet Stamping Hydraulic DPD-500 Kawasaki
Sold
Specifications
| Manufacturer | Kawasaki |
| Model | DPD-500 |
| Condition | Used |
| Stock Number | MA2544 |
| Item condition | Good Condition |
| Capacity tons | 500 |
Description
Capacity : 500 tons,
Stroke : 1500 mm,
Daylight : 1650 mm,
Slide : 3000 x 2000 mm,
Moving Bolster : 3000 x 2000 mm,
Bolster Stroke : 2300 mm,
Die Cushion : 150 tons,
Cushion Stroke : 280 mm.

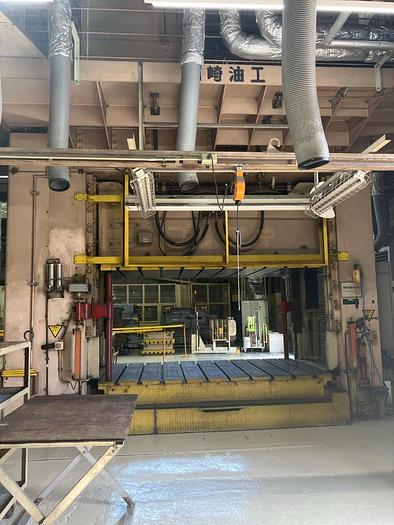

The press has a die cushion and a front moving bolster
