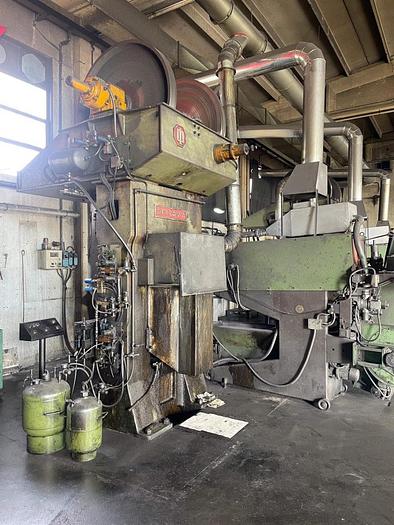

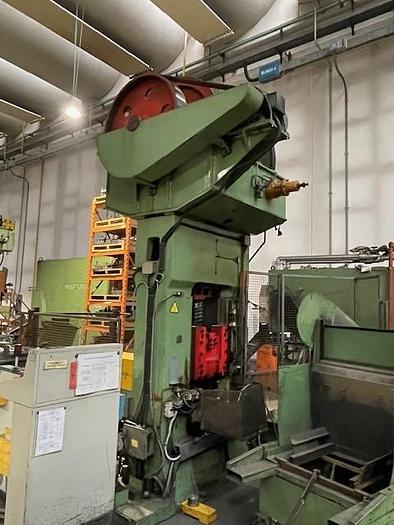

360 tons Press Friction Screw Dellavia

Capacity : 360 tons,

Max. force : 580 tons,

Screw dia. : 180 mm,

Die height : 350 tons,

Ram stroke : 350 mm,

Max energy : 1650 Kgm,

Dimension of the table :

Left to right : 440 mm,

Back to front : 550 mm,

Power main motors : 18.5 kW,

Weight : 11.3 tons.

Qty : 3 Nos.

Pneumatic bottom ejector available.

Automation and gas furnace are non included.

 Technical manuals available in Italian
