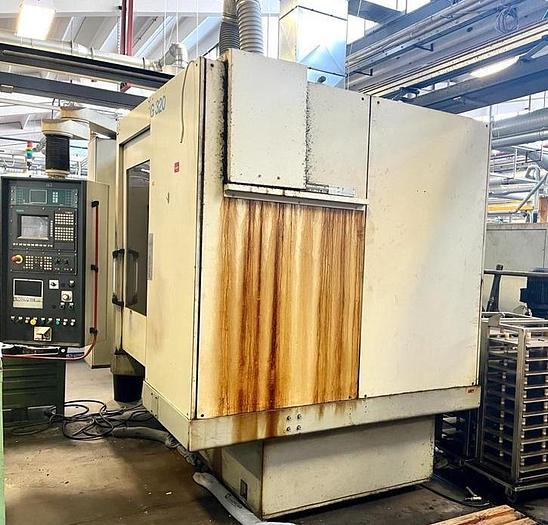

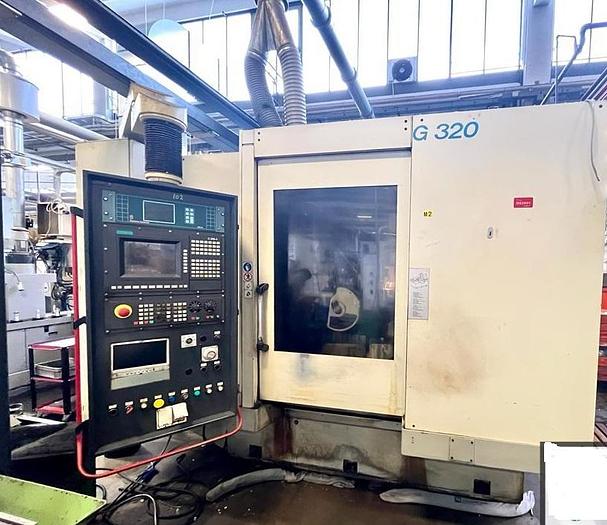

Gear Grinder CNC Gleason Pfauter G320
Specifications
Manufacturer | Gleason Pfauter |
Model | G320 |
Year | 1998 |
Condition | Used |
Stock Number | MA2574 |
Item condition | Good working, excellent condition |
Capacity tons | 0 |
Description
8-axis-cnc-gear-grinder
Gear diameter: 10 – 380 mm,
Module range: 0,5 – 7,
Number of teeth: 10 – 600,
Radial axis stroke (X-Axis): 230 mm,
Shifting tangential axis stroke (Y-Axis): 135 mm,
Vertical axis stroke (Z-Axis): 200 mm,
Swivel angle clamping head (A-Axis): ±45°,
Dresser tangential axis stroke (V-Axis): 180 mm,
Dresser radial axis stroke (U-Axis): 110 mm,
Grinding accuracy: Class 6,
CNC: Siemens 840C.

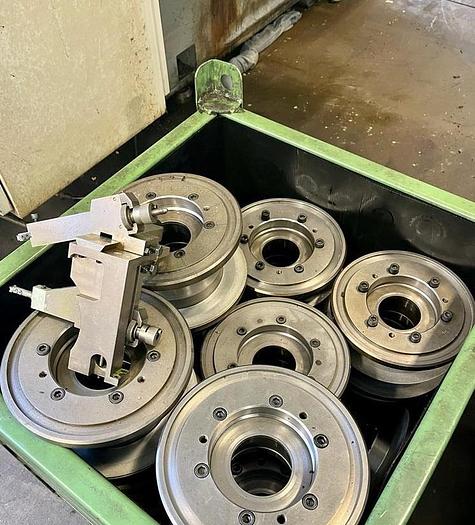

Complete in all its parts and accessories.
