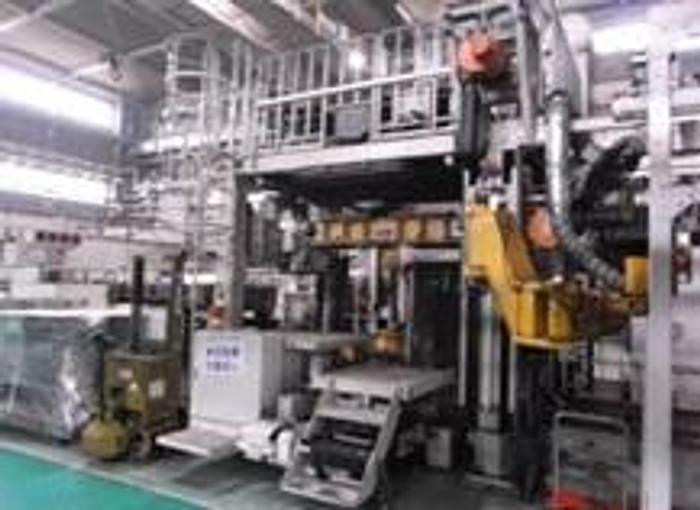

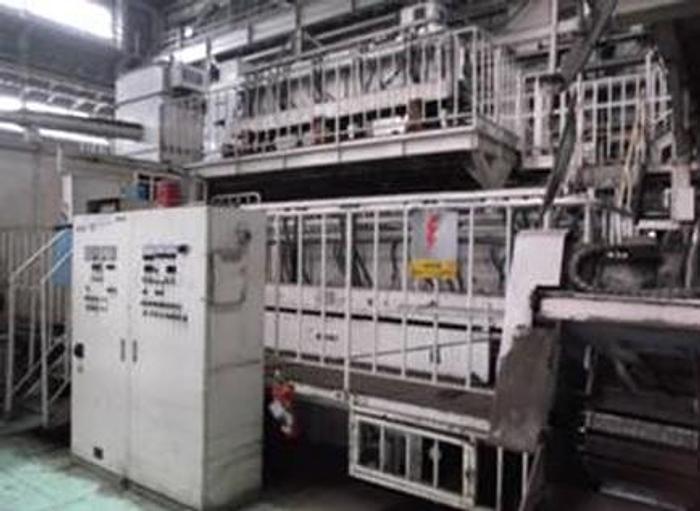

Hot Forging Transfer Press Line Kurimoto C2F-30W

3000 tons Transfer Press + Ancillary

Capacity : 3000 tons,

Stroke : 360 mm,

No of stroke : 60 RPM,

Allowable eccentric load : 3000 tons,

Allowable eccentric distance : 400 mm,

Die height : 1200 mm,

Die height adjustable : 10 mm,

Frame distance : 2400 mm,

Side opening : 1100 mm,

Bolster dimensions : 2000 x 1500 mm,

Adapter dimensions : 1880 x 15000 mm,

Upper ejector :

Pnuematic (2,3,4 sations) : 2 tons x 35 mm,

Pnuematic (5 sations) : 2 tons x 70 mm,

Bottom ejector :

Mechanical (1,2,3,4 sations) : 60 tons,

Stroke (1 Sation) : 150 mm,

Stroke (2,3,4 sations) : 50 mm,

All Sations equipped with a safety limit device

Air compressor : 4.5 kg/cm2,

Main motor : AC 180 KW,

Machine weight : 390 tons,

Lubrication :

1 - Lubrication circulation for mechanical parts

2 - Grease for bottom bed

Utility :

Electricity : 3000 v, 270 KVA / 210 V, 130 KVA,

Water 3 kg/cm2 : 100 L/min,

Air consumption 4.5 kg/cm2 : 1000 L/min.

Auto transfer system

Type : TES-30,

No. of station: 5 sations,

Advanced stroke : 400 mm,

Clamping stroke (One side): 130 mm,

Lift stroke : 70 mm,

Direction : Left to Right,

Cycle time : Max. 22 stroke per min,

Type of operation : Servo,

Transfer finger : 2 Set

Final Gear (1 set)

Bevel Gear (1 set),

Middle feed bar : 2 set,

Anti-miss grip device : 1 EA

Billet Heater :

Yom : 1996

Type : Mitsui E&S Holdings ELPHIAC

1100 kW x 2000 Hz,

Power supply : 3 - Phase x 60 Hz x 6600 V,

Heating Temp. : 1250±30℃,

Material Dia : φ60～φ80,

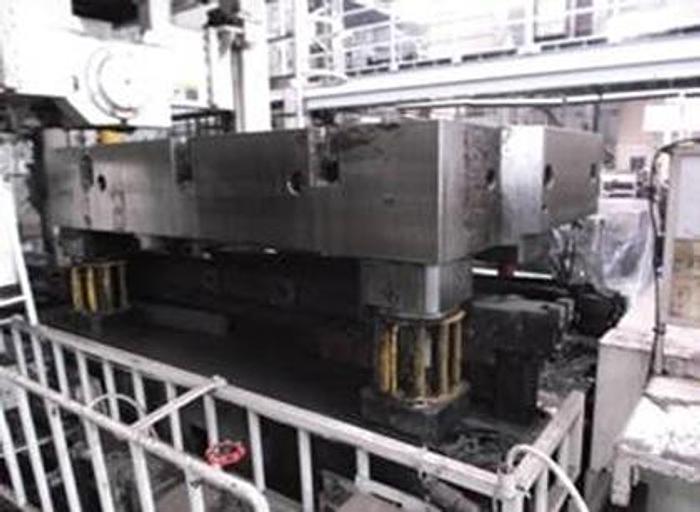

Die holder

Yom : 1997

Type : Kusunoki C2F-30W Round type

5 type of process

Outside dimension at assembly : 2200 × 1550 × 1200 (H)

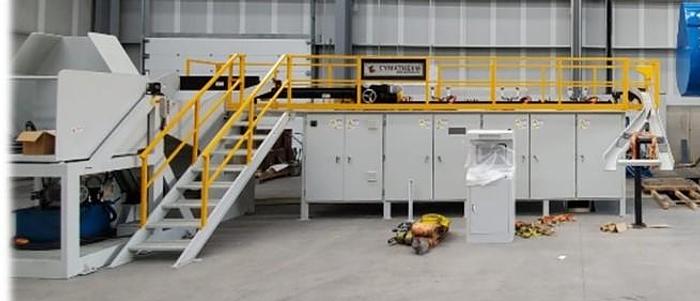

1200 kW Induction heating system (YOM 2018), never used.

CADDY 80 shearing machine (YOM overhauled by FICEP in 2016)
