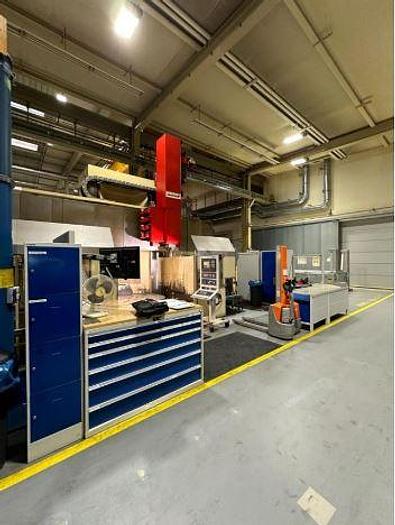

Lathe Vertical Turning CNC Schiess 20DSC160

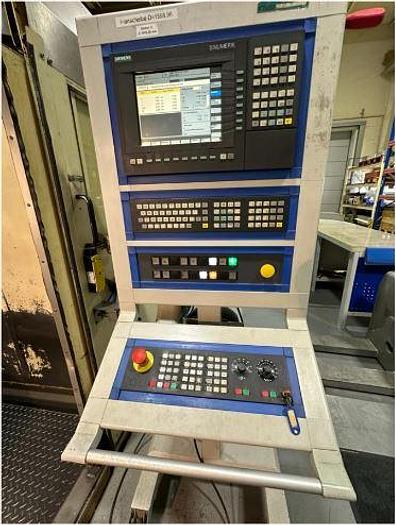

CNC-Control : SIEMENS Sinumerik 840D,

Max. Turning diameter : 2000 mm,

Max. Turning height : 2000 mm,

Table dia. : 1600 mm,

Max. Table load : 11.2 tons,

Power : 71 kW,

Support Travel on Crossrail left and right : 1170 mm,

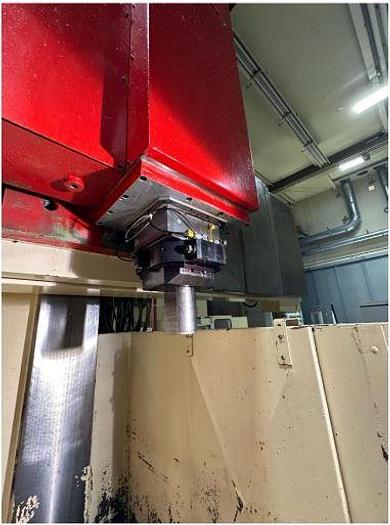

Ram travel : 1400 mm,

Ram size : 250 x 210 mm,

Speed – face plate 2 steps : 2.5-315 min-1,

Feed

X and Z : 0.1   2000 mm/min,

Fast traverse X and Z : 6000 mm/min

Connected load : 90 kW,

Voltage : 50 Hz  400 V,

Machine Weight : 22 tons,

Dimensions L/W/H : 10000 x 6000 x 5800 mm.

- Ram and support has hydrostatic guidance

Accessories

- 2 chip conveyors left and right

- machine covering

- coolant system incl. Coolant tank and pump

- 2 toolchanger left for turing right for milling and bohring
