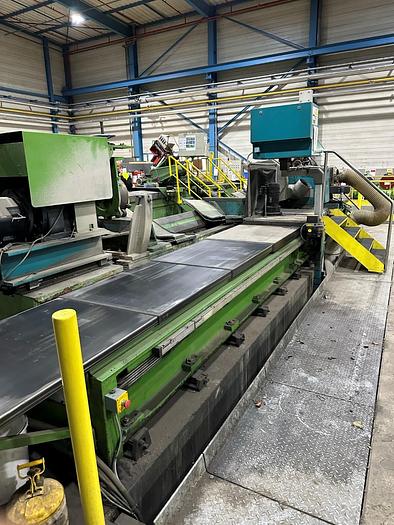

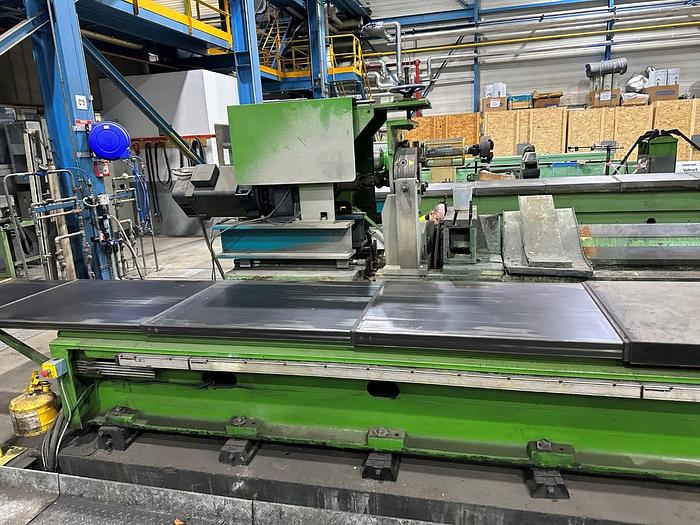

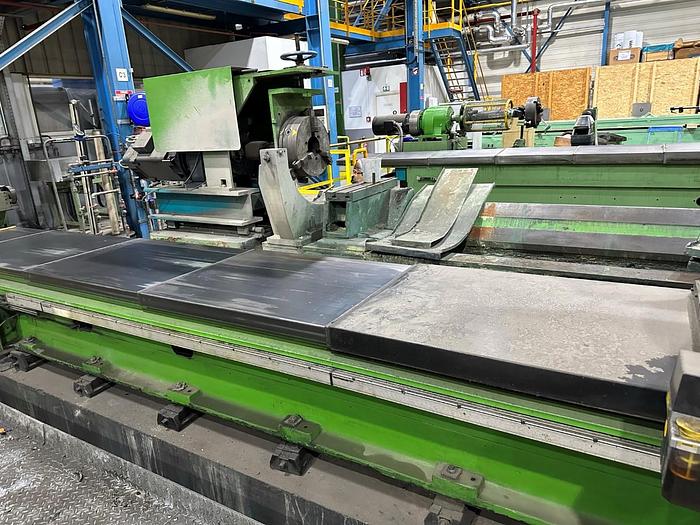

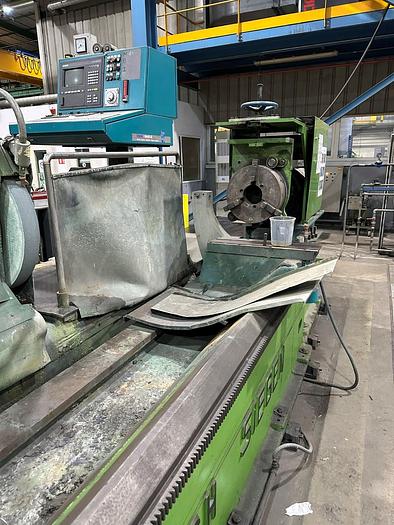

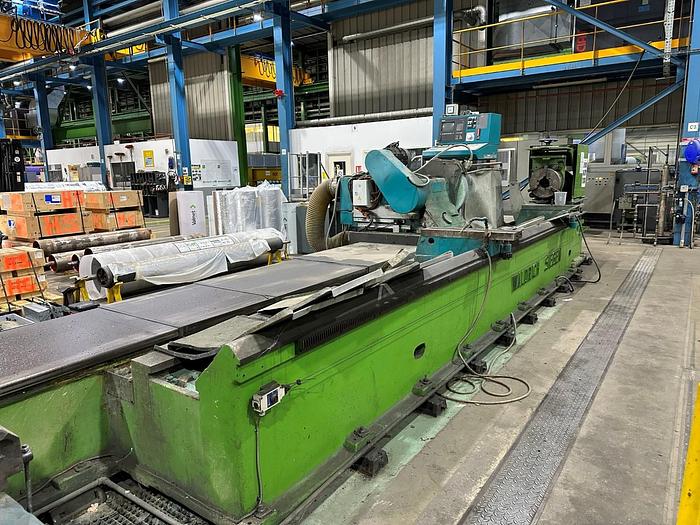

Grinder Roll CNC Waldrich Siegen

CNC Roll Grinder

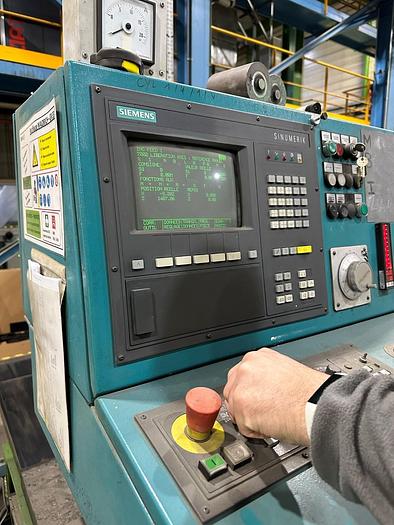

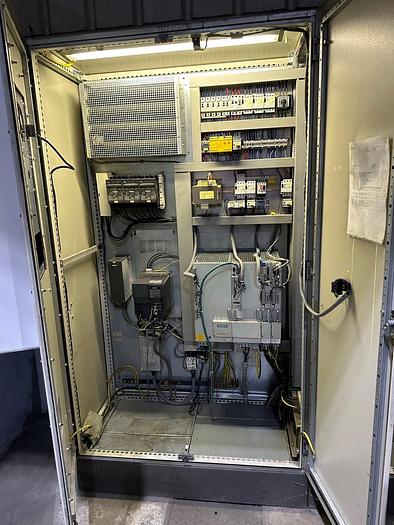

Control : Siemens 810,

Roll sizes : 1000 x 5260 mm,

Grinding Dia : 1000 mm,

Min. grinding dia : 400 mm,

Max. Grinding Length : 5200 mm,

Min. grinding length : 1000 mm,

Max. Roll weight : 16 tons,

Standard Grinding Wheel size : 600 x 80 x 305 mm,

Main spindle : Direct drive,

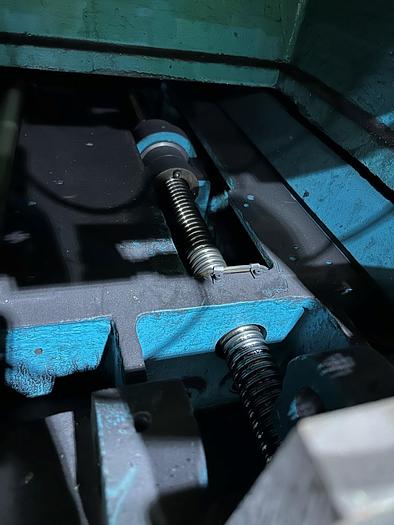

X-axis : Ballscrew with linear scale,

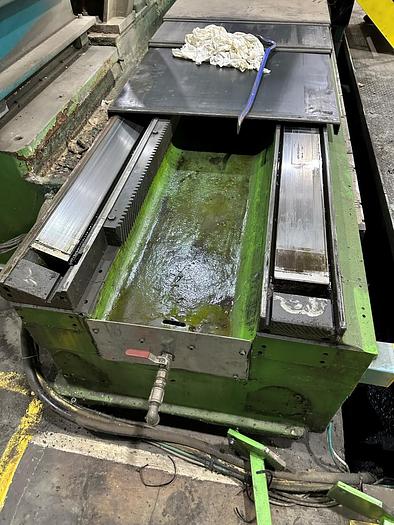

Z-axis : Rack & Pinion with linear scale,

X-axis travel : 500 mm,

Z-axis travel : 6000 mm,

Center height : 550 mm.

It’s in as imported condition, not underpower.
