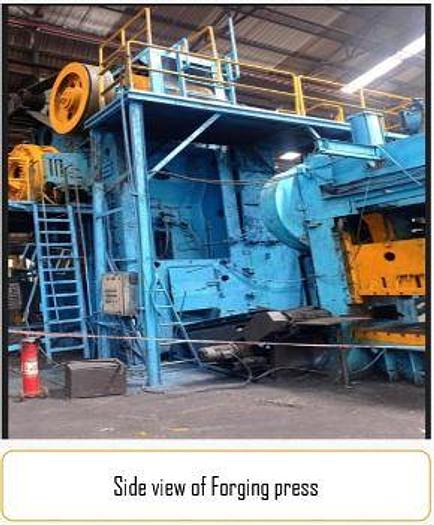

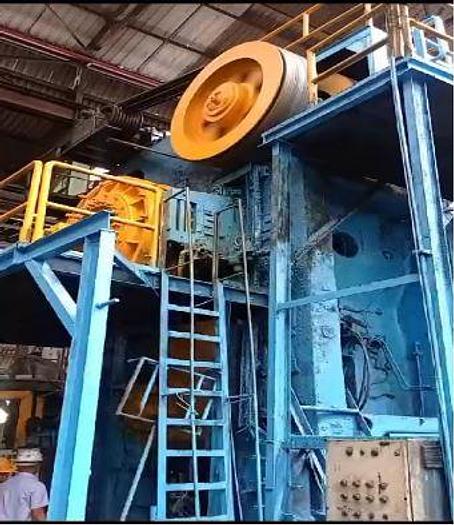

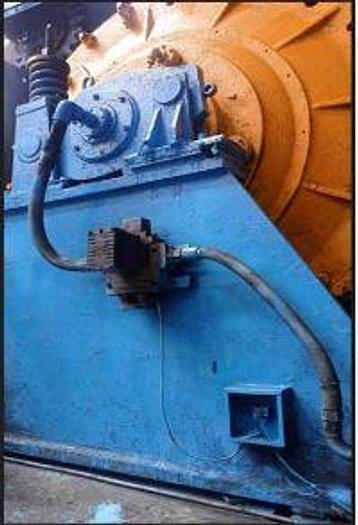

Press Hot Forging Smeral LZK4000B

Capacity : 4000 tons,

Rated forging power : 40 MN,

Ram stroke : 380 mm,

Max. Number of strokes : 60/min,

Allowed number of single strokes : 20/min.,

Ram adjustment : 15 mm,

Max. distance between bed and ram : 1380 mm,

Distance between bed and ram at its lower position, including upward adjustment of ram : 100 mm,

Table dimensions : 1520 x 1600 mm,

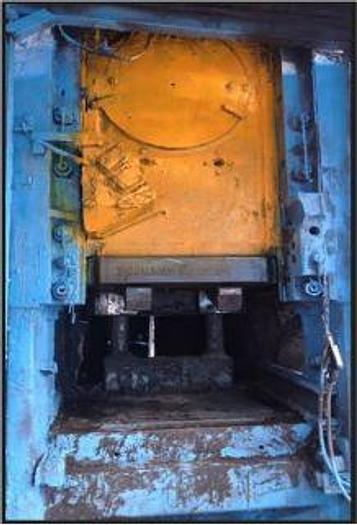

Ram dimensions : 1470 x 1400 mm,

Stroke of upper ejector : 50 mm,

Stroke of lower ejector : 80 mm,

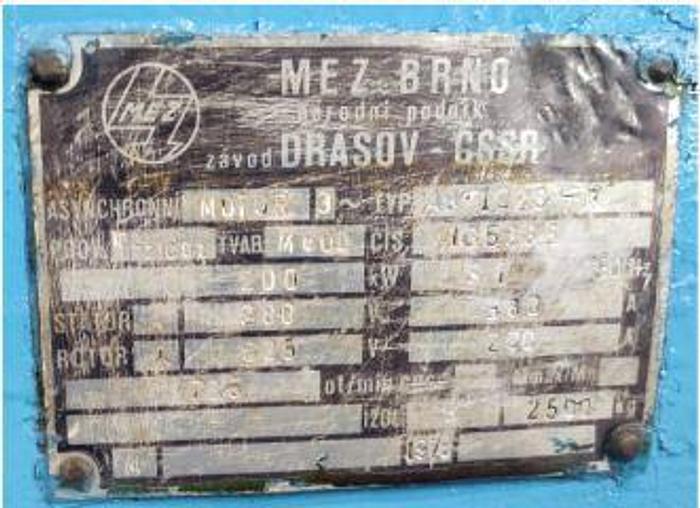

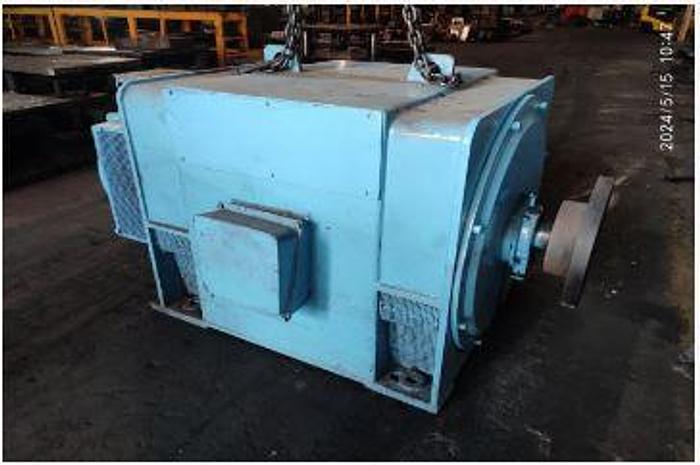

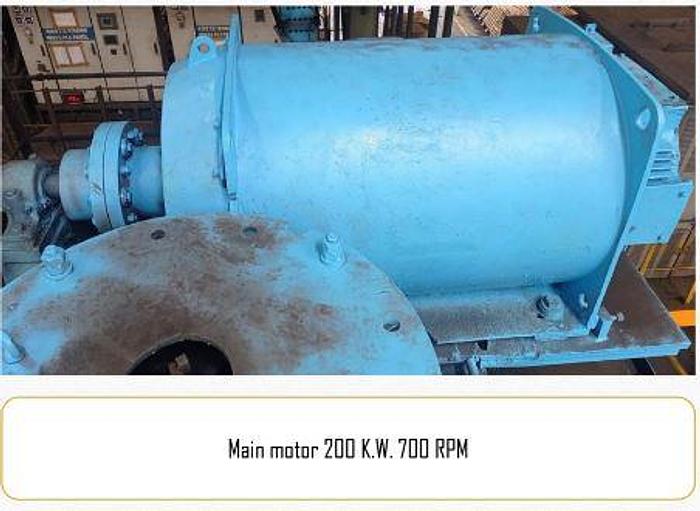

Motor Power : 200 KW,

Number of revolutions of electrical motor : 740 rpm,

Weight : 250 tons.

Working air pressure, control balancing : 0.55 MPa,

Lateral clearance : 1.25 mm,

Launching : Good functioning,

Operation : Silent,

Lubrication : O.K.,

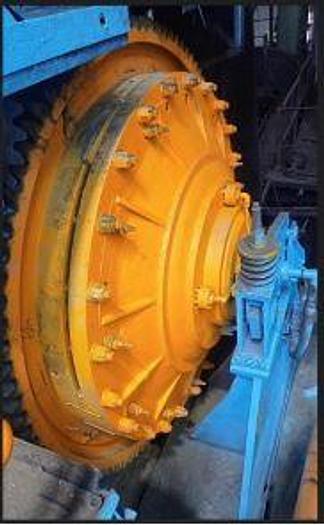

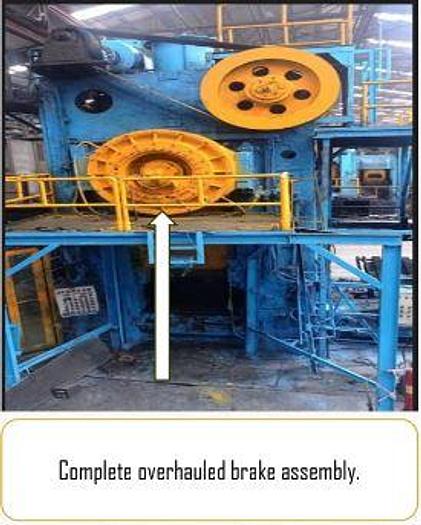

Clutch-break : Good functioning,

Parallelism of bed plate : Allowed deviation - 0.08/1000, Measured- 0.06/1000,

Planeness of bed plate : Allowed deviation - 0.08/1000, Measured- 0.06/1000,
