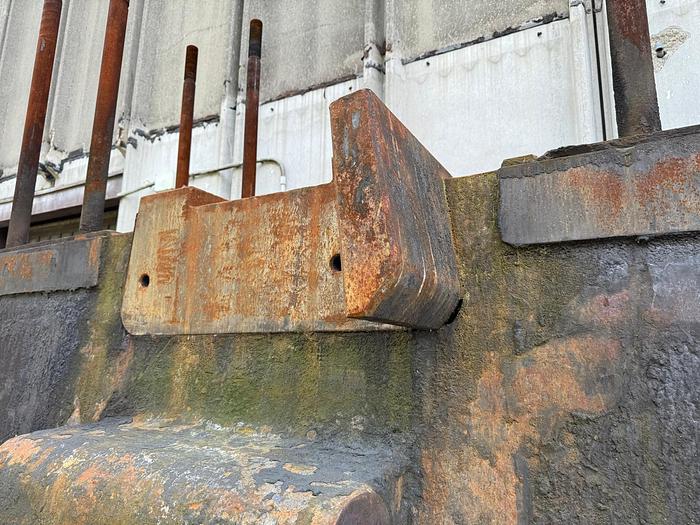

Hammer Forging Pneumatic Pensotti

Capacity : 4 tons,

Blow energy : 12000 mkg,

Weight of the mallest alone plus shaft (excl. mould) : 4000 kg,

Weight of the club with shaft plus mass, mold : 5250 kg,

Effective power of maximum blow : 12000 Kgmt.

Total weight : 1130 GI,

Overall dimensions:

in front of : 3200 mm,

next to : 2100 mm,

in height : 5850 mm,

Mazza :

Weight : 3300 Kg,

Dimensions at the base right : 850 x 800 mm,

Race : 1300 mm,

Maximum mold dimensions : 720 x 900 mm,

Maximum weight of the upper mold : 1250 Kg,

Minimum total height of the two molds : 450 mm,

Plan dimensions of the hxi mold holder : 770 x 900 mm,

Rod diameter : 190 mm,

Total length of the rod : 2900 mm,

Free space required above the cylinder : 2600 mm,

Dimensions of the support base : 3200 x 1800 mm,

Weight : 800 Q II,

Normal intake air consumption : 20 m3/min

Flow rate of the intake air compressor : 1500 m2/h,

Tank Capacity : 36 m3.

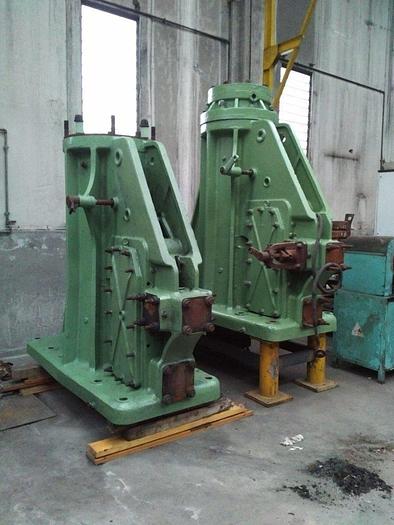

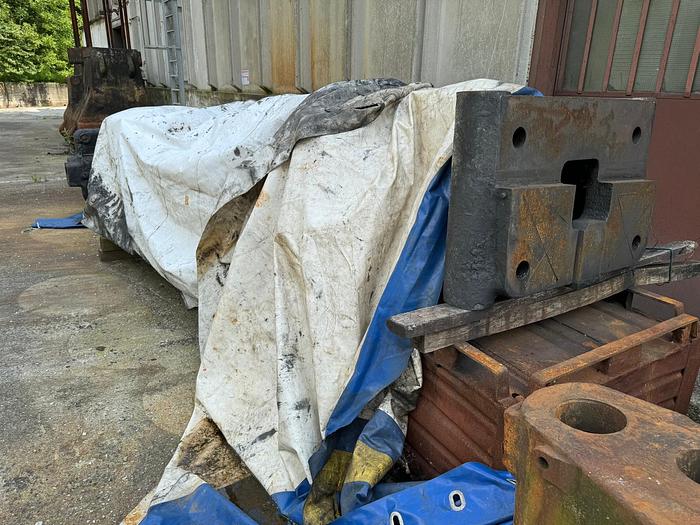

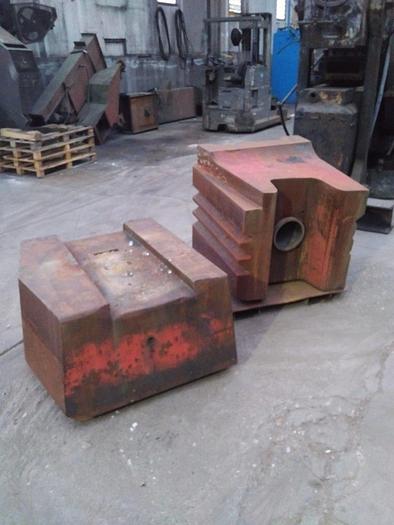

All major components are available, plus spares such as

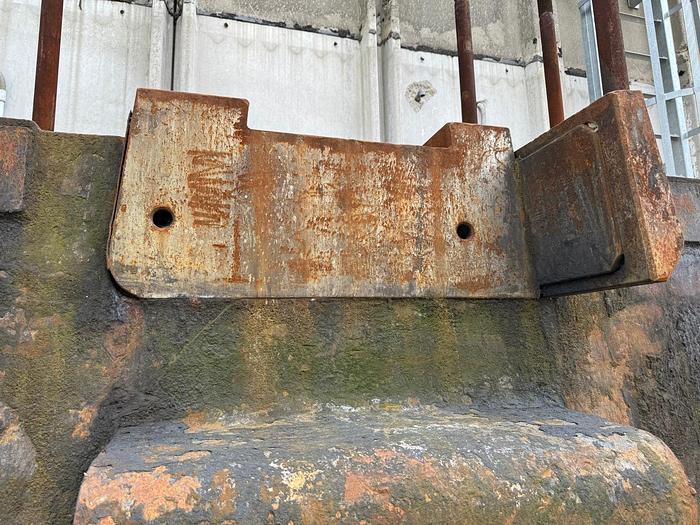

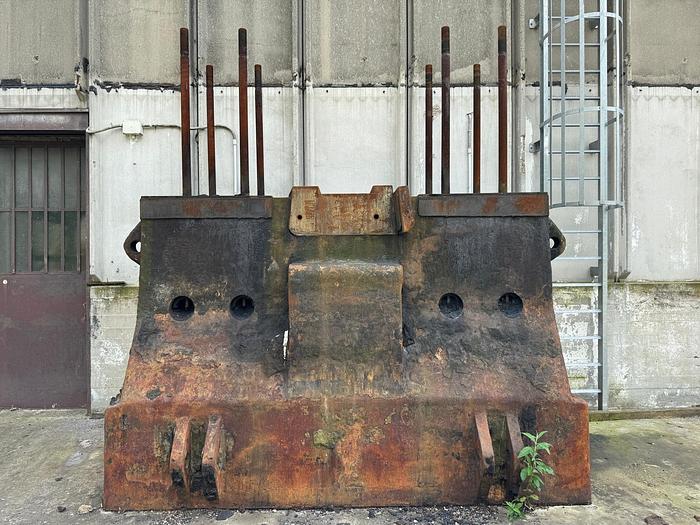

- sow block

- ⁠ram

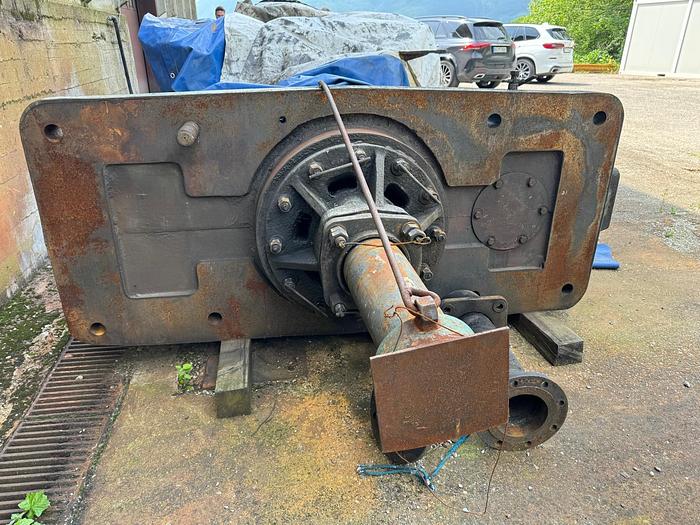

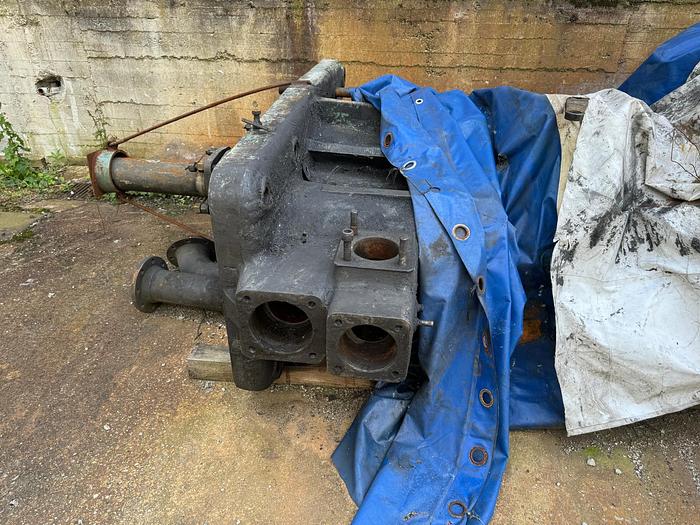

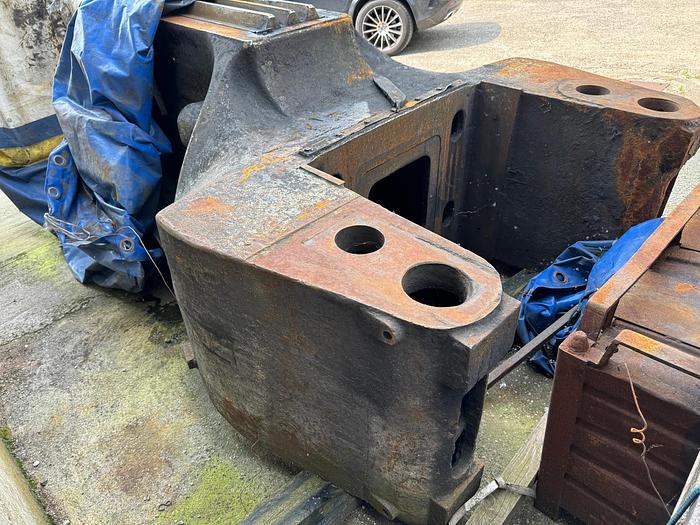

- ⁠2 head parts

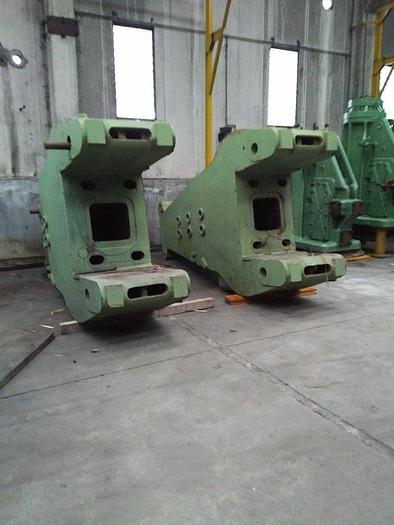

- ⁠1 set of columns

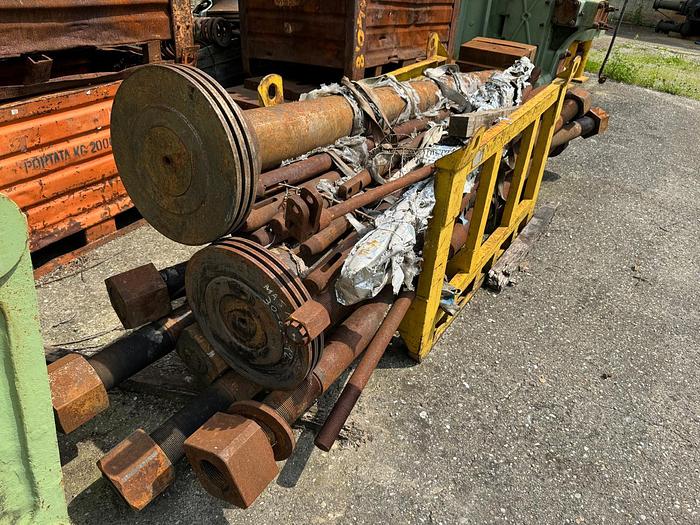

- ⁠1 piston rod

Drawing available
